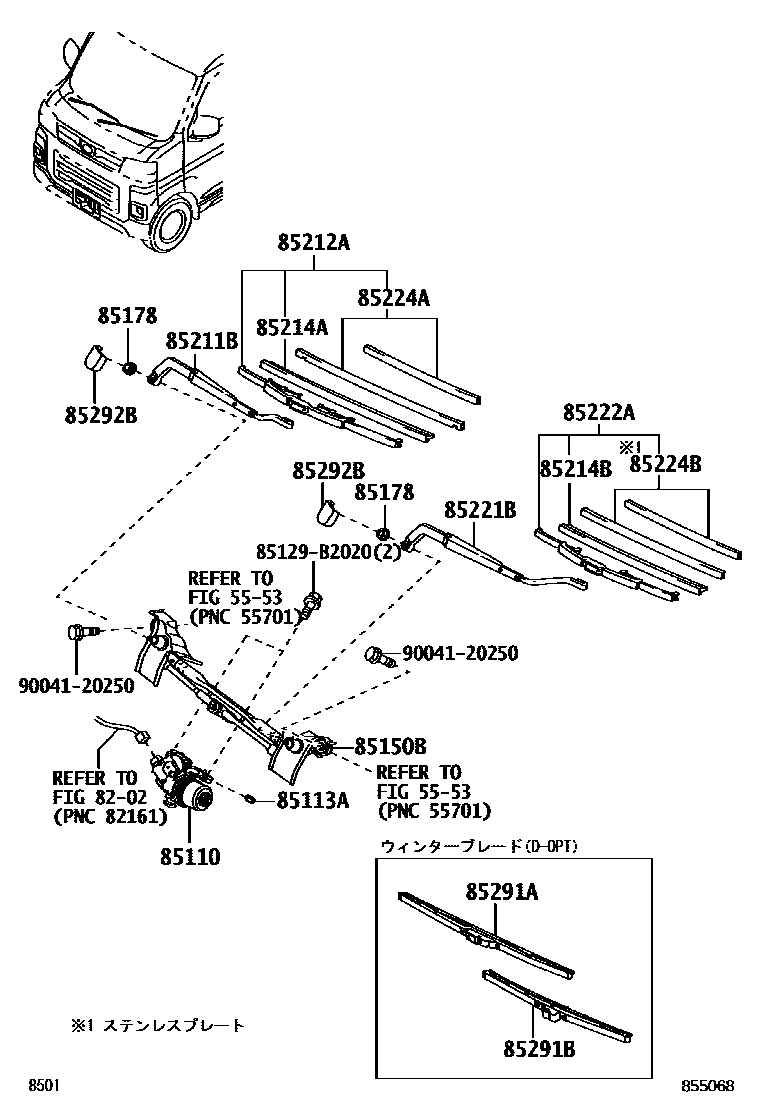

WINDSHIELD WIPER

5553

8202

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B5010iS700202112

main85110-B5070iS710202112

85113ANUT, FR WIPER

main85113-B2010iS700,710202112

85150BLINK ASSY, WIPER

main85150-B5080iS700202112

main85150-B5090iS710202112

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iS700,710202112-202202

main90041-79379iS700,710202203

85211BARM, FRONT WIPER, RH

main85211-B5050iS700,710202112

85212ABLADE, FR WIPER, RH

main85212-B5020iS700,710202112

85214ARUBBER, WIPER, RH

main85214-B5020iS700,710202112

85214BRUBBER, WIPER, LH

main85221-97401iS700,710202112

85221BARM, FRONT WIPER, LH

main85221-B5040iS700,710202112

85222ABLADE, FR WIPER, LH

main85222-B5030iS700,710202112

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-B5010iS700,710202112

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-B5020iS700,710202112

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020iS700,710202112

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

9004120250

main90041-20250

19 parts on this diagram · 1 diagram in section
