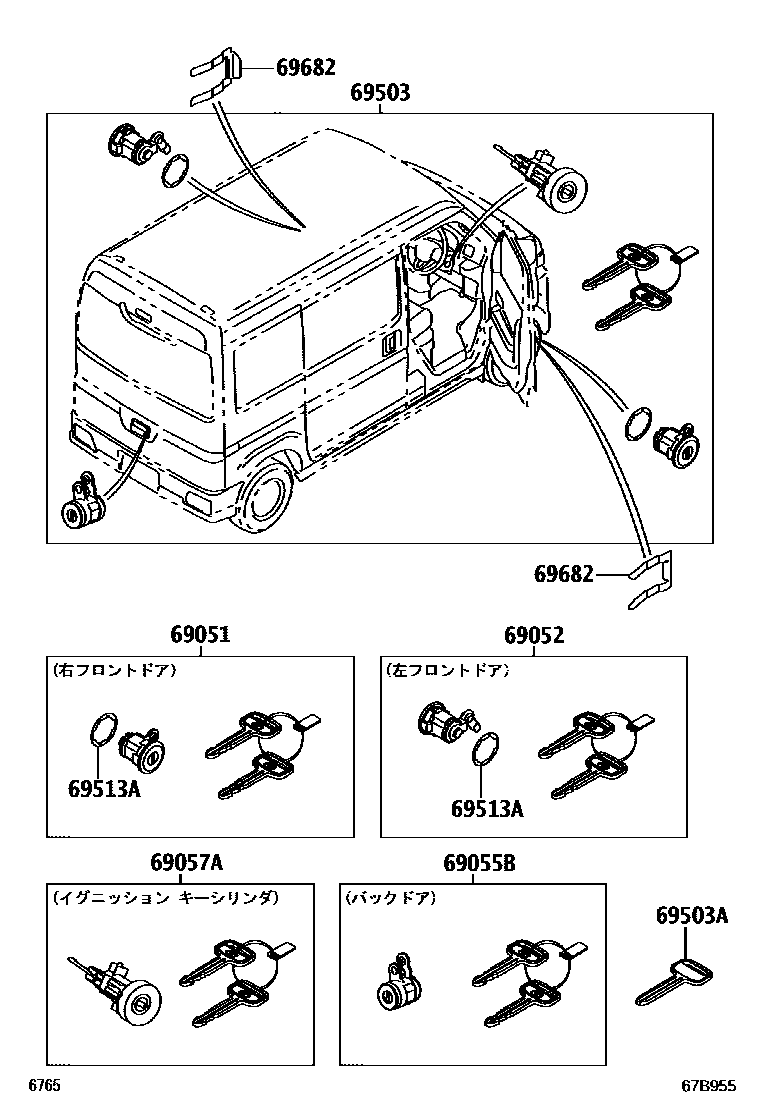

LOCK CYLINDER SET

0001 1��������� 0002 1���� 0003 1�����

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-B5170iS700,710..5F..CR;S700,710..DLX,SPL202112

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-B5170iS700,710..SPL202112

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-B5180iS700,710..SPL202112

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-B5170iS700,710..5F..CR;S700,710..DLX,SPL202112

69503CYLINDER SET, LOCK

main69005-B5670iS700,710..SPL202112

main69005-B5700iS700,710..CVT..DLX;S700,710..5F..(CR,DLX)202112

main69005-B5710iS700,710..CVT..CR202112

69503AKEY, BLANK

main69516-B5010iS700,710..5F..CR;S700,710..DLX,SPL202112

69513APAD, DOOR CYLINDER

main69513-87201iS700,710..CVT..DLX;S700,710..5F..(CR,DLX)202112

69682RETAINER, LOCK CYLINDER

main69682-B2050iS700,710..CR,DLX202112

8 parts on this diagram · 3 diagrams in section
