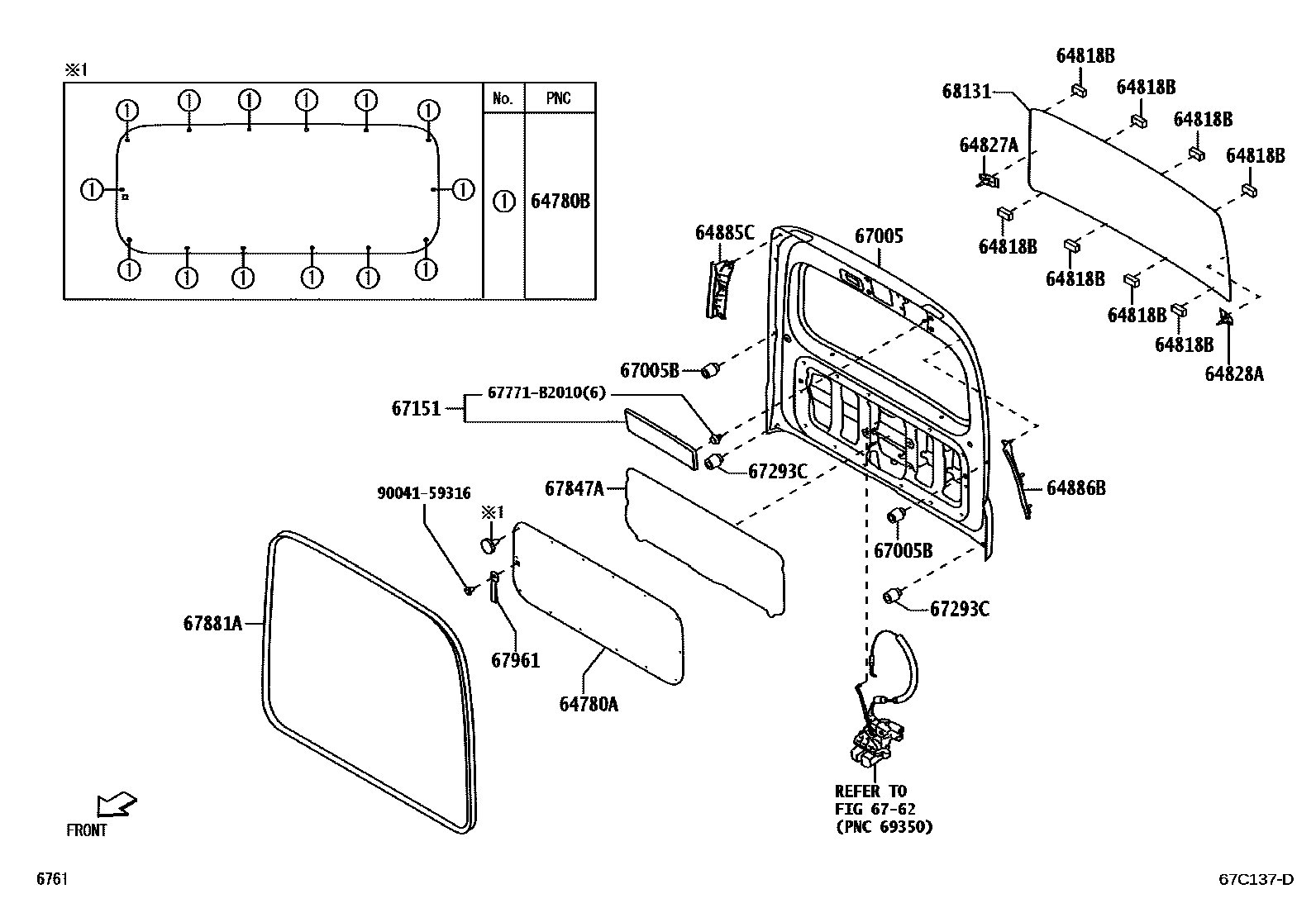

BACK DOOR PANEL & GLASS

64780APANEL ASSY, BACK DOOR TRIM

main64780-B5060-B0iS700,710202112

GRAY,TRIM1#

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90044-67609-C0×14iS700,710202112

BLACK,TRIM1#

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-B2010×8iS700,710202112

64827ACLIP, BACK WINDOW GLASS, RH

main64827-B5010iS700,710202112

64828ACLIP, BACK WINDOW GLASS, LH

main64828-B5010iS700,710202112

64885CCHANNEL, BACK DOOR GLASS, RH

main64885-B5020iS700,710202112

64886BCHANNEL, BACK DOOR GLASS, LH

main64886-B5010iS700,710202112

67005PANEL SUB-ASSY, BACK DOOR

main67005-B5220iS700,710202112

main67005-B5270iS700,710..CVT..(CR,DLX)202112

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41263×2iS700,710202112

67151COVER, TAIL GATE INNER

main64796-B5010-B0iS700,710202112

LT.GRAY,TRIM1#

67293CCUSHION, BACK DOOR STOPPER

main90045-41263×2iS700,710202112

6762

67847ACOVER, BACK DOOR SERVICE HOLE

main67847-B5050iS700,710202112

67881AWEATHERSTRIP, BACK DOOR

main67881-B5110iS700,710..DLX,SPL202112

main67881-B5120iS700,710..CR202112

67961STRAP, BACK DOOR PULL

main67908-97502-C0iS700,710202112

BLACK,TRIM1#

68131GLASS, BACK DOOR

main68105-B5050supersedes 68105-B5040iS700,710..CR,DLX202112

67771B2010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-B2010

9004159316

main90041-59316

18 parts on this diagram · 1 diagram in section
