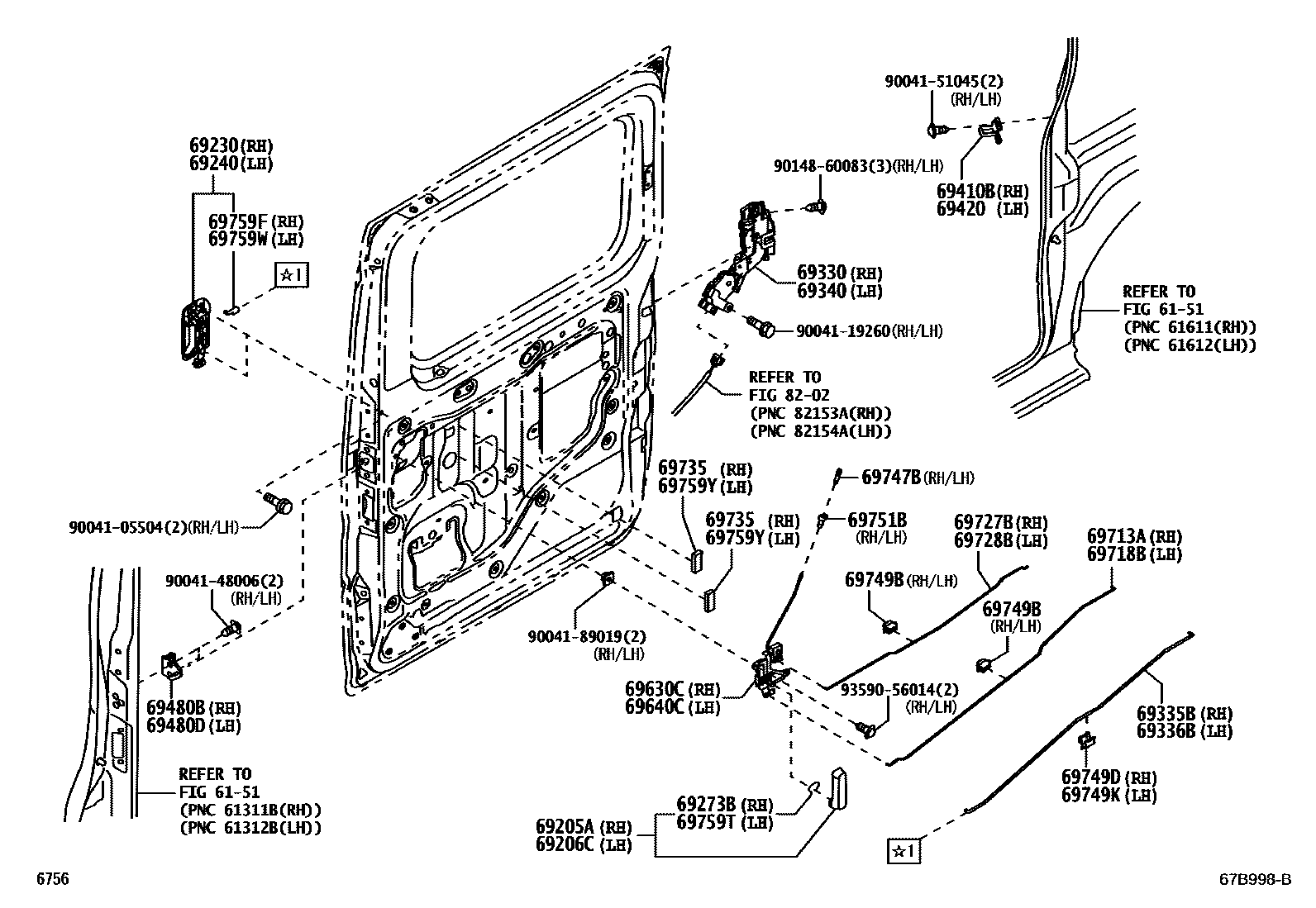

REAR DOOR LOCK & HANDLE

0001 1 0002 1������������,�����������

6151

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69272-87505-C0iS700,710..5F..CR;S700,710..DLX,SPL202112

BLACK,TRIM1#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69272-87505-C0iS700,710..5F..CR;S700,710..DLX,SPL202112

BLACK,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-B5070iS700,710202112

main69230-B5080-A0iS700,710..CR202112

main69230-B5080-B0iS700,710..CVT..DLX..PS1202112

main69230-B5080-C0iS700,710..CVT..DLX202112

main69230-B5080-D0iS700,710..CVT..DLX202112

main69230-B5080-G1iS700,710..CVT..DLX202112

main69230-B5090-A0iS700,710..CVT..CR..PS1202112

main69230-B5090-A1iS700,710..CVT..CR202112

main69230-B5090-B0iS700,710..CVT..CR..PS1202112

main69230-B5090-C0iS700,710..CVT..CR202112

main69230-B5090-D0iS700,710..CVT..CR202112

main69230-B5090-G1iS700,710..CVT..CR202112

main69230-B5140iS700,710..CVT..CR202112

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-B5040iS700,710202112

main69240-B5050-A0iS700,710..CR202112

main69240-B5050-B0iS700,710..CVT..DLX..PS1202112

main69240-B5050-C0iS700,710..CVT..DLX202112

main69240-B5050-D0iS700,710..CVT..DLX202112

main69240-B5050-G1iS700,710..CVT..DLX202112

main69240-B5060-A0iS700,710..CVT..CR..PS1202112

main69240-B5060-A1iS700,710..CVT..CR202112

main69240-B5060-B0iS700,710..CVT..CR..PS1202112

main69240-B5060-C0iS700,710..CVT..CR202112

main69240-B5060-D0iS700,710..CVT..CR202112

main69240-B5060-G1iS700,710..CVT..CR202112

main69240-B5070iS700,710..CVT..CR202112

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69279-B5010iS700,710..5F..CR;S700,710..DLX,SPL202112

69330LOCK ASSY, REAR DOOR, RH

main69330-B5070iS700,710..5F..CR;S700,710..DLX,SPL202112

main69200-B5020supersedes 69200-B5010iS700,710..CVT..CR202112

69335BLINK, SLIDE DOOR OUTSIDE LOCKING, RH

main69335-B5020iS700,710..5F..CR;S700,710..DLX,SPL202112

69336BLINK, SLIDE DOOR OUTSIDE LOCKING, LH

main69336-B5020iS700,710..5F..CR;S700,710..DLX,SPL202112

69340LOCK ASSY, REAR DOOR, LH

main69340-B5080iS700,710..5F..CR;S700,710..DLX,SPL202112

main69300-B5030supersedes 69300-B5020iS700,710..CVT..CR202112

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69440-97501iS700,710..5F..CR;S700,710..DLX,SPL202112

main69470-B5010iS700,710..CVT..DLX202112

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69440-97501iS700,710..5F..CR;S700,710..DLX,SPL202112

main69470-B5010iS700,710..CVT..DLX202112

69480BHOOK ASSY, SLIDE DOOR FRONT LOCK

main69481-B5010iS700,710202112

69480DHOOK ASSY, SLIDE DOOR FRONT LOCK

main69481-B5010iS700,710202112

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-B5070iS700,710..5F..CR;S700,710..DLX,SPL202112

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-B5100iS700,710..5F..CR;S700,710..DLX,SPL202112

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-B5030iS700,710..5F..CR;S700,710..DLX,SPL202112

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-B5030iS700,710..5F..CR;S700,710..DLX,SPL202112

69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH

main69727-B5020iS700,710..5F..CR;S700,710..DLX,SPL202112

69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH

main69728-B5020iS700,710..5F..CR;S700,710..DLX,SPL202112

69735SILENCER, REAR DOOR LOCK LINK

main69759-B2050iS700,710..CVT..DLX202112

main69759-B5040×2iS700,710..5F..CR;S700,710..DLX,SPL202112

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69743-B5010-C0×2iS700,710..5F..CR;S700,710..DLX,SPL202112

BLACK,TRIM1#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040×4iS700,710..CVT..DLX202112

main69749-87702×4iS700,710..5F..CR;S700,710..DLX,SPL202112

69749DCLAMP, SLIDE DOOR LOCK LINK

main69749-B5010iS700,710202112

69749KCLAMP, REAR DOOR LOCK

main69749-B5010iS700,710202112

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-87502-C1×2iS700,710..5F..CR;S700,710..DLX,SPL202112

BLACK,TRIM1#

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-B5010iS700,710202112

69759TSNAP, REAR DOOR INSIDE HANDLE

main69279-B5010iS700,710..5F..CR;S700,710..DLX,SPL202112

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-B5010iS700,710202112

69759YSILENCER, REAR DOOR LOCK LINK

main69759-B2050iS700,710..CVT..DLX202112

main69759-B5040×2iS700,710..5F..CR;S700,710..DLX,SPL202112

8202

9004105504

main90041-05504

9004119260

main90041-19260

9004148006

main90041-48006

9004151045

main90041-51045

9004189019

main90041-89019

9014860083

main90148-60083

9359056014

main93590-56014

38 parts on this diagram · 2 diagrams in section
