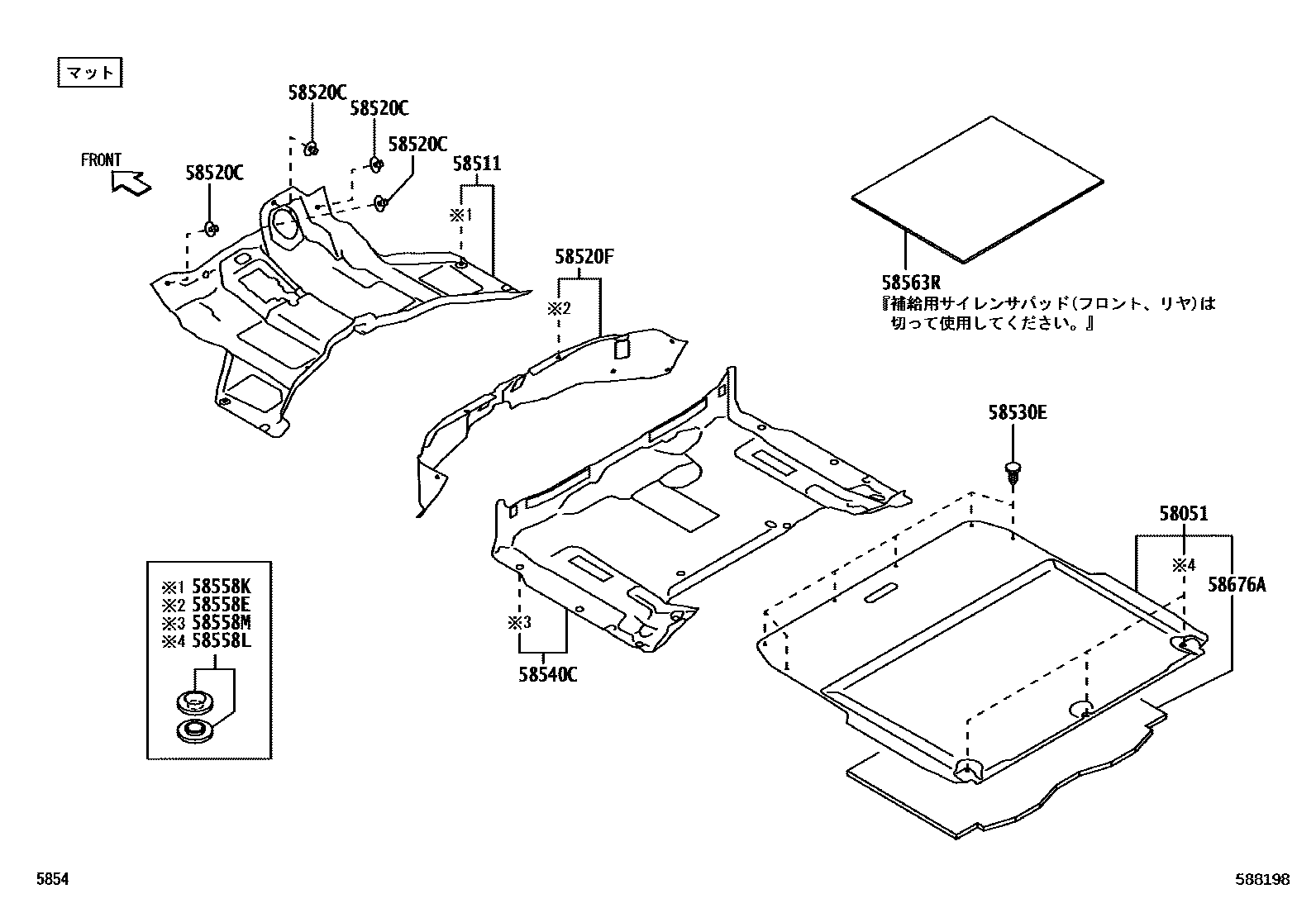

FLOOR MAT & SILENCER PAD

0001 1��� 0002 1������

58051MAT SET, FLOOR

main58051-B5260-B0iS700,710..DLX,SPL202112

BLACK,TRIM1#

main58051-B5370-B1iS700,710..CR202112

BLACK,TRIM1#

58511MAT, FLOOR, FRONT

main58510-B5240-B0iS700,710..SPL202112

BLACK,TRIM1#

main58510-B5250-B0iS700,710..DLX202112

BLACK,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90044-68234-C0×4iS700,710..DLX,SPL202112

BLACK,TRIM1#

58520FMAT ASSY, ENGINE COVER

main58520-B5080-B0iS700,710..SPL202112-202403

BLACK,TRIM1#

main58520-B5081-B0iS700,710..SPL202404

BLACK,TRIM1#

main58520-B5090-B0iS700,710..DLX202112-202403

BLACK,TRIM1#

main58520-B5091-B0iS700,710..DLX202404

BLACK,TRIM1#

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90044-68028-C1×6iS700,710202112

BLACK,TRIM1#

58540CMAT ASSY, FLOOR, REAR

main58540-B5350-B0iS700,710..DLX,SPL202112

BLACK,TRIM1#

main58540-B5410-B0iS700,710..CVT..DLX202112

58558EFASTENER, PILE

main58558-87501-C0×4iS700,710..SPL202112

BLACK,TRIM1#

58558KFASTENER, PILE

main58558-87501-C0×4iS700,710..SPL202112

BLACK,TRIM1#

58558LFASTENER, PILE

main58558-87501-C0×3iS700,710202112

BLACK,TRIM1#

58558MFASTENER, PILE

main58558-87501-C0×2iS700,710..DLX,SPL202112

BLACK,TRIM1#

58563RSILENCER, FRONT FLOOR, NO.3

main58563-B5010iS700,710202112

58676APAD, REAR FLOOR SILENCER

main58579-B5140iS700,710202112

12 parts on this diagram · 2 diagrams in section
