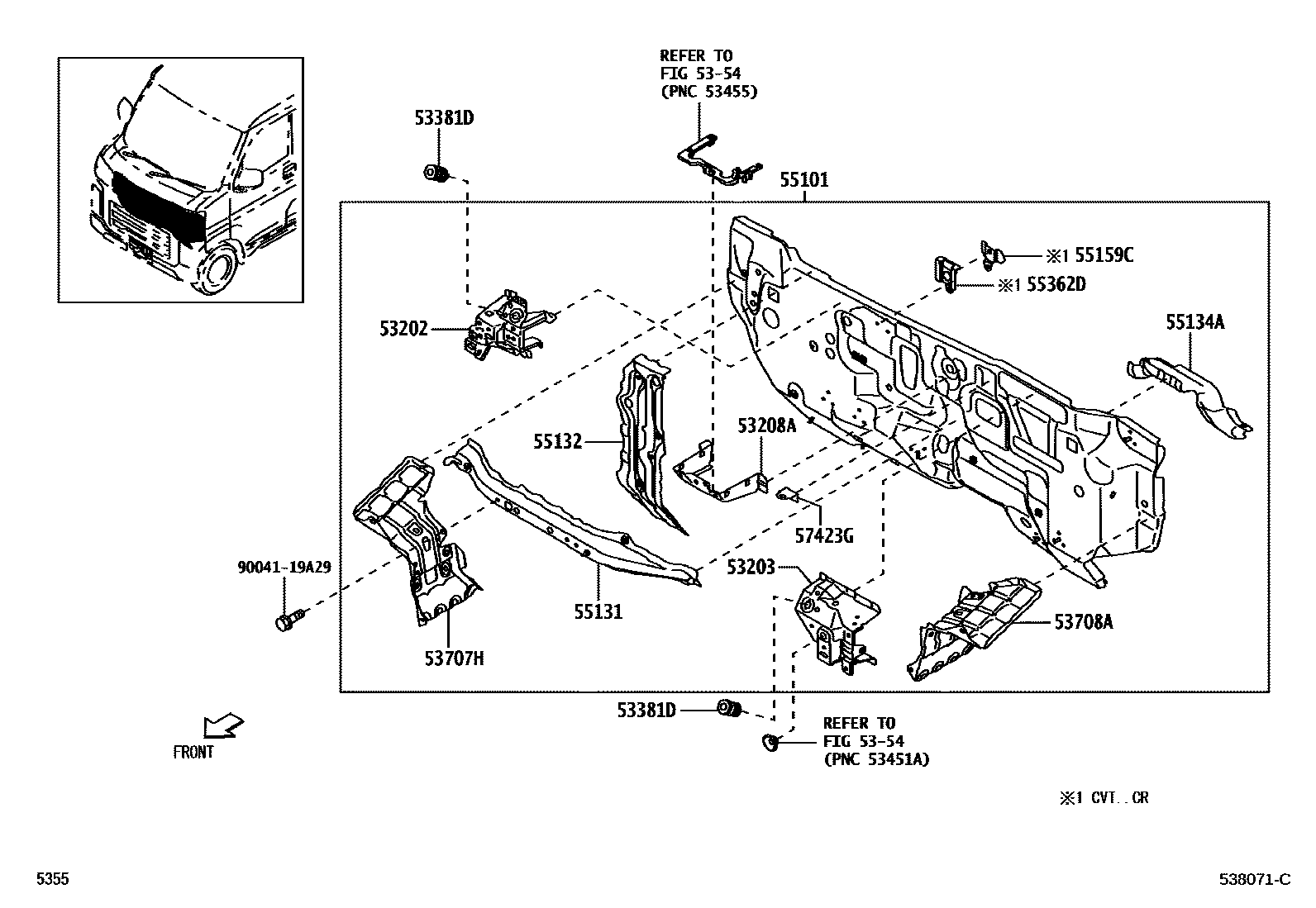

FRONT FENDER APRON & DASH PANEL

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B5020iS700,710202112

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B5020iS700,710202112

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-B5030iS700,710202112

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-B2150iS700,710202112

5354

53707HEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-B5010iS700,710202112

53708AEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT LH

main53708-B5010iS700,710202112

55101PANEL SUB-ASSY, DASH

main55110-B5170iS700,710..5F202112

main55110-B5180iS700,710..CVT..(DLX,SPL)202112

main55110-B5190iS700,710..CVT..CR202112

55131REINFORCEMENT, DASH PANEL

main55103-B5010iS700,710202112-202301

sub55103-B5011

main55103-B5011iS700,710202302

55132REINFORCEMENT, DASH PANEL, NO.2

main55132-B5020iS700,710202112

55134AREINFORCEMENT, DASH TO FLOOR, LH

main55134-B5010iS700,710202112

55159CSTAY, PEDAL BRACKET

main55157-B5010iS700,710..CVT..CR202112

55362DBRACKET, PARKING BRAKE MOUNTING

main55151-B5010iS700,710..CVT..CR202112

57423GCLAMP, FRONT FLOOR

main57423-B5020iS700,710202112

9004119A29

main90041-19A29

15 parts on this diagram · 1 diagram in section
