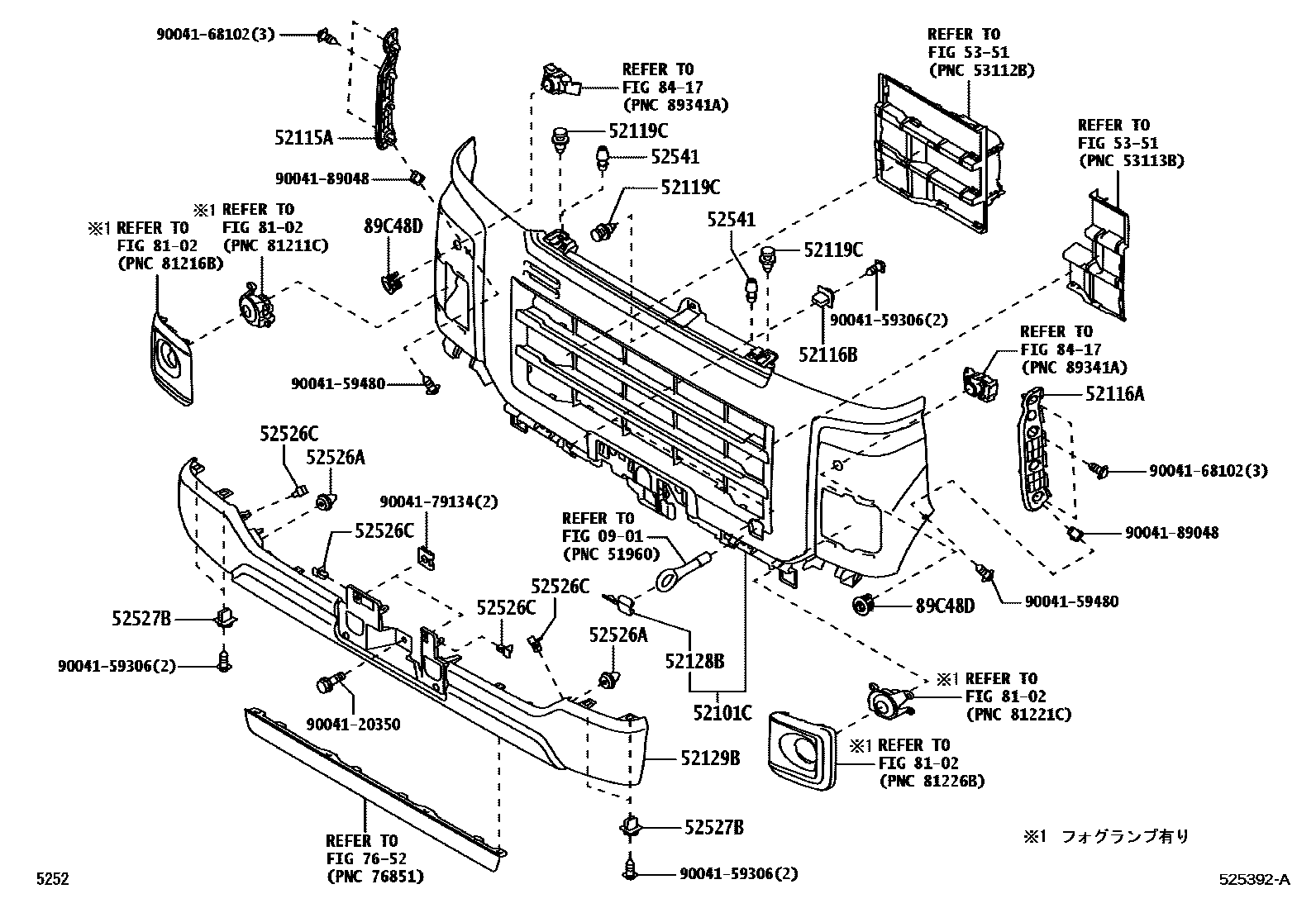

FRONT BUMPER & BUMPER STAY
0901
52101CBUMPER SUB-ASSY, FRONT
WHITE,W19
WHITE PEARL SE.,W25
SILVER ME.,S28
BLACK M.M.,X07
ORANGE ME.,R71
GREEN ME,G62
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52116BRETAINER, FRONT BUMPER
52119CCLIP, FRONT BUMPER COVER
52128BCOVER, FRONT BUMPER HOLE, LH
WHITE,W19
WHITE PEARL SE.,W25
SILVER ME.,S28
BLACK M.M.,X07
ORANGE ME.,R71
GREEN ME,G62
52129BCOVER, FRONT BUMPER, LOWER
WHITE,W19
WHITE PEARL SE.,W25
SILVER ME.,S28
BLACK M.M.,X07
ORANGE ME.,R71
GREEN ME,G62
52526ARETAINER, FRONT BUMPER, LOWER NO.1
52526CRETAINER, FRONT BUMPER, LOWER
52527BRETAINER, FRONT BUMPER, LOWER NO.2
52541PROTECTOR, FRONT BUMPER
5351
7652
8102
8417
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
WHITE,W19
WHITE PEARL SE.,W25
SILVER ME.,S28
BLACK M.M.,X07
ORANGE ME.,R71
GREEN ME,G62
9004120350
main90041-20350
9004159306
main90041-59306
9004159480
main90041-59480
9004168102
main90041-68102
9004179134
main90041-79134
9004189048
main90041-89048
23 parts on this diagram · 1 diagram in section
