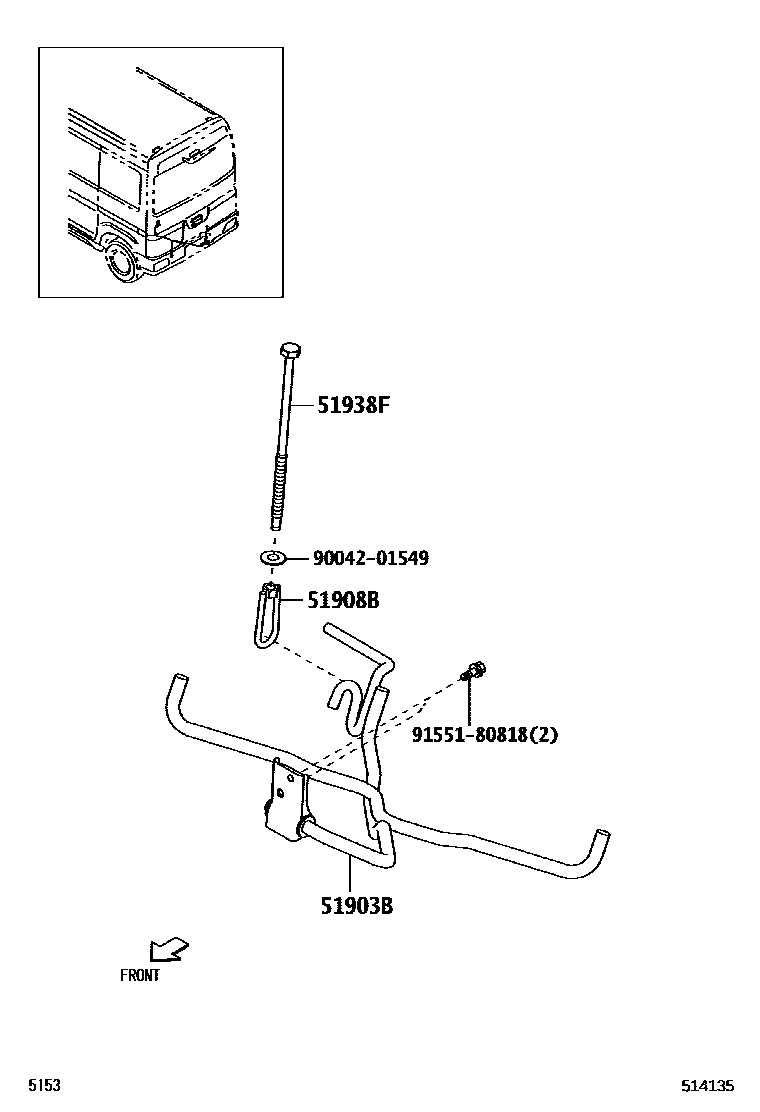

SPARE WHEEL CARRIER

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-B5030iS700,710¥4,180202112-202206

sub51903-B5031¥4,180

main51903-B5031iS700,710¥4,180202207

51908BRETAINER SUB-ASSY, SPARE WHEEL CARRIER LOCK

main51908-B5020iS700,710¥910202112-202206

sub51908-B5021¥910

main51908-B5021iS700,710¥910202207

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90041-01721iS700,710¥570202112

9004201549

main90042-01549¥180

9155180818

main91551-80818¥80

5 parts on this diagram · 1 diagram in section
