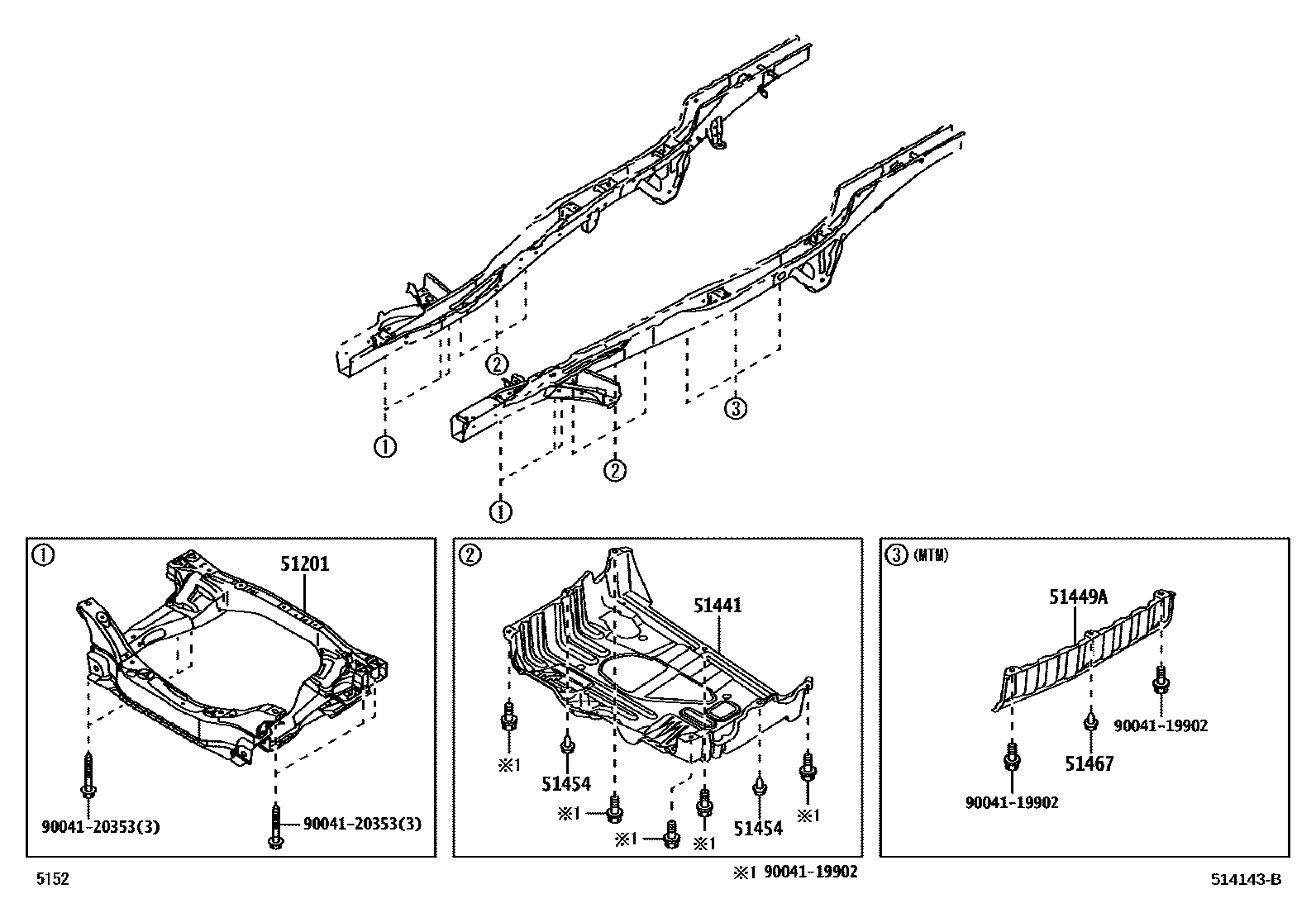

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B5040iS700202112

main51201-B5050iS710202112

51441COVER, ENGINE UNDER, NO.1

main51441-B5060iS700,710202112

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-B5020iS700,710..5F202112

51454CLIP

main90044-68378iS700,710202112

51467RETAINER, ENGINE UNDER COVER

main90044-68378iS700,710..5F202112

9004119902

main90041-19902

9004120353

main90041-20353

7 parts on this diagram · 1 diagram in section
