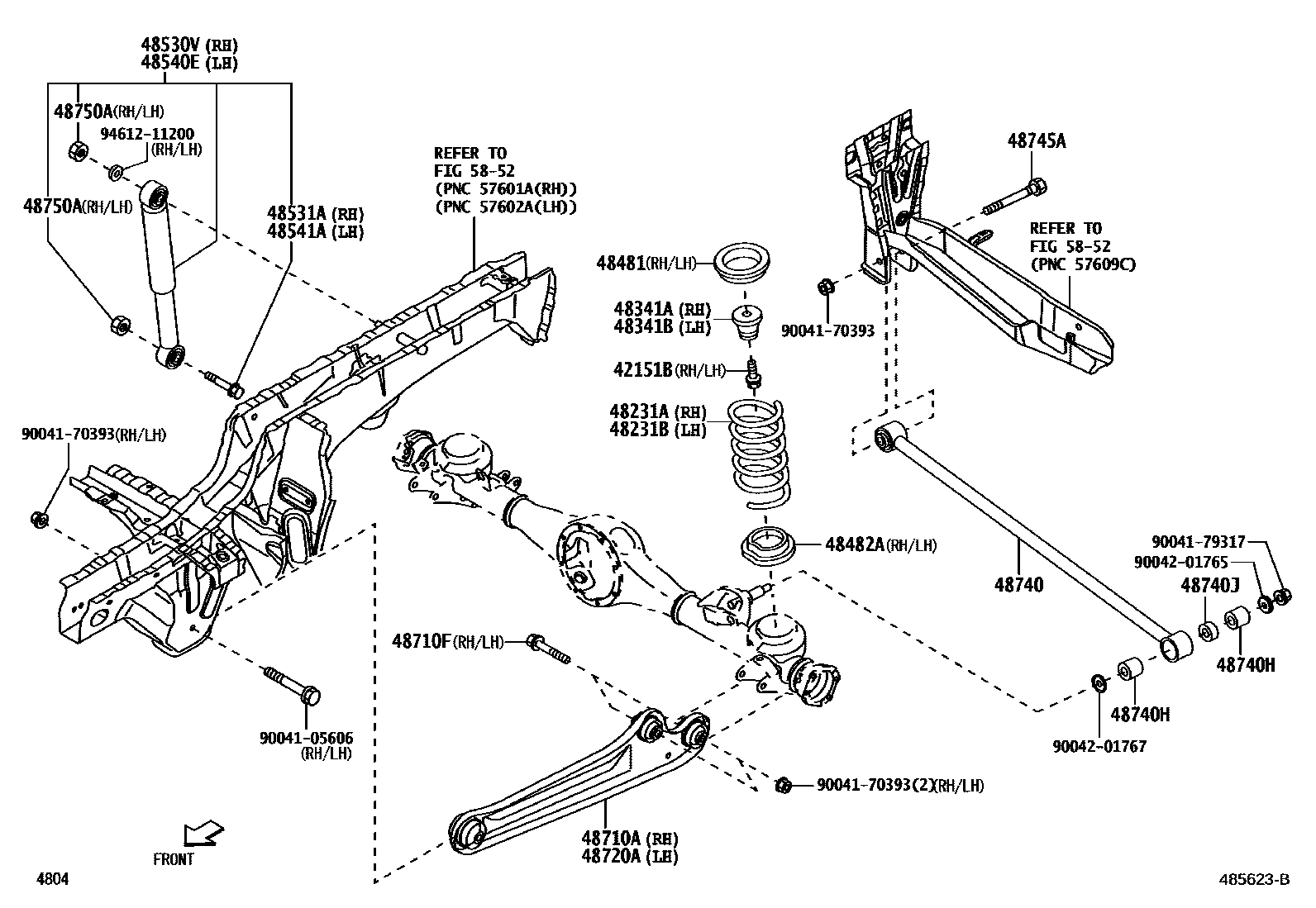

REAR SPRING & SHOCK ABSORBER

42151BBOLT, HEXAGON (FOR REAR SPRING SEAT BOLT)

main91551-80814iS700,710202112

48231ASPRING, COIL, REAR RH

main48231-B5170iS700202112

main48231-B5190iS710202112

48231BSPRING, COIL, REAR LH

main48231-B5180iS700202112

main48231-B5190iS710202112

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-B5010iS700,710202112

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-B5010iS700,710202112

48481SEAT, REAR SPRING, UPPER

main48481-97501iS700,710202112

48482ASEAT, REAR SPRING, LOWER

main48482-87501iS700,710202112

48530VABSORBER SET, SHOCK, REAR RH

main48530-B9400iS700,710202112

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main90041-01716iS700,710202112

48540EABSORBER SET, SHOCK, REAR LH

main48530-B9400iS700,710202112

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main90041-01716iS700,710202112

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-B5020iS700,710202112

48710FBOLT(FOR REAR TRAILING ARM)

main48719-B2021iS700,710202112

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-B5010iS700,710202112

48740ROD ASSY, REAR LATERAL CONTROL

main48740-B5031iS700,710202112

48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)

main90043-85188iS700,710202112

48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)

main90043-86103iS700,710202112

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90041-05360iS700,710202112

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90041-78085iS700,710202112

5852

9004105606

main90041-05606

9004170393

main90041-70393

9004179317

main90041-79317

9004201765

main90042-01765

9004201767

main90042-01767

9461211200

main94612-11200

26 parts on this diagram · 1 diagram in section
