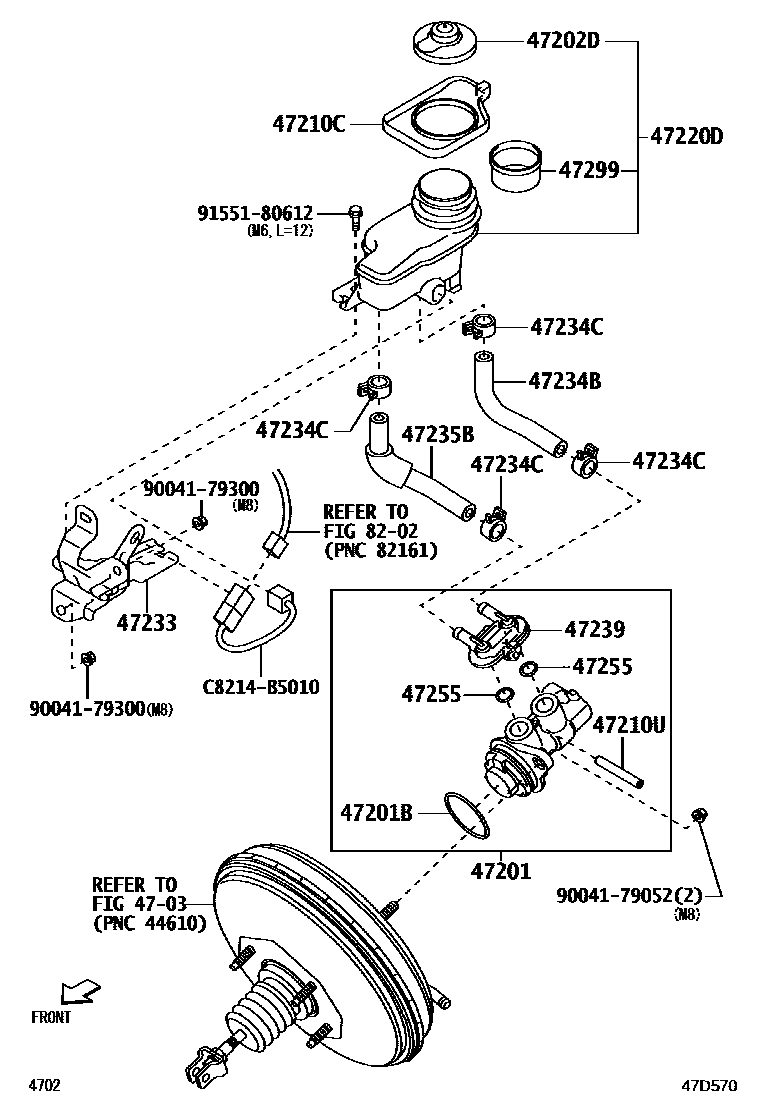

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B5120iS700,710¥13,000202112

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iS700,710¥110202112

47202DCAP, RESERVOIR(FOR MASTER CYLINDER RESERVOIR SET)

main47230-B5010iS700,710¥1,270202112

47210CPLATE(FOR BRAKE MASTER CYLINDER PISTON STOP)

main11494-B5030iS700,710¥240202112

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iS700,710¥150202112

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-B5040iS700,710¥3,870202112

47233BRACKET, RESERVOIR

main47233-B5020iS700,710¥1,850202112

47234BTUBE, RESERVOIR, NO.1

main47234-B5060iS700,710¥770202112

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90044-67246iS700,710¥100202112

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-B5040iS700,710¥880202112

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-B5010iS700,710¥1,010202112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050iS700,710¥260202112

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iS700,710¥620202112

8202

9004179052

main90041-79052¥210

9004179300

main90041-79300¥120

9155180612

main91551-80612¥60

C8214B5010WIRE, POWER LIFT MOTOR

mainC8214-B5010¥390

19 parts on this diagram · 1 diagram in section
