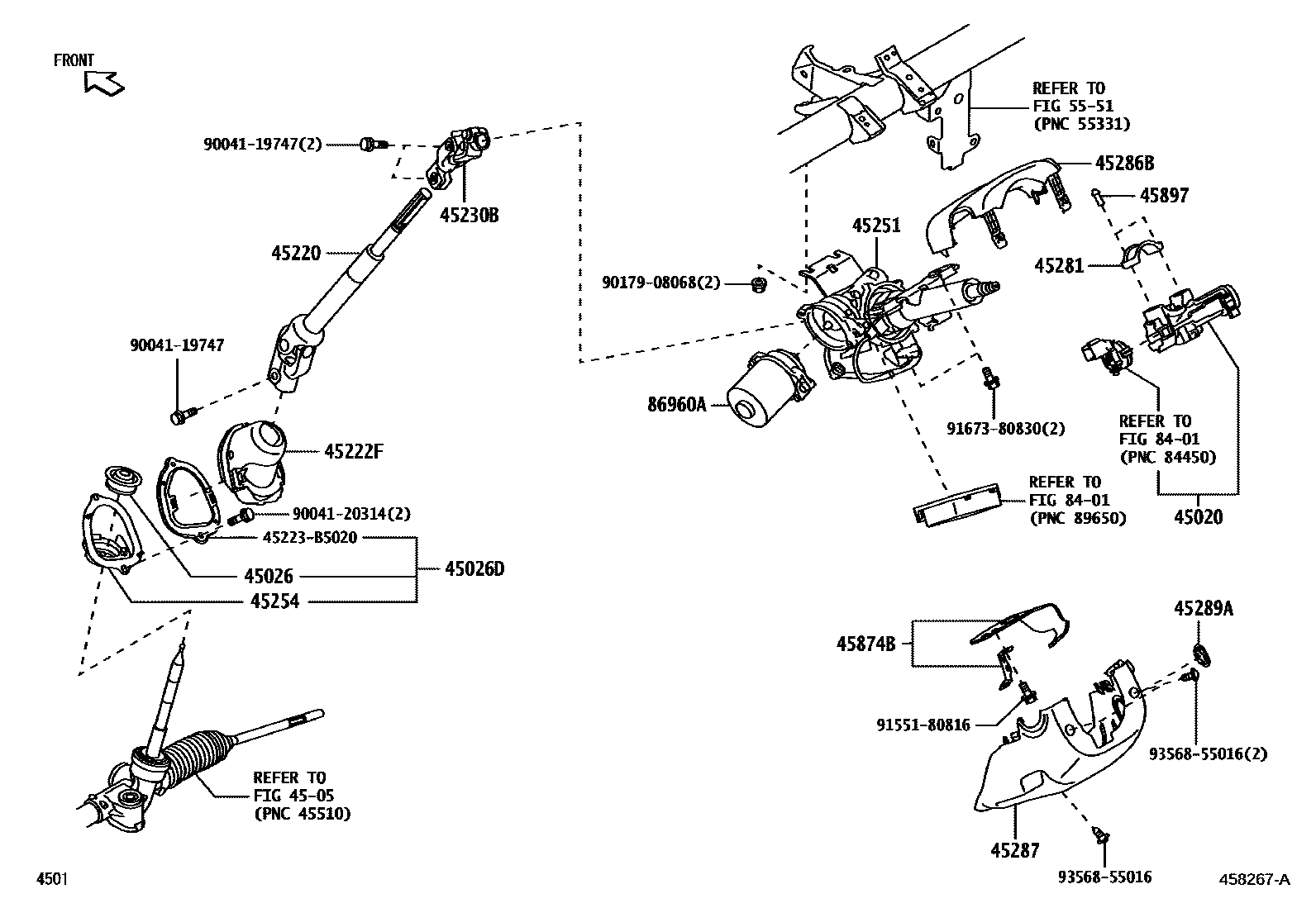

STEERING COLUMN & SHAFT

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-B5100iS700,710..5F202112

main45020-B5110iS700,710..CVT..(DLX,SPL)202112

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-B5010iS700,710202112

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-B5010iS700,710202112

4505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-B5090iS700,710202112

45222FCOVER, DUST

main45222-B5050iS700,710202112

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-B5010iS700,710202112

45251TUBE SET, STEERING COLUMN

main45251-B9310iS700,710..5F..CR;S700,710..DLX,SPL202112

main45251-B9320iS700,710..CVT..CR202112

45254SHIELD, STEERING COLUMN HOLE

main45254-B5040iS700,710202112

45281HOUSING, STEERING COLUMN

main45281-B2040iS700,710..5F..CR;S700,710..DLX,SPL202112

45286BCOVER, STEERING COLUMN, UPR

main45286-B5050-C0iS700,710202112

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-B5050-C0iS700,710202112

BLACK,TRIM1#

45289ASUPPORT, STEERING COLUMN COVER

main45289-B2030-C0iS700,710..CVT..CR202112

BLACK,TRIM1#

sub45289-B2030

main45289-B2030-C0iS700,710..CVT..CR202112

sub45289-B2030

45874BPROTECTOR, STEERING COLUMN, NO.1

main76610-B5011iS700,710202112

45897BOLT, STEERING LOCK SET

main45897-B2010iS700,710..5F..CR;S700,710..DLX,SPL202112

5551

8401

86960AMOTOR SET, POWER STEERING

main80960-B9210iS700,710202112

45223B5020

main45223-B5020

9004119747

main90041-19747

9004120314

main90041-20314

9017908068

main90179-08068

9155180816

main91551-80816

9167380830

main91673-80830

9356855016

main93568-55016

25 parts on this diagram · 1 diagram in section
