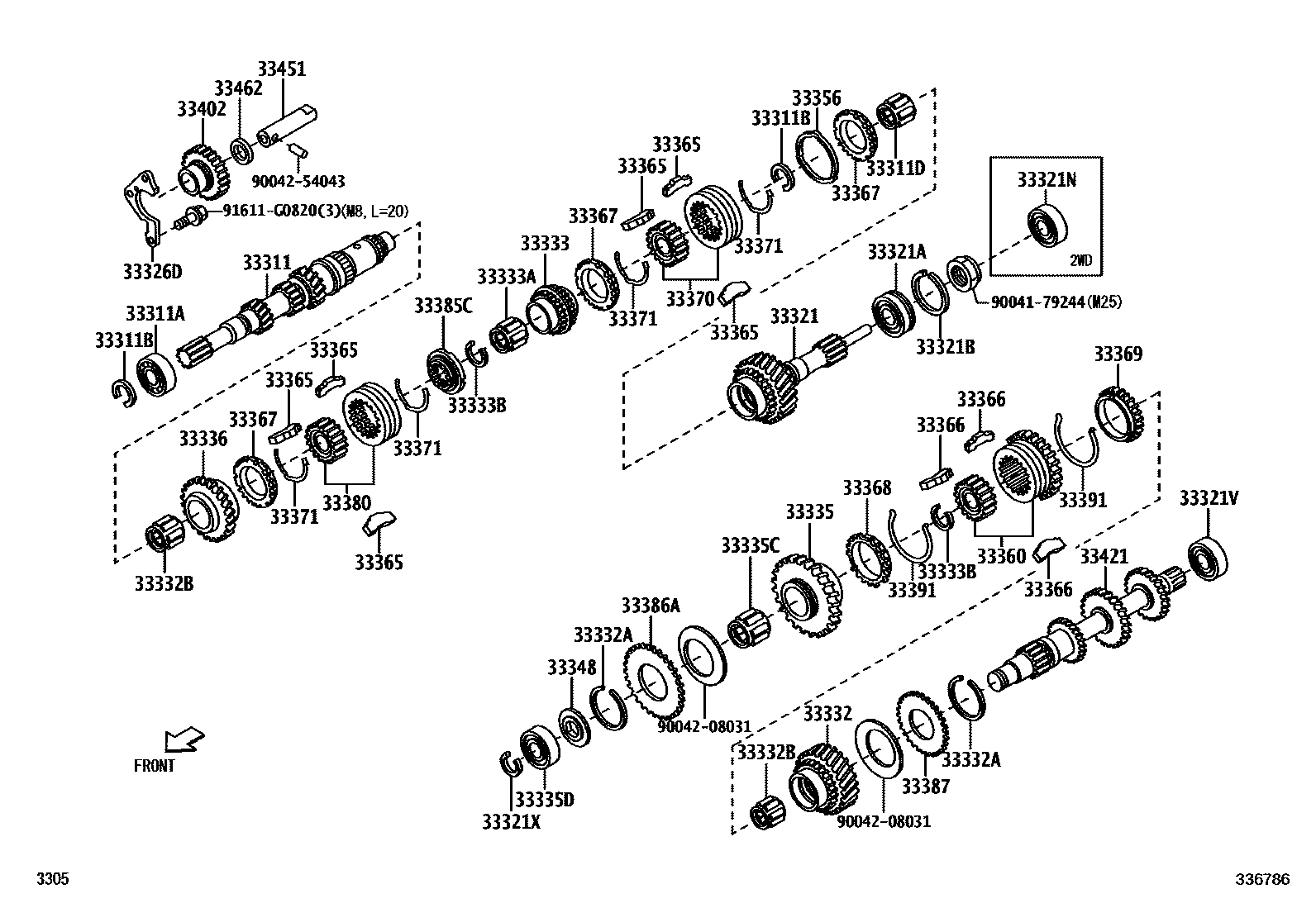

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33326DPLATE, INPUT SHAFT BEARING LOCK
33332GEAR, 2ND
33332ARING, SHAFT SNAP (FOR 2ND GEAR)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333BRING, SHAFT SNAP (FOR 3RD REAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33335DBEARING(FOR 1ST GEAR)
33336GEAR, 5TH
33348WASHER, 1ST GEAR THRUST
33356SPRING, WAVE
33360HUB ASSY, SYNCHRONIZER, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33370HUB ASSY, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33380HUB ASSY, SYNCHRONIZER, NO.3
33385CSTOPPER, HUB SLEEVE
33386ASUB-GEAR, 1ST
33387SUB-GEAR, NO.2
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33421GEAR, COUNTER
33451SHAFT, REVERSE IDLER GEAR
33462WASHER, REVERSE IDLER THRUST
9004179244
main90041-79244
9004208031
main90042-08031
9004254043
main90042-54043
91611G0820
main91611-G0820
44 parts on this diagram · 1 diagram in section
