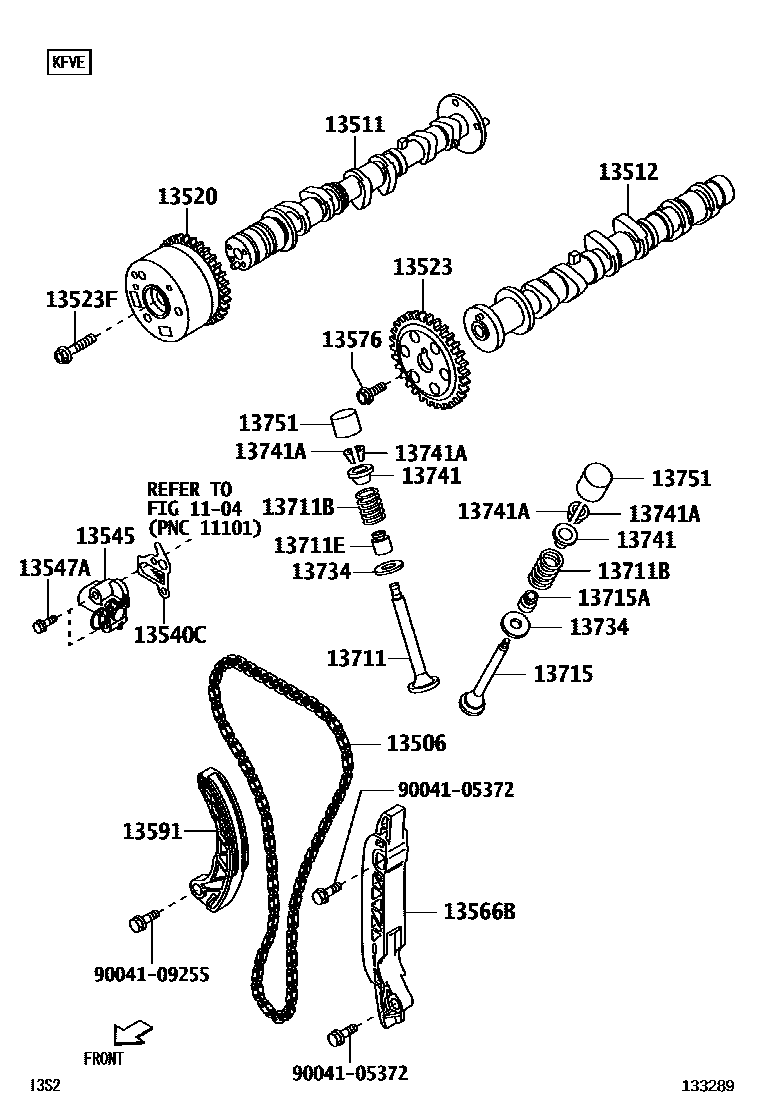

CAMSHAFT & VALVE
1104
13520SPROCKET ASSY, CAMSHAFT TIMING
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13540CGASKET(FOR CHAIN TENSIONER)
13545PLUNGER, CHAIN TENSIONER
13547ABOLT(FOR TENSIONER LOCK PLATE SET)
13566BGUIDE, TIMING CHAIN
13576BOLT, CAMSHAFT TIMING GEAR
13591ARM, TIMING CHAIN TENSION
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
MARK6
MARK8
MARK10
MARK12
MARK14
MARK16
MARK18
MARK20
MARK22
MARK24
MARK26
MARK28
MARK30
MARK32
MARK34
MARK36
MARK38
MARK40
MARK42
MARK44
MARK46
MARK48
MARK50
MARK52
MARK54
9004105372
main90041-05372
9004109255
main90041-09255
24 parts on this diagram · 2 diagrams in section
