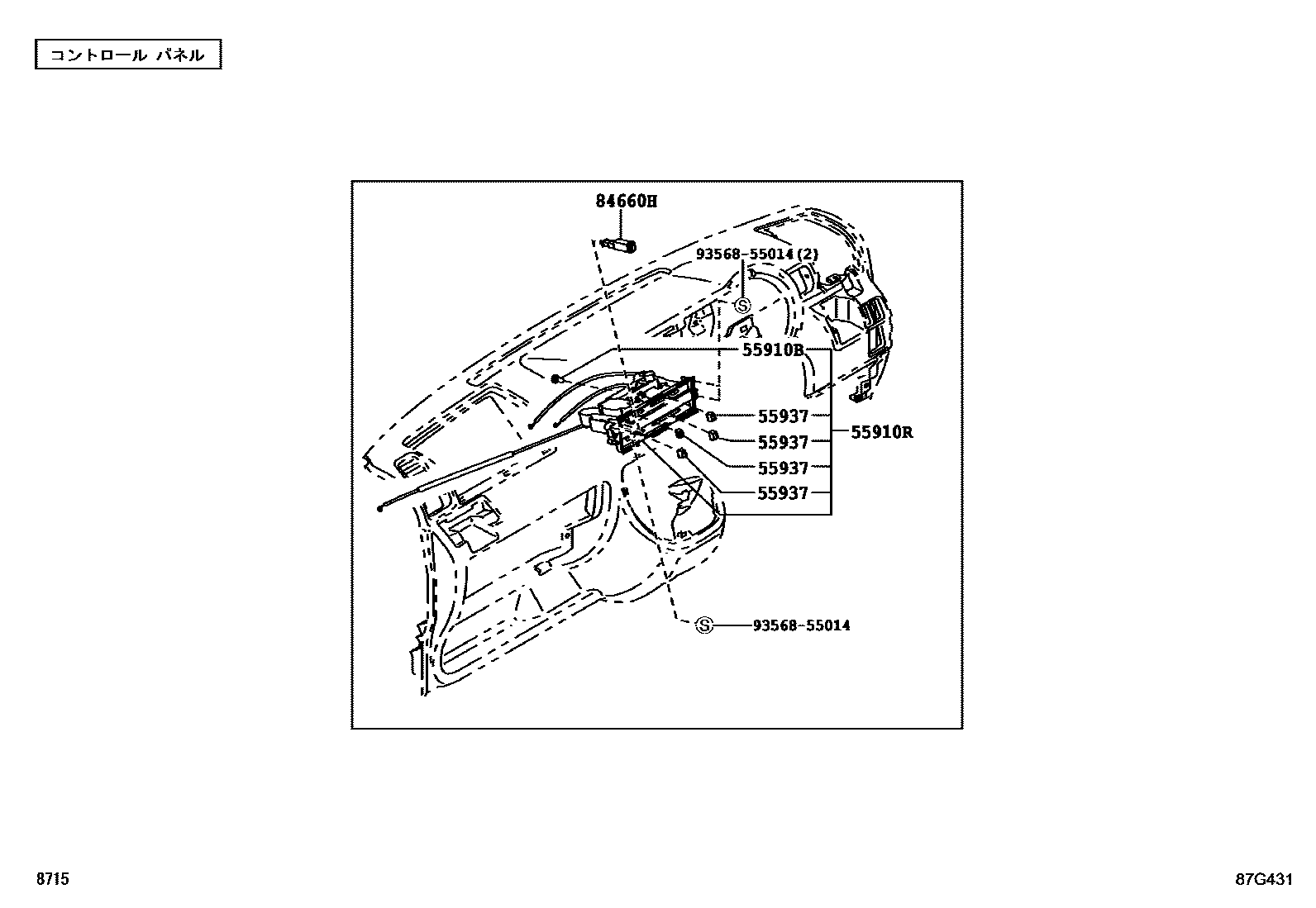

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1������ ���� 0005 1�� ���� 0006 1���

55910BBULB, HEATER CONTROL

main81936-B2040iS321,331201711

main9004C-81004iS321,331..PS1201112-201711

55910RCONTROL ASSY, HEATER

main55910-B2331iS321,331201711-201804

main55910-B5010iS321,331..PS2201112-201610

sub55910-B5011

main55910-B5011iS321,331201610-201711

main55910-B5100iS321,331201805

55937KNOB, HEATER CONTROL LEVER

main55925-87202iS321,331..PS2201112-201711

84660HSWITCH ASSY, COOLER CONTROL

main84660-97201iS321,331..PS1201112-201711

9356855014

main93568-55014

5 parts on this diagram · 6 diagrams in section
