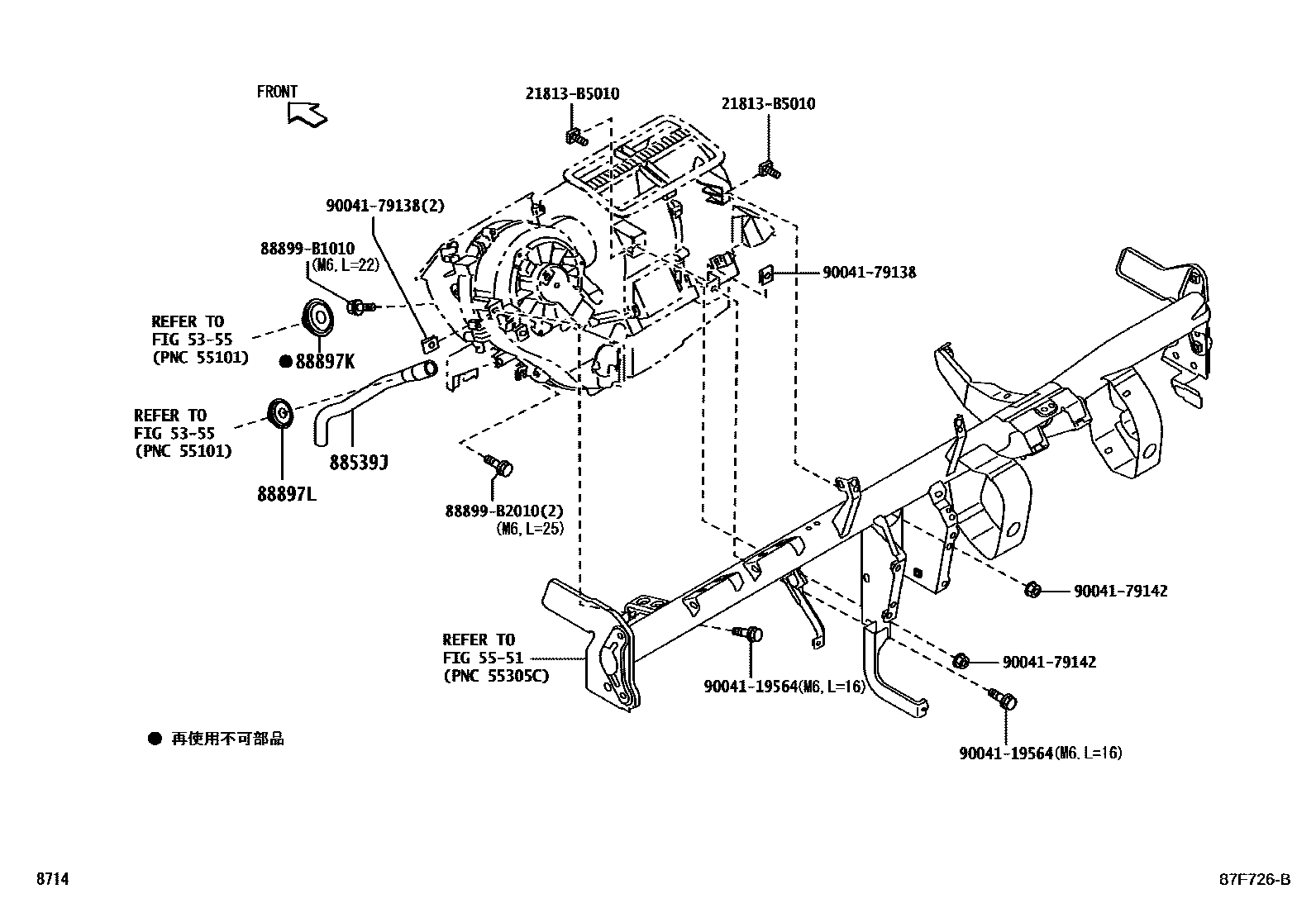

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1���� ���� 0004 1����� ���� 0005 1������� �����

5355

5551

88539JHOSE, DRAIN COOLER

main88539-B5010iS321,331..PS1201112-201711

main88539-B5030iS321,331202009-202108

main88539-B5080iS321,331201711-202009

main88840-B5030iS321,331202108-202112

88897KGROMMET, (FOR COOLER PIPE)

main88897-B5010iS321,331..PS1201112-201711

main88897-B5020iS321,331201711

88897LGROMMET (FOR DRAIN HOSE)

main88897-87210iS321,331..PS1201112-201711

21813B5010BOLT, STUD(FOR CARBURETOR TO AIR CONNECTOR)

main21813-B5010

88899B1010COVER, EVAPORATOR

main88899-B1010

88899B2010COVER, EVAPORATOR

main88899-B2010

9004119564

main90041-19564

9004179138

main90041-79138

9004179142

main90041-79142

11 parts on this diagram · 5 diagrams in section
