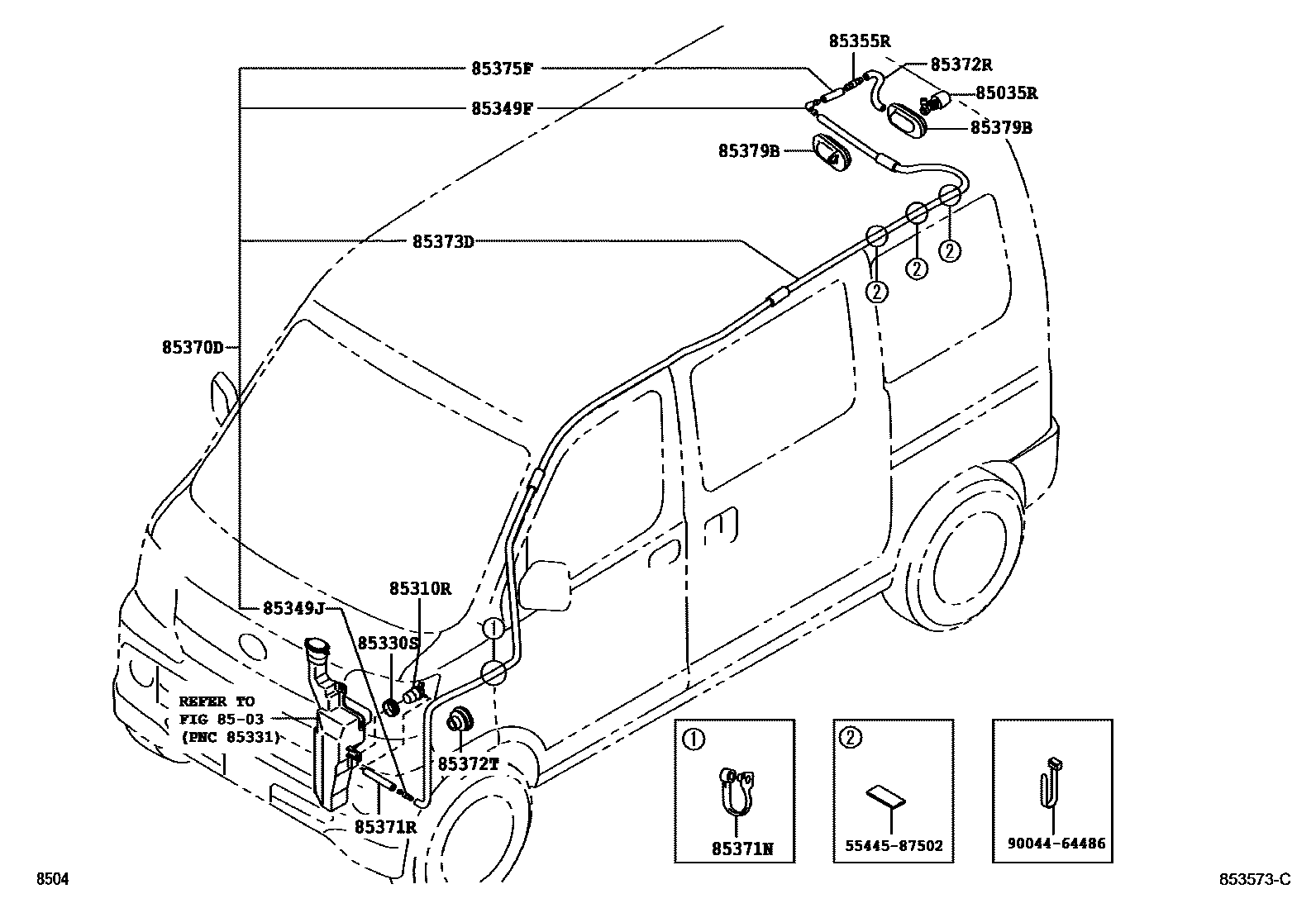

REAR WASHER
8503
85035RNOZZLE SUB-ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85349FJOINT, REAR WASHER HOSE, NO.1
85349JJOINT, REAR WASHER HOSE, NO.4
85355RVALVE, REAR WASHER HOSE
85370DHOSE ASSY, REAR WASHER, NO.1
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372TGROMMET, WASHER
85373DPIPE, REAR WASHER
85375FHOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
85379BGROMMET, WASHER, A
5544587502GARNISH, INSTRUMENT PANEL OUTSIDE, RH
main55445-87502
9004464486
main90044-64486
17 parts on this diagram · 2 diagrams in section
