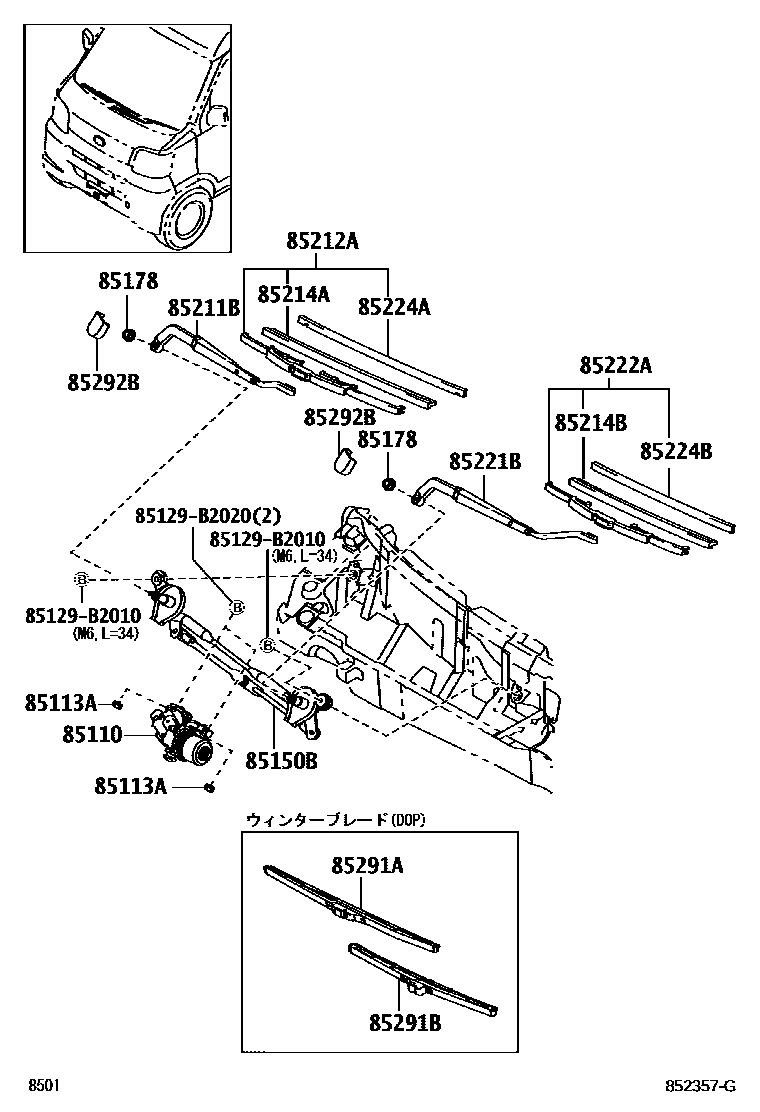

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B1020iS321,331..PS1201112-201711

sub85110-B2270

main85110-B5010iS321,331201711

85113ANUT, FR WIPER

main85113-B2010iS321,331..PS1201112-201711

85150BLINK ASSY, WIPER

main85150-B5030iS321,331..PS1201112-201711

main85150-B5060iS321,331201711

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iS321,331201112-201711

85211BARM, FRONT WIPER, RH

main85211-B5030iS321,331201112-201711

85212ABLADE, FR WIPER, RH

main85212-B1010iS321,331201112-201711

85214ARUBBER, WIPER, RH

main85214-B2010iS321,331..PS1201112-201711

sub85214-B5020

85214BRUBBER, WIPER, LH

main85221-97401iS321,331201112-201711

85221BARM, FRONT WIPER, LH

main85221-B5020iS321,331201112-201711

85222ABLADE, FR WIPER, LH

main85222-B5010iS321,331201112-201711

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10210iS321,331201112-201711

sub85224-10180

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-0D040iS321,331201112-201711

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020iS321,331201112-201711

85129B2010COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2010

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020

17 parts on this diagram · 2 diagrams in section
