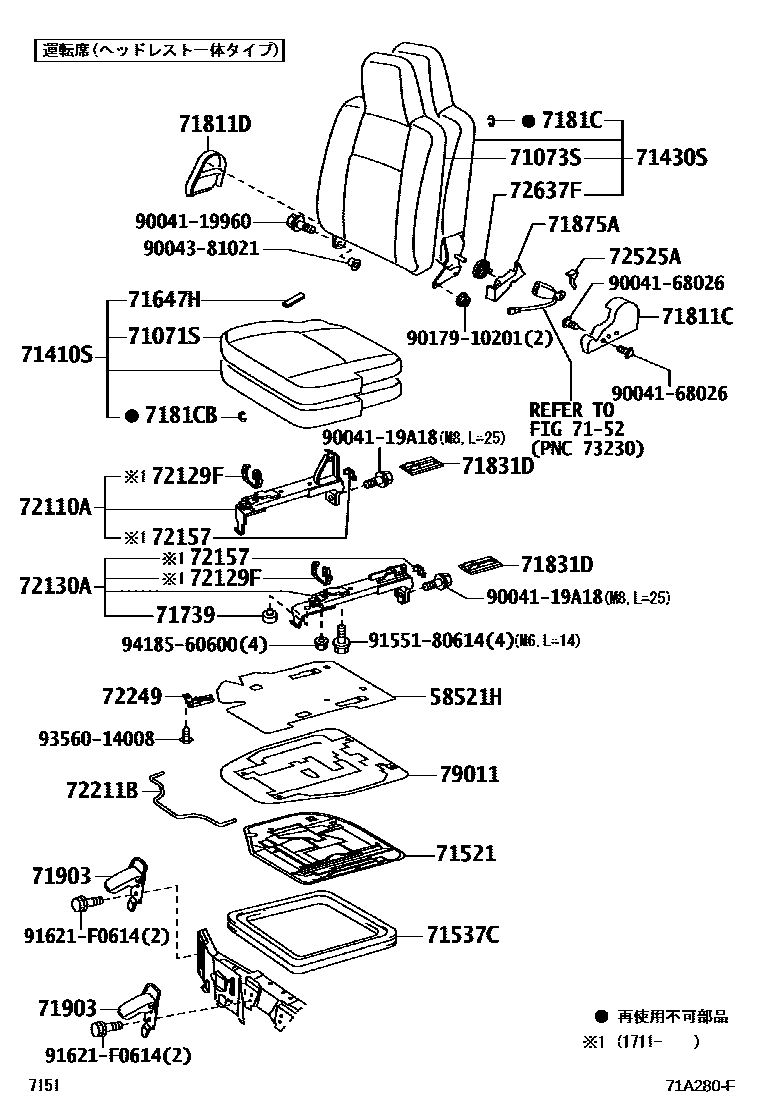

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1����� ��������

58521HCARPET, ENGINE SERVICE HOLE COVER

main58521-B5011-B1iS321,331..SPL201112-201711

-,TRIM1#

main58521-B5032-B3iS331..CR201112-201711

GRAY,TRIM1#

main58521-B5111-B0iS331..DLX201112-201711

-,TRIM1#

main58521-B5210-B0iS321,331..SPL201711

BLACK,TRIM2#

main58521-B5220-B0iS321,331..CR201711

GRAY,TRIM2#

main58521-B5300-B0iS321,331..DLX201711

BLACK,TRIM2#

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-B5030-B0iS321,331..SPL..PS2201112-201711

GRAY,TRIM1#

main71071-B5110-B0iS331..DLX201112-201711

GRAY,TRIM1#

main71071-B5140-J1iS321,331..CR..PS2201112-201711

BLUE,TRIM1#

main71071-B5260-B0iS321,331..SPL201711

DK.GRAY,TRIM2#

main71071-B5270-C0iS321,331..DLX201711

BLACK,TRIM2#

main71071-B5280-C0iS321,331..CR201711

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-B5032-B0iS331..SPL..STD;S331..SRF..ULEV201112-201711

GRAY,TRIM1#

main71073-B5112-B0iS321,331..DLX..PS2201112-201711

GRAY,TRIM1#

main71073-B5171-J1iS321,331..CR..PS2201112-201711

BLUE,TRIM1#

main71073-B5270-B0iS321,331..SPL201711

DK.GRAY,TRIM2#

main71073-B5280-C0iS321,331..DLX201711

BLACK,TRIM2#

main71073-B5290-C0iS321,331..CR201711

BLACK,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-B5040-B0iS321..SPL..PS1;S331..HRF..ULEV..PS1201112-201711

GRAY,TRIM1#

main71410-B5120-B0iS321..DLX..PS1201112-201711

GRAY,TRIM1#

main71410-B5180-B1iS321,331..CR..PS2201112-201711

-,TRIM1#

main71410-B5270-C0iS321,331..SPL201711

-,TRIM2#

main71410-B5280-C0iS321,331..DLX201711

-,TRIM2#

main71410-B5290-C0iS321,331..CR201711

-,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-B5032-B0iS321..SPL..PS1;S331..HRF..ULEV..PS1201112-201711

-,TRIM1#

main71430-B5142-B0iS331..DLX201112-201711

-,TRIM1#

main71430-B5191-B0iS321,331..CR..PS2201112-201711

-,TRIM1#

main71430-B5300-C0iS321,331..SPL201711

-,TRIM2#

main71430-B5310-C0iS321,331..DLX201711

-,TRIM2#

main71430-B5320-C0iS321,331..CR201711

-,TRIM2#

7152

71521PAD, FRONT SEAT CUSHION SILENCER, A

main58431-B5011iS321,331..PS2201112-201711

main58431-B5020iS321,331201711

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main58435-B5010iS321,331..PS2201112-201711

71647HPROTECTOR, FRONT SEAT CUSHION EDGE

main71537-B5010iS321,331201112-201711

71739CUSHION, SEAT SUPPORT

main71739-B5020iS321,331..PS2201208-201711

main71739-B5020iS321,331201711

main71739-B5030iS321,331201711

71811CCOVER, RECLINING ADJUSTER, RH

main71811-B5020-B0iS331..STD;S331..SRF..ULEV201112-201711

GRAY,TRIM1#

main71811-B5020-C0iS321,331201711

BLACK,TRIM2#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-B5010-B0iS331..STD;S331..SRF..ULEV201112-201711

GRAY,TRIM1#

main71811-B5010-C0iS321,331201711

BLACK,TRIM2#

7181CRING, HOG, SMALL (FOR FRONT SEATBACK)

main71812-87201iS321..(DLX,SPL)..PS1;S331..HRF..ULEV..PS1201112-201711

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main71812-87201iS321,331201112-201711

71831DCOVER, FRONT SEAT HINGE, RH

main71831-B5010iS321..PS1;S331..HRF..ULEV..PS1201112-201711

main71831-B5011-C0iS321,331201711

BLACK,TRIM2#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-B5010-B0iS321,331201112-201711

GRAY,TRIM1#

main71875-B5010-C0iS321,331201711

BLACK,TRIM2#

71903CATCH SUB-ASSY, SEAT CUSHION, FRONT

main72504-B5012iS321,331201112-201711

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-B5020iS321,331201112-201711

72129FPROTECTOR, SEAT TRACK LOWER RAIL, NO.5

main72129-B5010iS321,331201711

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-B5020iS331..STD;S331..SRF..ULEV201112-201711

main72130-B5050iS321,331201711

72157COVER, SEAT TRACK BRACKET, INNER

main72157-B5010iS321,331201711

72211BHANDLE, SEAT TRACK ADJUSTING

main72211-B5010iS321,331201112-201711

72249GUIDE, SEAT TRACK LOCKING

main72248-B5010iS321,331201112-201711

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-B5010-B0iS331..STD;S331..SRF..ULEV201112-201711

GRAY,TRIM1#

main72525-B5010-C0iS321,331201711

BLACK,TRIM2#

72637FSPRING, SEATBACK, RH

main72637-B5010iS331..STD;S331..SRF..ULEV201112-201711

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main58410-B5011iS321,331..PS1201112-201711

main58410-B5050iS321,331201711

9004119960

main90041-19960

9004119A18

main90041-19A18

9004168026

main90041-68026

9004381021

main90043-81021

9017910201

main90179-10201

9155180614

main91551-80614

91621F0614

main91621-F0614

9356014008

main93560-14008

9418560600

main94185-60600

35 parts on this diagram · 12 diagrams in section
