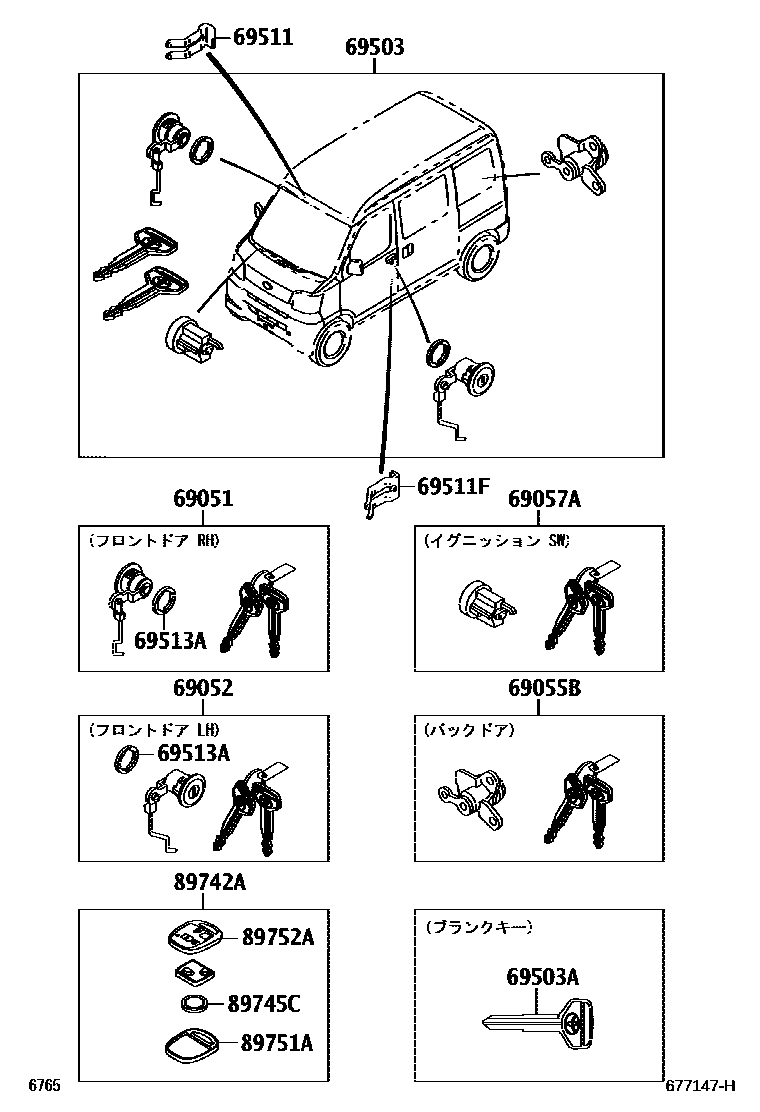

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-B5050iS321,331..PS1201112-201711

main69051-B5140iS321,331201711

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-B5050iS321,331..PS1201112-201711

main69052-B5140iS321,331201711

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-B5060iS321,331..PS2201112-201711

main69055-B5150iS321,331201711

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-B5050iS321,331..PS1201112-201711

main69057-B5110iS321,331201711

69503CYLINDER SET, LOCK

main69005-B5200iS321,331..PS2201112-201711

main69005-B5550iS321,331..CR,DLX201711

main69005-B5620iS321,331..SPL201711

69503AKEY, BLANK

main69515-B5120iS321,331..PS2201112-201711

main90999-00153iS321,331201711

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69682-97202iS321,331201112-201711

69511FRETAINER, FRONT DOOR LOCK CYLINDER

main69682-97202iS321,331201112-201711

69513APAD, DOOR CYLINDER

main69513-87201iS321,331201711

main69513-87201iS321,331..PS1201112-201711

89742ATRANSMITTER, DOOR CONTROL

main89742-B5091iS321,331..(CR,DLX)..PS1201112-201711

89745CBATTERY, TRANSMITTER

main89745-B1020iS321,331..(CR,DLX)..PS1201112-201711

89751ACOVER, TRANSMITTER HOUSING

main89751-B1050iS321,331..CR,DLX201711

main89751-B5030iS321,331..(CR,DLX)..PS1201112-201711

89752ACASE, TRANSMITTER HOUSING

main89752-B1050iS321,331..CR,DLX201711-202112

main89752-B5030iS321,331..(CR,DLX)..PS1201112-201711

13 parts on this diagram · 2 diagrams in section
