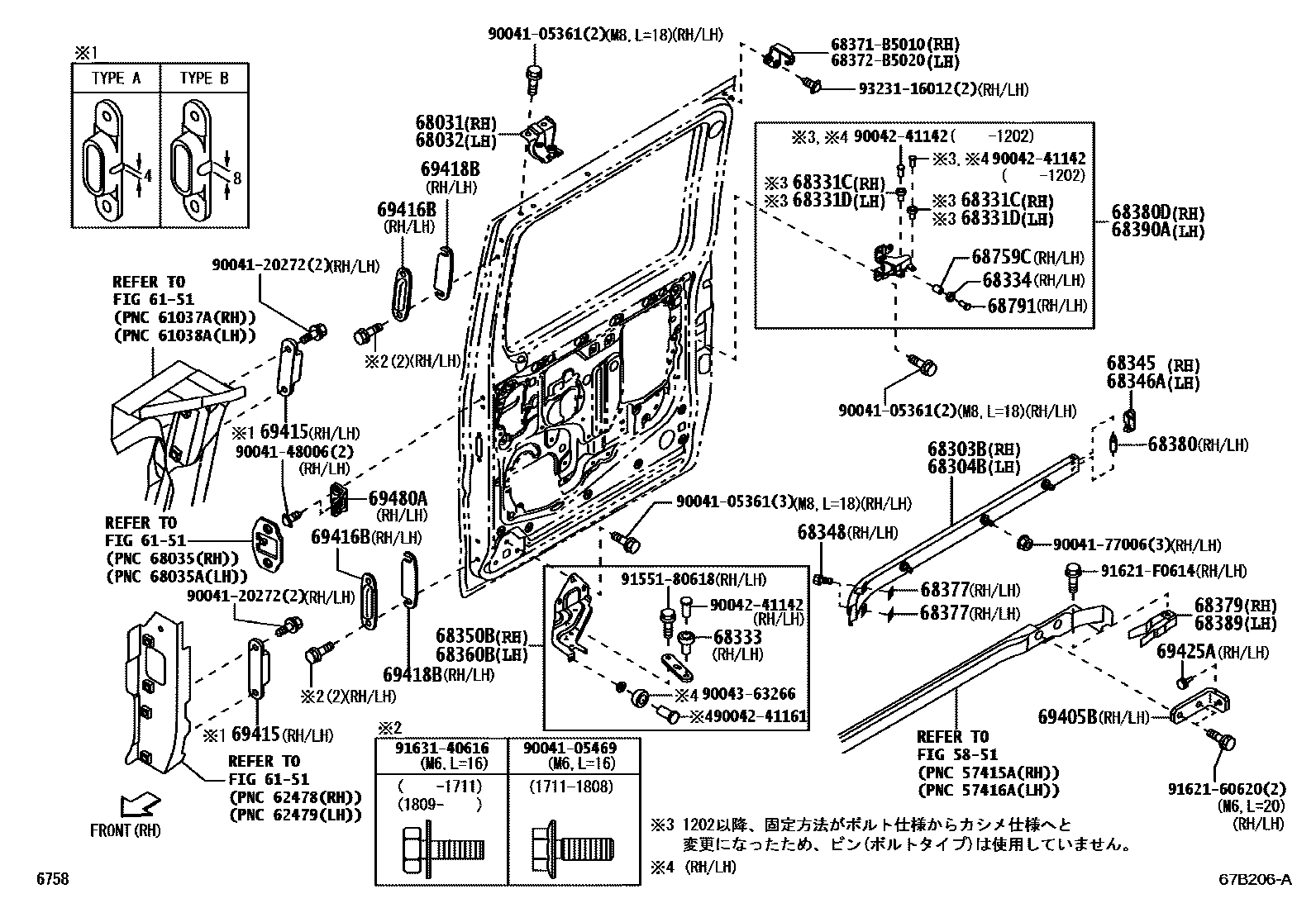

SLIDE ROLLER & RAIL

0001 1 0002 1

5851

6151

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-B5010iS321,331201112-201711

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-B5010iS321,331201112-201711

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-B5010iS321,331201112-201711

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-B5010iS321,331..PS2201112-201711

68331CROLLER, SLIDE DOOR, RH

main68334-87503iS321,331201112-201202

68331DROLLER, SLIDE DOOR, LH

main68334-87503iS321,331201112-201202

68333ROLLER, SLIDE DOOR CENTER, NO.1

main68332-87501iS321,331201112-201711

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68332-B5020iS321,331..PS2201209-202101

sub68332-B5021

main68332-B5021iS321,331202102

main90043-63245iS321,331201112-201209

sub68332-B5020

68345COVER, SLIDE DOOR CENTER RAIL

main68345-B5010iS321,331..PS1201112-201711

68346ACOVER, SLIDE DOOR CENTER RAIL, LH

main68346-B5010iS321,331..PS1201112-201711

68348BOLT, SLIDE DOOR CENTER RAIL

main91551-80614iS321,331..PS2201112-201711

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-B5010iS321,331201112-201411

sub68350-B5011

main68350-B5011iS321,331201412-201711

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-B5010iS321,331201112-201411

sub68360-B5011

main68360-B5011iS321,331..PS1201412-201711

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-97502iS321,331..PS2201112-201711

68379SPRING, SLIDE DOOR CATCH, RH

main68379-B5030iS321,331..PS1201112-201610

sub68379-B5031

main68379-B5031iS321,331201611-201905

sub68379-B5032

main68379-B5032iS321,331201906

68380CUSHION ASSY, SLIDE DOOR

main52209-B5010iS321,331201112-201711

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-B5011iS321,331201112-201201

sub68380-B5012

main68380-B5012iS321,331201202-201208

sub68380-B5013

main68380-B5013iS321,331201209-202101

sub68380-B5014

main68380-B5014iS321,331202102

68389SPRING, SLIDE DOOR CATCH, LH

main68389-B5040iS321,331..PS2201112-201711

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-B5011iS321,331201112-201201

sub68390-B5012

main68390-B5012iS321,331201202-201208

sub68390-B5013

main68390-B5013iS321,331201209-202101

sub68390-B5014

main68390-B5014iS321,331202102

68759CSPACER, CENTER DOOR HINGE

main90045-60195iS321,331..PS1201112-201711

68791PIN, DOOR HINGE, NO.1

main90042-41106iS321,331201112-201711

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69416-87507iS321,331201112-201711

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69414-87503iS321,331201112-201202

sub69043-B5010

main69415-B5010iS321,331201112-201201

sub69043-B5010

main69415-B5030iS321,331201711-201906

sub69043-B5010

main69415-B5030iS321,331..PS1201202-201711

sub69043-B5010

main69415-B5040iS321,331201907

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69413-87501iS321,331..PS2201112-201711

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-87501iS321,331201112-201711

69425ACUSHION, SLIDE DOOR STOP

main69419-B5010iS321,331201112-201711

69480AHOOK ASSY, SLIDE DOOR FRONT LOCK

main69481-B5010iS321,331201112-201711

68371B5010

main68371-B5010

68372B5020

main68372-B5020

9004105361

main90041-05361

9004105469

main90041-05469

9004120272

main90041-20272

9004148006

main90041-48006

9004177006

main90041-77006

9004241142

main90042-41142

9004241161

main90042-41161

9004363266

main90043-63266

9155180618

main91551-80618

9162160620

main91621-60620

91621F0614

main91621-F0614

9163140616

main91631-40616

9323116012

main93231-16012

44 parts on this diagram · 2 diagrams in section
