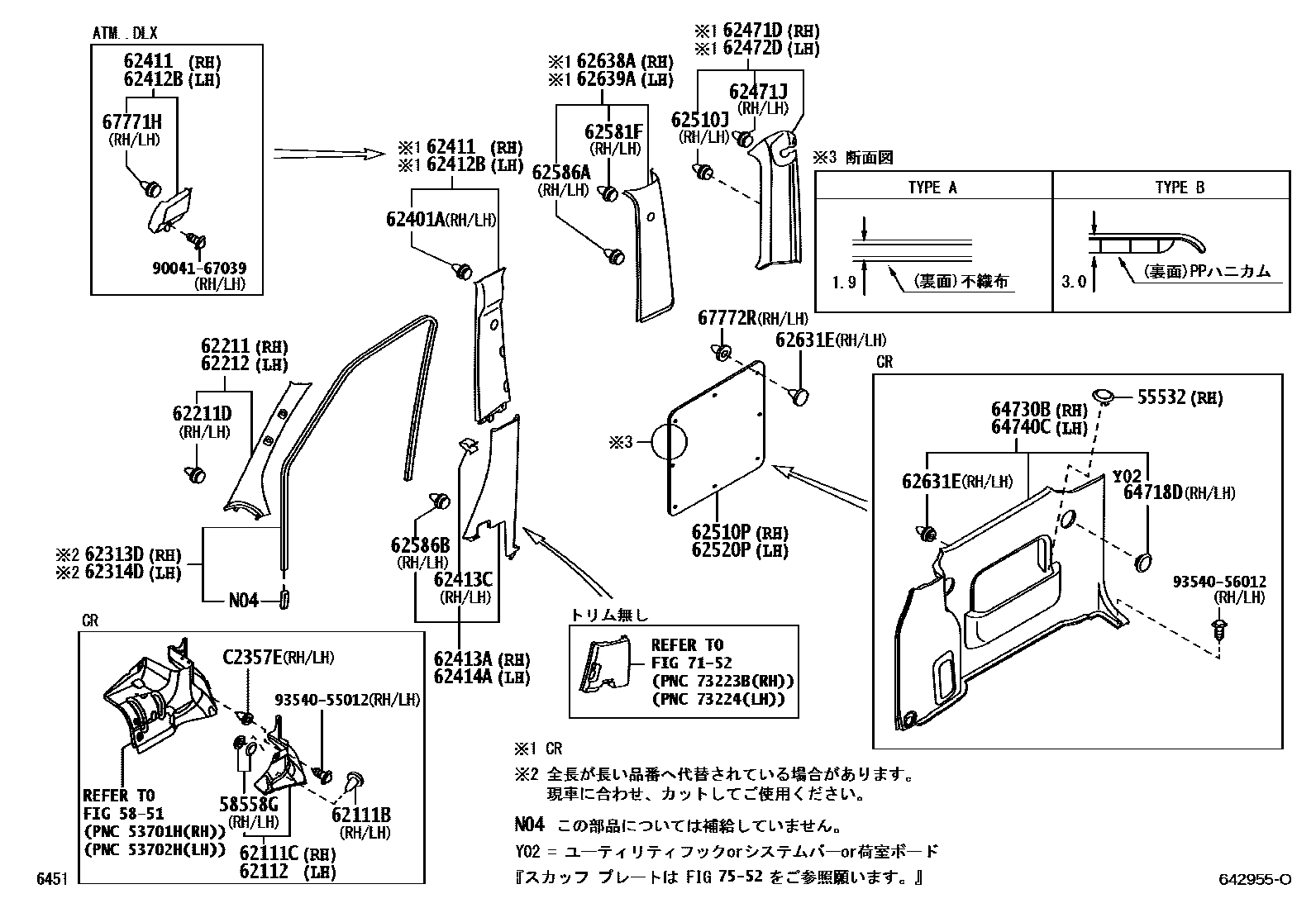

INSIDE TRIM BOARD

55532COVER, CIGAR LIGHTER HOLE

main55532-87602-B0iS321,331..CR..PS2201112-201711

GRAY,TRIM1#

main55532-87602-C1iS321,331..CR201711

BLACK,TRIM2#

5851

58558GFASTENER, PILE

main58558-87501-B0iS321,331..CR..PS1201112-201711

GRAY,TRIM1#

sub58558-87501

main58558-87501-C0iS321,331..CR201711-202112

BLACK,TRIM2#

sub58558-87501

62111BCLIP(FOR COWL SIDE TRIM)

main90044-68234-B2iS321,331..CR..PS2201112-201711

DK.GRAY,TRIM1#

sub90044-68234

main90044-68234-C0iS321,331..CR201711

BLACK,TRIM2#

sub90044-68234

62111CBOARD, COWL SIDE TRIM, RH

main62111-B5010-B0iS321,331..CR..PS1201112-201711

GRAY,TRIM1#

main62111-B5010-C1iS321,331..CR201711

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-B5010-B0iS321,331..CR..PS2201112-201711

GRAY,TRIM1#

main62112-B5010-C1iS321,331..CR201711

BLACK,TRIM2#

62211GARNISH, FRONT PILLAR, RH

main62211-B5010-B1iS321,331..CR,DLX;S321,331..4FC..SPL..PS3;S321,331..SPL..(PS4,PS5,PS6)201711

LT.GRAY,TRIM2#

main62211-B5010-B1iS321,331..(CR,DLX)..PS1201112-201711

LT.GRAY,TRIM1#

main62211-B5010-B1iS321,331..(CR,DLX)..PS1201112-201711

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main67771-B2010iS321,331..CR,DLX;S321,331..4FC..SPL..PS3;S321,331..SPL..(PS4,PS5,PS6)201711

main67771-B2010iS321,331..(CR,DLX)..PS1201112-201711

62212GARNISH, FRONT PILLAR, LH

main62212-B5010-B1iS321,331..SPL..PS2201112-201711

LT.GRAY,TRIM1#

main62212-B5010-B1iS321,331..CR,DLX;S321,331..4FC..SPL..PS3;S321,331..SPL..(PS4,PS5,PS6)201711

LT.GRAY,TRIM2#

main62212-B5010-B1iS321,331..(CR,DLX)..PS1201112-201711

62313DTRIM, FRONT DOOR OPENING, RH

main62313-B5010-C0iS321,331..5F..SPL201711-201812

BLACK,TRIM2#

main62313-B5010-C0iS321,331..SPL201112-201711

BLACK,TRIM1#

main62313-B5020-C0iS321,331..5F..DLX..PS3;S321,331..4FC..(DLX,SPL)..PS3;S321,331..(DLX,SPL)..(PS4,PS5,PS6)201711

BLACK,TRIM2#

main62313-B5030-C0iS321,331..CR..PS1201112-201711

BLACK,TRIM1#

main62313-B5030-C0iS321,331..CR201711

BLACK,TRIM2#

main62313-B5050iS321,331..SPL..(PS1,PS2)201112

main62313-B5050iS321,331..SPL201112-201711

main62313-B5050iS321,331..DLX..(PS1,PS2)201112

TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-B5010-C0iS321,331..5F..SPL201711-201812

BLACK,TRIM2#

main62313-B5010-C0iS321,331..SPL201112-201711

BLACK,TRIM1#

main62313-B5030-C0iS321,331..CR201711

BLACK,TRIM2#

main62313-B5030-C0iS321,331..CR..PS1201112-201711

BLACK,TRIM1#

main62314-B5020-C0iS321,331..5F..DLX..PS3;S321,331..4FC..(DLX,SPL)..PS3;S321,331..(DLX,SPL)..(PS4,PS5,PS6)201711

BLACK,TRIM2#

main62314-B5040iS321,331..SPL..PS1201112-201711

main62314-B5040iS321,331..DLX..(PS1,PS2)201112

TRIM1#

main62314-B5040iS321,331..DLX..(PS1,PS2)201112

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62217-B2020iS321,331..CR201112-201711

62411GARNISH, CENTER PILLAR, RH

main62411-B5010-B1iS321,331..CR201711

LT.GRAY,TRIM2#

main62411-B5010-B1iS321,331..CR..PS1201112-201711

LT.GRAY,TRIM1#

main62411-B5040-B1iS321,331..4FC..DLX..PS1201112-201711

LT.GRAY,TRIM1#

main62411-B5040-B1iS321,331..4FC..DLX201711

LT.GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-B5010-B1iS321,331..CR..PS2201112-201711

LT.GRAY,TRIM1#

main62412-B5010-B1iS321,331..CR201711

LT.GRAY,TRIM2#

main62412-B5050-B1iS321,331..4FC..DLX..PS1201112-201711

LT.GRAY,TRIM1#

main62412-B5050-B1iS321,331..4FC..DLX201711

LT.GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-B5010-B0iS321,331..(CR,DLX)..PS2201112-201711

GRAY,TRIM1#

main62413-B5010-C0iS321,331..CR,DLX201711

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90044-67193iS321,331..(CR,DLX)..PS2201112-201711

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-B5010-B0iS321,331..(CR,DLX)..PS1201112-201711

GRAY,TRIM1#

main62414-B5010-C0iS321,331..CR,DLX201711

BLACK,TRIM2#

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-B5010-B1iS321,331..CR..PS2201112-201711

LT.GRAY,TRIM1#

main62471-B5010-B1iS321,331..CR..PS2201112-201711

main62471-B5010-B1iS321,331..CR201711

LT.GRAY,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10167iS321,331..CR201112-201711

main90467-10167iS321,331..CR..PS1201112-201711

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-B5010-B1iS321,331..CR..PS2201112-201711

main62472-B5010-B1iS321,331..CR201711

LT.GRAY,TRIM2#

main62472-B5010-B1iS321,331..CR..PS1201112-201711

LT.GRAY,TRIM1#

62510JRETAINER, QUARTER TRIM

main67771-B2010iS321,331..CR..PS1201112-201711

main67771-B2010iS321,331..CR201711

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-B5010-B0iS321,331..CR201112-201304

sub62510-B5011

main62510-B5010-B0iS321,331..DLX,SPL201112-201304

sub62510-B5011

main62510-B5011-B1iS321,331..CR201711

main62510-B5011-B1iS321,331..CR..PS2201305-201711

main62510-B5011-B1iS321,331..DLX,SPL201711

main62510-B5011-B1iS321,331..(DLX,SPL)..PS1201305-201711

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62510-B5010-B0iS321,331..CR201112-201304

sub62510-B5011

main62510-B5010-B0iS321,331..DLX,SPL201112-201304

sub62510-B5011

main62510-B5011-B1iS321,331..CR201711

main62510-B5011-B1iS321,331..DLX,SPL201711

main62510-B5011-B1iS321,331..(DLX,SPL)..PS1201305-201711

main62510-B5011-B1iS321,331..(DLX,SPL)..PS1201305-201711

62581FCLIP (FOR QUARTER PILLAR GARNISH)

main90467-10167iS321,331..CR..PS1201112-201711

main90467-10167iS321,331..CR..PS1201112-201711

62586ARETAINER, QUARTER TRIM

main67771-B2010iS321,331..CR..PS2201112-201711

main67771-B2010iS321,331..CR201711

62586BRETAINER, QUARTER TRIM, NO.2

main67771-B2010iS321,331..CR,DLX201112-201711

62631ERETAINER, QUATER TRIM

main67771-B2010iS321,331..CR..PS1201112-201711

main67771-B5020-B1iS321,331..DLX,SPL201112-201305

main67771-B5020-B1iS321,331..CR201112-201305

main67771-B5040-B0iS321,331..CR..PS2201305-201710

main67771-B5040-B0iS321,331..(DLX,SPL)..PS1201305-201710

main67771-B5040-C0iS321,331..CR201711

main67771-B5040-C0iS321,331..CR201711

main67771-B5040-C0iS321,331..DLX,SPL201710-201711

main67771-B5040-C0iS321,331..DLX,SPL201710-201711

62638AGARNISH, QUARTER PILLAR, RH

main62638-B5020-B1iS321,331..CR201711

LT.GRAY,TRIM2#

main62638-B5020-B1iS321,331..CR..PS1201112-201711

LT.GRAY,TRIM1#

main62638-B5020-B1iS321,331..CR..PS1201112-201711

62639AGARNISH, QUARTER PILLAR, LH

main62639-B5020-B1iS321,331..CR..PS1201112-201711

LT.GRAY,TRIM1#

main62639-B5020-B1iS321,331..CR201711

LT.GRAY,TRIM2#

main62639-B5020-B1iS321,331..CR..PS1201112-201711

64718DCOVER, DECK TRIM SERVICE HOLE

main64718-B5010-B0iS321,331..CR..PS1201112-201711

GRAY,TRIM1#

main64718-B5010-C0iS321,331..CR201711

BLACK,TRIM2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-B5020-B1iS321,331..CR..PS1201112-201711

-,TRIM1#

main64730-B5020-C1iS321,331..CR201711

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-B5020-B1iS321,331..CR..PS2201112-201711

-,TRIM1#

main64740-B5020-C1iS321,331..CR201711

BLACK,TRIM2#

67771HRETAINER, DOOR TRIM

main67771-B2010iS321,331..4FC..DLX..PS1201112-201711

67772RCAP, DOOR TRIM RETAINER

main67772-87701iS321,331..DLX,SPL201112-201711

7152

7552

C2357EGROMMET

main90041-89066iS321,331..CR..PS1201112-201711

9004167039

main90041-67039

9354055012

main93540-55012

9354056012

main93540-56012

40 parts on this diagram · 1 diagram in section
