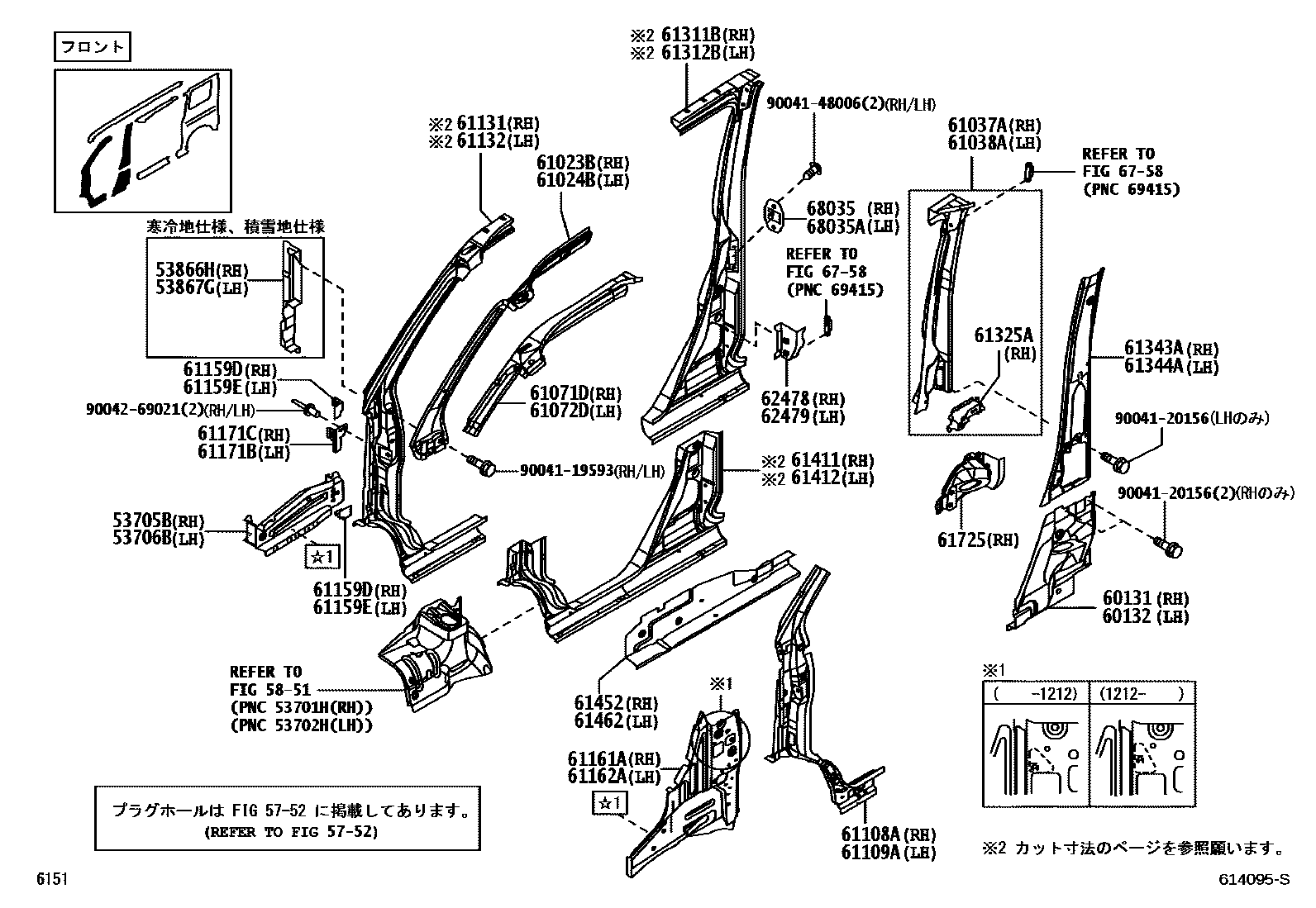

SIDE MEMBER
53705BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53866HSEAL, FRONT FENDER TO COWL SIDE, RH
53867GSEAL, FR FENDER TO COWL SIDE, LH
5752
5851
60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH
60132PILLAR SUB-ASSY, CENTER BODY, NO.2 LH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61071DREINFORCE SUB-ASSY, NO.1 PILLAR, UPPER RH
61072DREINFORCE SUB-ASSY, NO.1 PILLAR, UPPER LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61159DRETAINER, SIDE PANEL, NO.2 RH
61159ERETAINER, SIDE PANEL, NO.2 LH
61161APILLAR, FRONT BODY, INNER RH
61171BSTIFFENER, SIDE PANEL, LOWER NO.2
61171CSTIFFENER, SIDE PANEL, NO.1
61325AREINFORCEMENT, CENTER BODY PILLAR, CENTER RH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61725BOX, FUEL INLET
62478PATCH, CENTER PILLAR, RH
62479PATCH, CENTER PILLAR, LH
6758
68035BRACKET SUB-ASSY, SLIDE DOOR CATCH, RH
68035ABRACKET SUB-ASSY, SLIDE DOOR CATCH, LH
9004119593
main90041-19593
9004120156
main90041-20156
9004148006
main90041-48006
9004269021
main90042-69021
43 parts on this diagram · 5 diagrams in section
