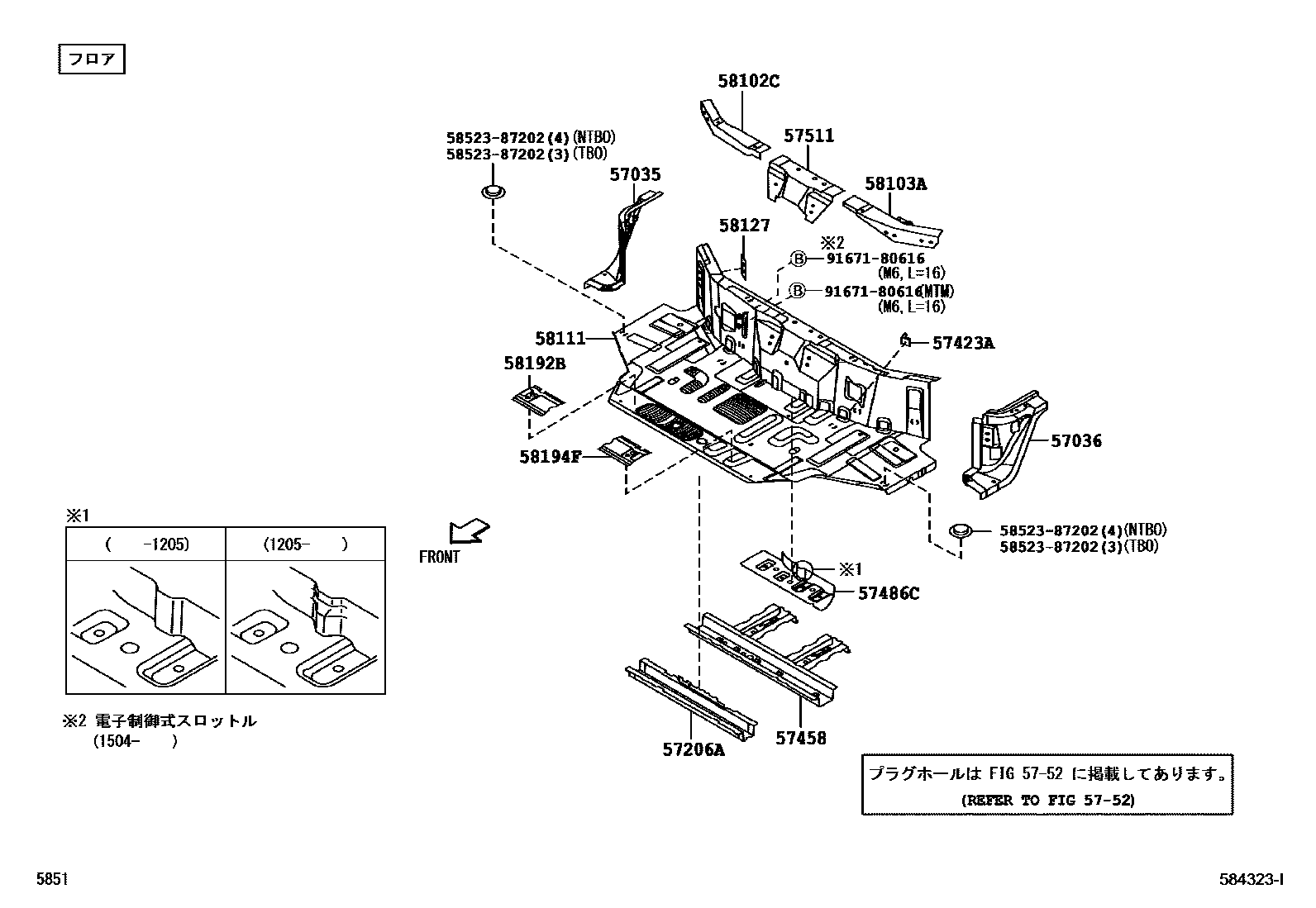

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1��� 0002 1���� 0003 1��� 0004 1����

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-B5010iS321,331..SPL..PS2201112-201711

main57035-B5020iS321,331..TBO201112-201212

main57035-B5021iS321,331..TBO..PS1201212-201711

main57035-B5030iS321,331..(CR,DLX)..NTBO201112-201212

main57035-B5031iS321,331..(CR,DLX)..NTBO..PS2201212-201711

main57035-B5060iS321,331..TBO201711

main57035-B5070iS321,331..SPL201711

main57035-B5080iS321,331..(CR,DLX)..NTBO201711

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-B5010iS321,331..SPL..PS1201112-201711

main57036-B5020iS321,331..TBO201112-201212

main57036-B5021iS321,331..TBO..PS2201212-201711

main57036-B5030iS321,331..(CR,DLX)..NTBO201112-201212

main57036-B5031iS321,331..(CR,DLX)..NTBO..PS2201212-201711

main57036-B5040iS321,331..TBO201711

main57036-B5050iS321,331..(CR,DLX)..NTBO201711

main57036-B5060iS321,331..SPL201711

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-B5010iS321,331201112-201210

sub57206-B5011

main57206-B5011iS321,331..PS1201211-201711

main57206-B5020iS321,331201711

57423ACLAMP, FRONT FLOOR

main57423-97501iS321,331201112-201711

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-B5012iS321201702-201711

sub57408-B5022

main57408-B5020iS321,331201112-201210

sub57408-B5021

main57408-B5021iS321,331..PS2201211-201701

sub57408-B5022

main57408-B5022iS331201702-201711

main57408-B5030iS321201711

main57408-B5040iS331201711

57486CREINFORCEMENT, FRONT FLOOR CROSS, NO.2

main57165-B5010iS321,331201112-201205

main57165-B5011iS321,331..PS1201205-201711

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57509-B5010iS321,331..PS1201112-201711

main57509-B5020iS321,331201711

5752

58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH

main58102-B5011iS321,331..PS1201112-201711

main58102-B5020iS321,331201711

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-B5010iS321,331..NTBO..PS1201112-201711

main58103-B5020iS321,331..TBO..PS2201112-201711

main58103-B5040iS321,331..NTBO201711

main58103-B5050iS321,331..TBO201711

58111PAN, FRONT FLOOR

main58111-B5030iS321,331..CR,DLX201112-201711

main58111-B5031iS321,331..(CR,DLX)..PS1201212-201711

main58111-B5090iS321,331..SPL201711

main58111-B5120iS321,331..CR,DLX201711

58127PATCH, FRONT FLOOR PANEL

main58127-B5010iS321,331201112-201711

58192BPLATE, FRONT FLOOR, REAR

main58192-B5010iS321,331201112-201711

58194FPLATE, FRONT FLOOR, REAR NO.2

main58192-B5040iS321,331..PS2201112-201711

5852387202COVER, FRONT SEAT BRACKET

main58523-87202

9167180616

main91671-80616

16 parts on this diagram · 4 diagrams in section
