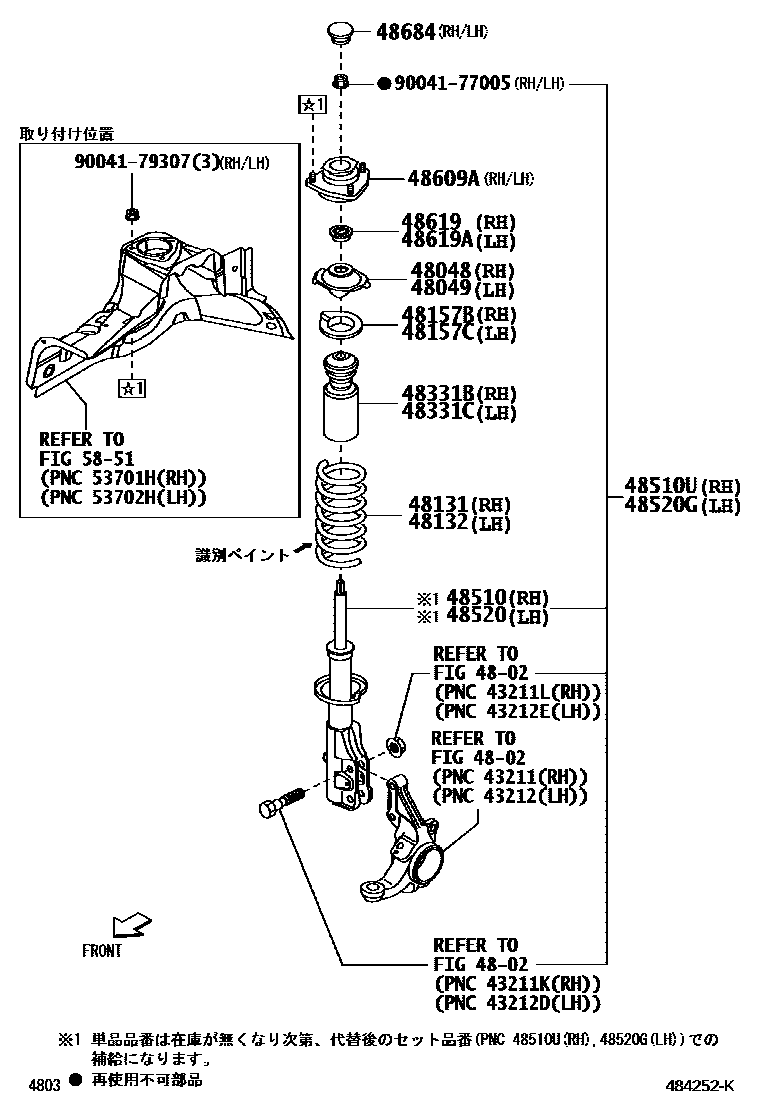

FRONT SPRING & SHOCK ABSORBER

4802

48048SEAT SUB-ASSY, SPRING, RH

main48470-97403iS321,331..PS1201112-201711

48049SEAT SUB-ASSY, SPRING, LH

main48470-97403iS321,331..PS1201112-201711

48131SPRING, FRONT COIL, RH

main48131-B5010iS321..4FC..NTBO201112-201711

main48131-B5020iS331..TBO..PS2;S331..5F..NTBO..PS2201112-201711

main48131-B5060iS321..4FC..NTBO..PS1201112-201511

main48131-B5070iS331..4FC..NTBO..PS1201112-201511

main48131-B5210iS321201711-202112

main48131-B5220iS331201711-202112

48132SPRING, FRONT COIL, LH

main48131-B5010iS321..TBO..PS2;S321..5F..NTBO..PS2201112-201711

main48131-B5020iS331..TBO..PS2;S331..5F..NTBO..PS2201112-201711

main48131-B5060iS321..4FC..NTBO..PS2201112-201511

main48131-B5070iS331..4FC..NTBO..PS2201112-201511

main48131-B5210iS321201711

main48131-B5220iS331201711

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-B1010iS321,331..PS2201112-201711

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-B1010iS321,331..PS1201112-201711

48331BBUMPER, FRONT SPRING, RH

main48331-B5020iS321,331..PS2201112-201711

48331CBUMPER, FRONT SPRING, LH

main48331-B5020iS321,331201112-201711

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-B5011iS321,331..5F..(DLX,SPL)201112-201212

sub48510-B9195

main48510-B5012iS321,331..DLX,SPL201212-201307

sub48510-B5013

main48510-B5013iS321,331..DLX,SPL201308-201711

sub48510-B9200

main48510-B5021iS321,331..5F..(DLX,SPL)201112-201212

sub48510-B9205

main48510-B5021iS321,331..5F..(DLX,SPL)201112-201212

sub48510-B9205

main48510-B5022iS321,331..CR201212-201307

sub48510-B5023

main48510-B5023iS321,331..DLX,SPL201308-201706

sub48510-B5024

main48510-B5023iS321,331..(DLX,SPL)..PS1201308-201706

sub48510-B5024

main48510-B5024iS321,331..DLX,SPL201707-201711

sub48510-B9210

main48510-B5024iS321,331..CR201707-201711

sub48510-B9210

main48510-B5060iS321,331..4FC..(DLX,SPL)201112-201212

sub48510-B9225

main48510-B5070iS321,331..4FC..(DLX,SPL)201112-201212

sub48510-B9230

main48510-B5070iS321,331..4FC..CR..NTBO201112-201212

sub48510-B9230

main48510-B5180iS321,331201711

sub48510-B9245

48510UABSORBER SET, SHOCK, FRONT RH

main48510-B9195iS321,331..5F..(DLX,SPL)201112-201212

sub48510-B9205

main48510-B9200iS321,331..DLX,SPL201212-201711

sub48510-B9210

main48510-B9205iS321,331..TBO;S321,331..5F..CR..NTBO201112-201212

main48510-B9205iS321,331..5F..(DLX,SPL)201112-201212

main48510-B9210iS321,331..(DLX,SPL)..PS1201212-201711

main48510-B9210iS321,331..DLX,SPL201212-201711

main48510-B9225iS321,331..4FC..(DLX,SPL)201112-201212

sub48510-B9230

main48510-B9230iS321,331..4FC..CR..NTBO201112-201212

main48510-B9230iS321,331..4FC..CR..NTBO201112-201212

main48510-B9245iS321,331201711

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-B5011iS321,331..5F..(DLX,SPL)201112-201212

sub48520-B9195

main48520-B5012iS321,331..DLX,SPL201212-201307

sub48520-B5013

main48520-B5013iS321,331..DLX,SPL201308-201711

sub48520-B9200

main48520-B5021iS321,331..5F..(DLX,SPL)201112-201212

sub48520-B9205

main48520-B5021iS321,331..5F..(DLX,SPL)201112-201212

sub48520-B9205

main48520-B5022iS321,331..CR201212-201307

sub48520-B5023

main48520-B5023iS321,331..DLX,SPL201308-201706

sub48520-B5024

main48520-B5023iS321,331..CR..PS1201308-201706

sub48520-B5024

main48520-B5024iS321,331..CR201707-201711

sub48520-B9210

main48520-B5024iS321,331..CR201707-201711

sub48520-B9210

main48520-B5060iS321,331..4FC..(DLX,SPL)201112-201212

sub48520-B9225

main48520-B5070iS321,331..4FC..CR..NTBO201112-201212

sub48520-B9230

main48520-B5070iS321,331..4FC..CR..NTBO201112-201212

sub48520-B9230

main48520-B5180iS321,331201711

sub48520-B9245

48520GABSORBER SET, SHOCK, FRONT LH

main48520-B9195iS321,331..5F..(DLX,SPL)201112-201212

sub48520-B9205

main48520-B9200iS321,331..DLX,SPL201212-201711

sub48520-B9210

main48520-B9205iS321,331..TBO;S321,331..5F..CR..NTBO201112-201212

main48520-B9205iS321,331..5F..(DLX,SPL)201112-201212

main48520-B9210iS321,331..DLX,SPL201212-201711

main48520-B9210iS321,331..DLX,SPL201212-201711

main48520-B9225iS321,331..4FC..(DLX,SPL)201112-201212

sub48520-B9230

main48520-B9230iS321,331..4FC..CR..NTBO201112-201212

main48520-B9230iS321,331..4FC..CR..NTBO201112-201212

main48520-B9245iS321,331201711

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-B5010iS321,331201112-201711

48619BEARING, STRUT MOUNTING, RH

main48619-B2010iS321,331201112-201711

48619ABEARING, STRUT MOUNTING, LH

main48619-B2010iS321,331201112-201711

48684COVER, BEARING DUST

main48684-87202iS321,331201112-201309

main48684-B2010iS321,331201310-201711

5851

9004177005

main90041-77005

9004179307

main90041-79307

20 parts on this diagram · 1 diagram in section
