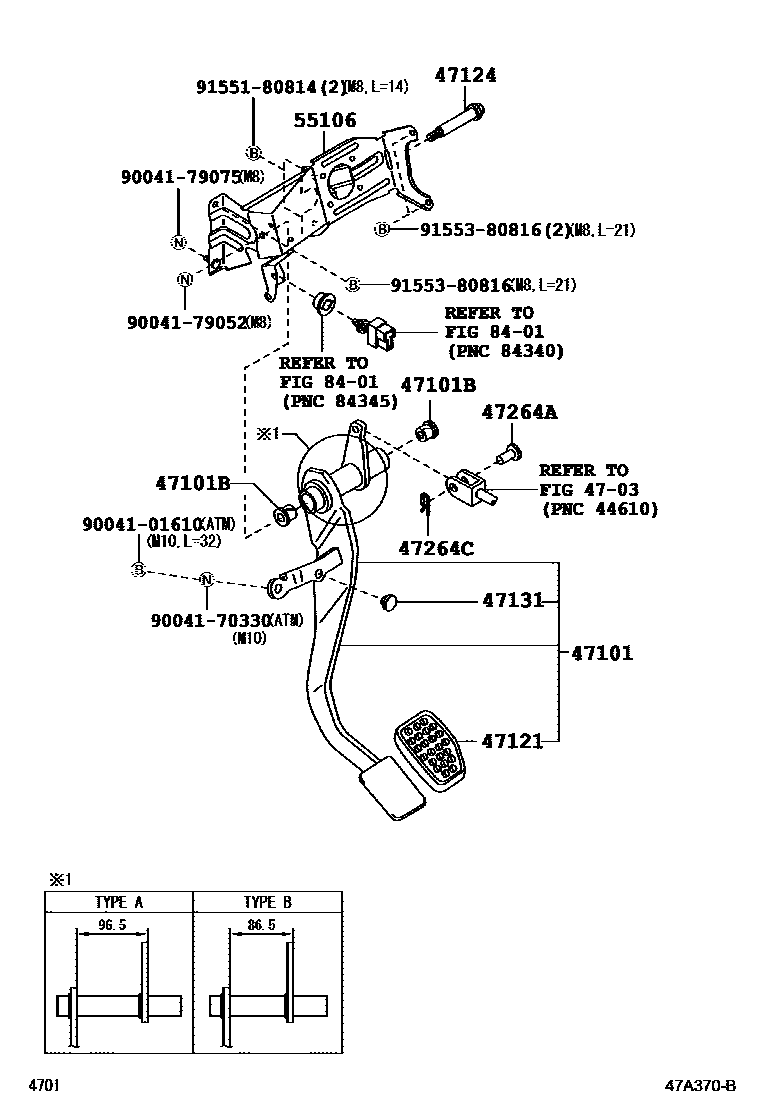

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-B5030iS321,331..5F;S331..4FC..NTBO;S321..4FC..(CR,SPL)..NTBO201112-201212

main47101-B5040iS321..4FC..DLX201112-201212

main47101-B5050iS321,331..4FC..TBO..PS1201112-201504

main47101-B5080iS321,331201504-201711

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121iS321,331..PS1201112-201711

47121PAD, BRAKE PEDAL

main31321-97501iS321,331201112-201711

47124SHAFT, BRAKE PEDAL

main47124-B5010iS321,331201112-201711

47131CUSHION(FOR STOP LAMP SWITCH)

main90045-40158iS321,331201112-201711

main90045-40226iS321,331..5F..PS1;S321,331..4FC..NTBO..PS1201112-201504

47264APIN(FOR PUSH ROD)

main90042-40151iS321,331..PS1201112-201711

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iS321,331..PS2201112-201711

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B5010iS321,331..5F;S321,331..4FC..NTBO201112-201212

main55106-B5030iS321,331..4FC..TBO201112-201212

main55106-B5040iS321,331..PS1201212-201504

main55106-B5060iS321,331201504-201711

main55106-B5080iS321,331201711

8401

9004101610

main90041-01610

9004170330

main90041-70330

9004179052

main90041-79052

9004179075

main90041-79075

9155180814

main91551-80814

9155380816

main91553-80816

16 parts on this diagram · 2 diagrams in section
