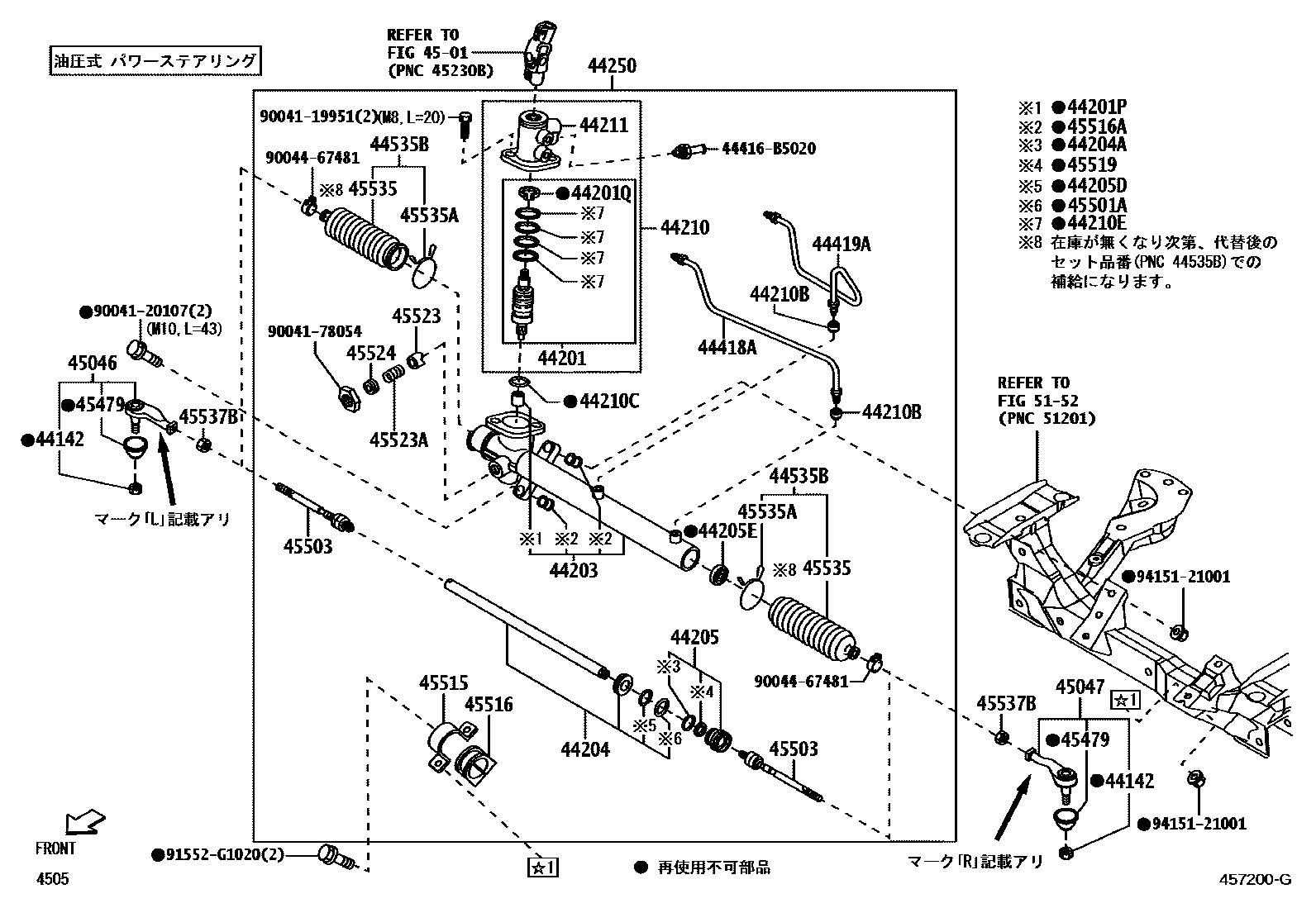

FRONT STEERING GEAR & LINK
44142NUT, LOCK
44201VALVE SUB-ASSY, POWER STEERING CONTROL
44201PBEARING(FOR POWER STEERING CONTROL VALVE LOWER)
44201QRING, O(FOR POWER STEERING CONTROL VALVE)
44203HOUSING SUB-ASSY, POWER STEERING RACK
44204RACK SUB-ASSY, POWER STEERING
44204ARING(FOR RACK STEERING PISTON)
44205STOPPER SUB-ASSY, CYLINDER END
44205DRING, O(FOR POWER STEERING RACK BUSH)
44205ESEAL, OIL(FOR POWER STEERING RACK BUSH)
44210VALVE ASSY, POWER STEERING CONTROL
44210BSEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210CRING, O(FOR POWER STEERING CONTROL VALVE)
44210ESEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44211HOUSING, CONTROL VALVE
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44418ATUBE, STEERING RIGHT TURN PRESSURE
44419ATUBE, STEERING LEFT TURN PRESSURE
44535BBOOT, STEERING RACK NO.1(FOR POWER STEERING)
4501
45046END SUB-ASSY, TIE ROD, RH
sub45047-B9440
45047END SUB-ASSY, TIE ROD, LH
sub45046-B9470
45479SEAL, STEERING LINK JOINT DUST
45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)
45503END SUB-ASSY, STEERING RACK
45515BRACKET, STEERING RACK HOUSING, NO.2
45516GROMMET, STEERING RACK HOUSING, NO.1
45516ABUSH, STEERING RACK HOUSING, NO.1
45519PACKING, STEERING RACK HOUSING
45523GUIDE, RACK(FOR STEERING GEAR)
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45524CAP, STEERING RACK GUIDE SPRING
45535ACLAMP(FOR STEERING RACK BOOT)
5152
44416B5020TUBE, RETURN(FOR STEERING GEAR OUTLET)
main44416-B5020
9004119951
main90041-19951
9004120107
main90041-20107
9004178054
main90041-78054
9004467481
main90044-67481
91552G1020
main91552-G1020
9415121001
main94151-21001
43 parts on this diagram · 2 diagrams in section
