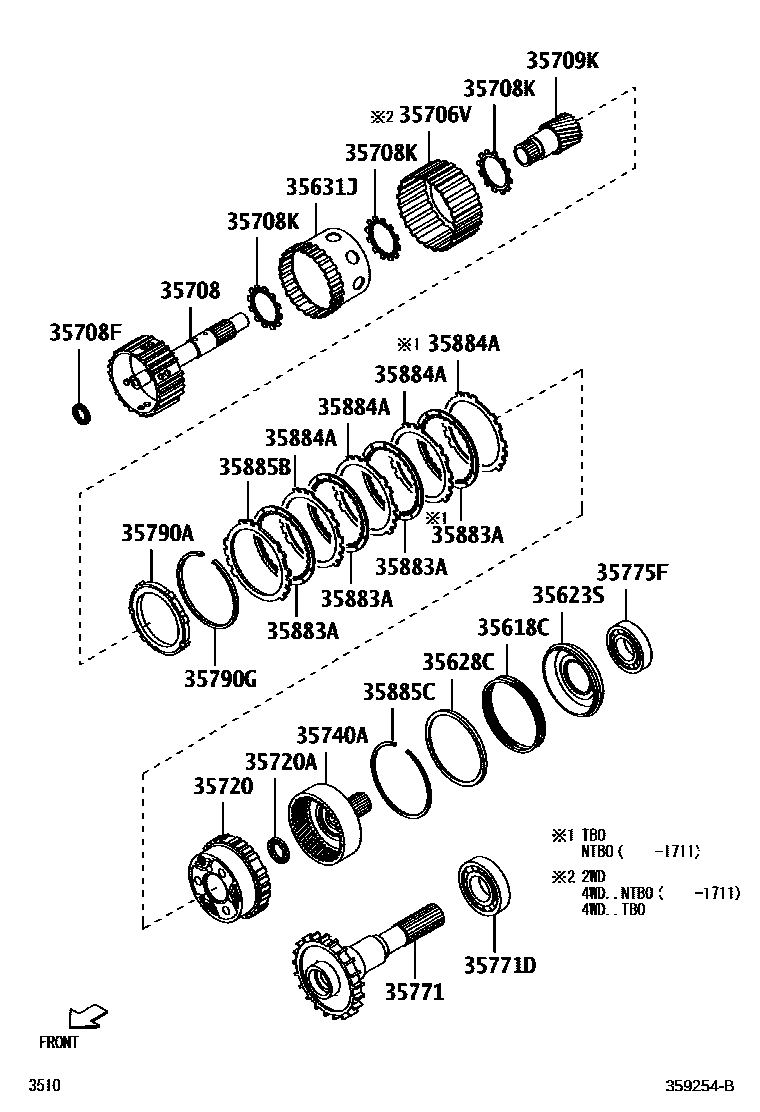

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1 0003 1

35618CRETURN SPRING SUB-ASSY, 1ST & REVERSE

main35618-B1010iS321,331..4FC¥530201504-201711

35623SPISTON,1ST & REVERSE BRAKE

main35623-97204iS321,331..4FC..PS1¥3,250201112-201504

main35623-B1020iS321,331..4FC..TBO¥2,790201504-201711

main35623-B1030iS321,331..4FC..NTBO¥3,090201711

35628CSEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING

main35628-97201iS321,331..4FC..PS1¥560201112-201504

main35628-97202iS321,331..4FC¥440201504-201711

35631JHUB, FORWARD CLUTCH, NO.1

main35631-97207iS321,331..4FC..PS1¥10,100201112-201504

main35631-B1010iS321,331..4FC¥8,900201504-201711

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-97202iS321,331..4FC..PS1¥7,100201112-201504

main35706-97203iS331..4FC..TBO..PS6¥10,900201504-202110

35708SHAFT SUB-ASSY, INTERMEDIATE

main35708-87204iS321,331..4FC..PS1¥12,100201112-201504

main35708-97203iS331..4FC..PS6¥7,900201504-202110

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90043-74041iS321,331..4FC..PS1¥1,170201112-201504

main90043-74051iS321,331..4FC¥740201504-201711

35708KBEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)

main90043-74034iS321,331..4FC..PS1¥950201112-201504

main90043-74047iS321,331..4FC¥740201504-201711

35709KGEAR SUB-ASSY, REAR PLANETARY

main35709-97202iS321,331..4FC..PS1¥7,000201112-201504

main35709-97204iS321,331..4FC¥4,480201504-201711

35720GEAR ASSY, FRONT PLANETARY

main35720-97211iS321,331..4FC¥25,900201504-201711

main35720-B5010iS321,331..4FC¥24,100201112-201307

sub35720-B5050¥33,400

main35720-B5050iS321,331..4FC..PS1¥33,400201307-201504

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90043-74027iS321,331..4FC..PS1¥1,140201112-201504

main90043-74043iS321,331..4FC¥740201504-201711

35740AGEAR ASSY,FRONT PLANETARY RING

main35740-97201iS321..4FC¥10,500201504-201711

main35740-B5010iS331..4FC¥10,500201504-201711

35771SHAFT, OUTPUT

main35771-B1030iS321..4FC¥21,900201504-201711

main35771-B1040iS331..4FC¥19,800201504-201711

35771DBALL BEARING, OUTPUT SHAFT

main90043-63385iS321,331..4FC¥940201504-201711

35775FBEARING, RADIAL BOLL

main90043-63273iS321,331..4FC¥840201504-201711

main97103-06007iS321,331..4FC..PS1¥1,120201112-201504

35790ACLUTCH ASSY, 1 WAY

main35790-B1040iS321,331..4FC¥9,500201504-201711

35790GHOLE SNAP RING (FOR 1WAY CLUTCH)

main90045-21119iS321,331..4FC..PS1¥920201112-201504

main90045-21120iS321,331..4FC..PS1¥920201112-201504

main90045-21121iS321,331..4FC..PS1¥920201112-201504

main90045-21123iS321,331..4FC..PS1¥920201112-201504

main90045-21174iS321,331..4FC¥560201504-201711

35883ADISC, BRAKE

main35883-B1020iS321,331..4FC¥870201504-201706

sub35883-B5010¥870

main35883-B2030iS321,331..4FC..PS1¥1,110201112-201504

main35883-B5010iS321,331..4FC..TBO¥870201707-201711

35884APLATE,BRAKE

main35884-97203iS321,331..4FC..PS1¥2,480201112-201504

main35884-B1010iS321,331..4FC..NTBO¥770201504-201711

35885BFLANGE, BRAKE

main35885-B1010iS321,331..4FC¥1,420201504-201711

main35885-B1020iS321,331..4FC¥1,490201504-201711

main35885-B1030iS321,331..4FC¥1,570201504-201711

main35885-B1040iS321,331..4FC¥1,650201504-201711

main35885-B1050iS321,331..4FC¥1,730201504-201711

main35885-B1060iS321,331..4FC¥1,830201504-201711

35885CRING,HOLE SNAP (FOR CLUTCH PLATE)

main90045-21194iS321,331..4FC¥560201504-201711

21 parts on this diagram · 2 diagrams in section
