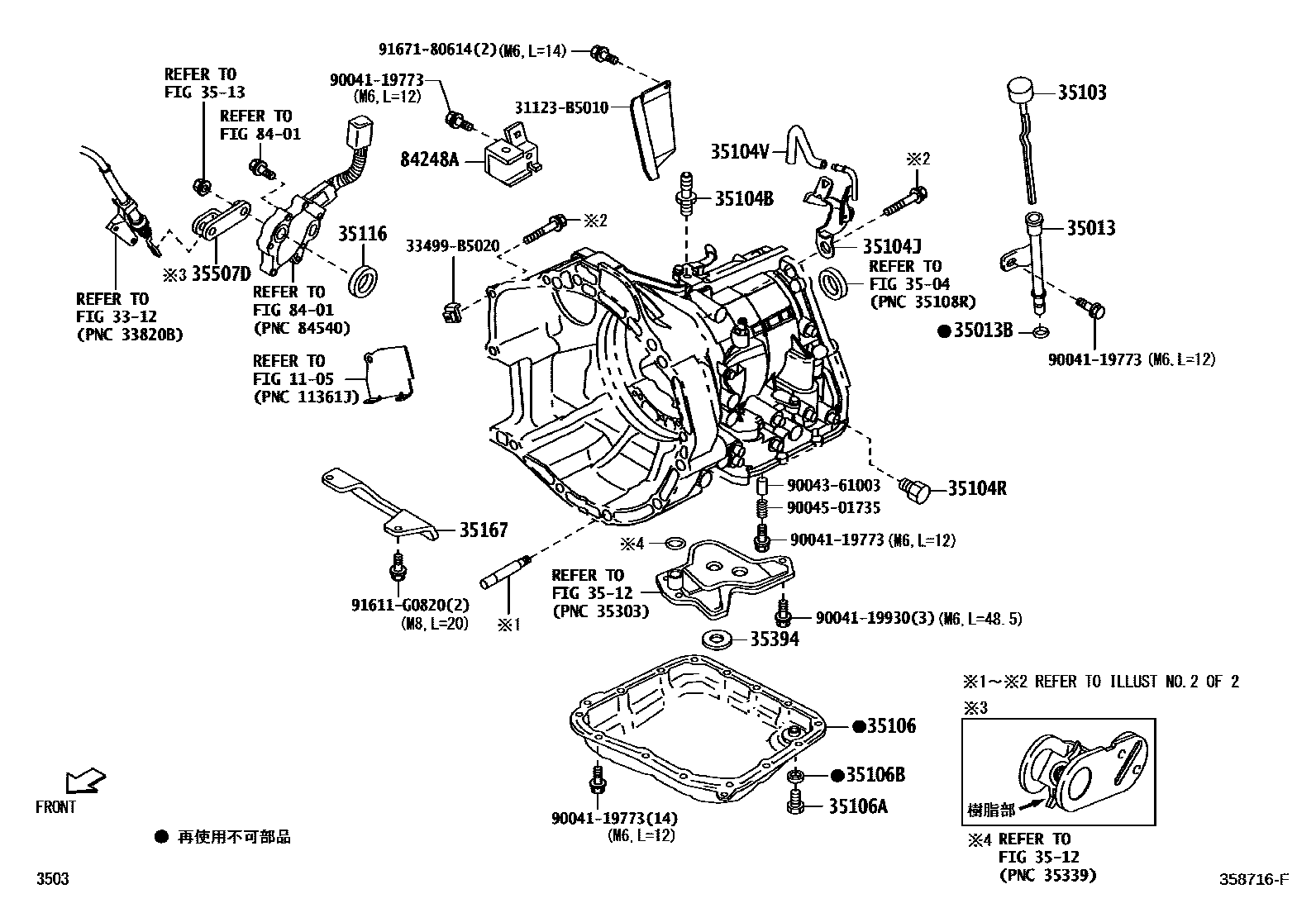

TRANSMISSION CASE & OIL PAN (ATM)
1105
3312
35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)
3504
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104BPLUG, BREATHER, NO.1 (ATM)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104VHOSE (FOR BREATHER PLUG)
sub90044-44091
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35116SEAL, TRANSMISSION CASE DUST
3512
3513
35167PROTECTOR, TRANSMISSION OIL PAL
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35507DLEVER, TRANSMISSION CONTROL SHAFT
8401
84248ACLAMP, SWITCH HARNESS
31123B5010COVER, CLUTCH HOUSING, NO.2
main31123-B5010
33499B5020
main33499-B5020
9004119773
main90041-19773
9004119930
main90041-19930
9004361003
main90043-61003
9004501735
main90045-01735
91611G0820
main91611-G0820
9167180614
main91671-80614
29 parts on this diagram · 4 diagrams in section
