VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

1703

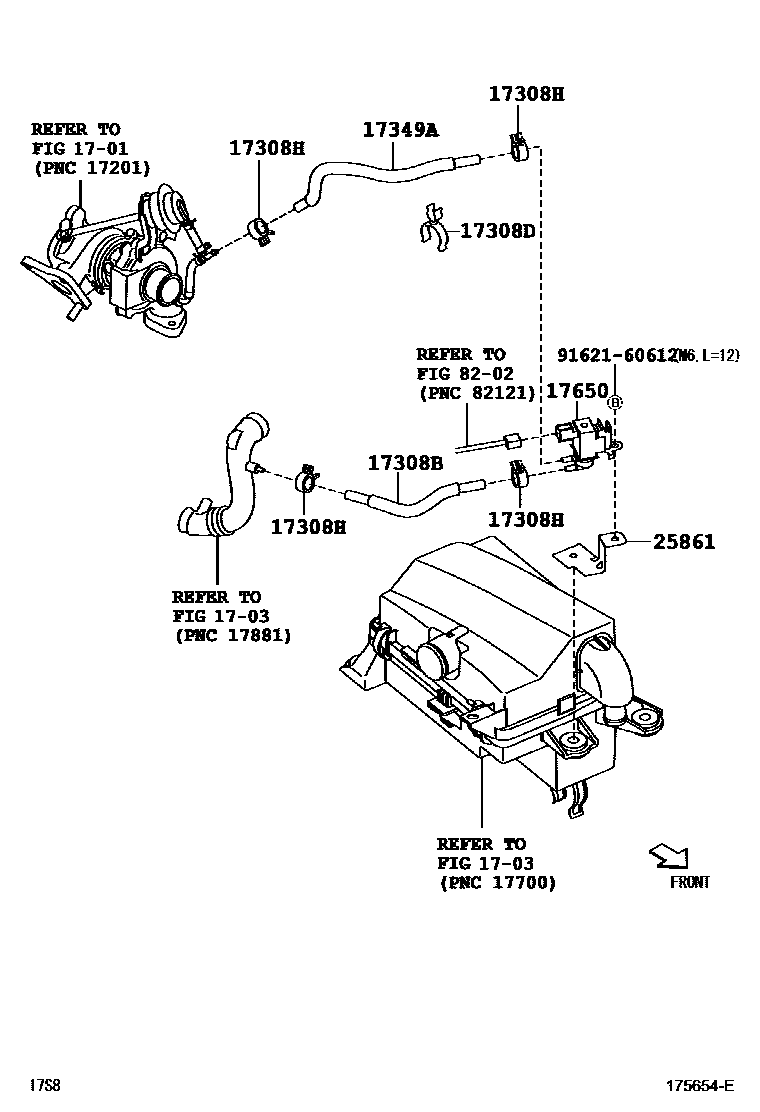

17308BHOSE SUB-ASSY, VACUUM

main17308-B2080iKFDET..S321,331..PS2201112-201711

main17308-B5010iKFDET,KFVET..S321,331201711

17308DCLAMP, NO.2(FOR VACUUM HOSE)

main90044-64848iKFDET..S321,331..PS1201112-201711

17308HCLAMP, NO.6(FOR VACUUM HOSE)

main90044-67271iKFDET..S321,331..PS1201112-201711

17349AHOSE, AIR, NO.9

main17294-B2032iKFDET..S321,331..PS1201112-201711

main17294-B5020iKFDET,KFVET..S321,331201711

17650VALVE ASSY, VACUUM SWITCHING

main17650-97502iKFDET..S321,331..PS2201112-201711

25861BRACKET, VACUUM SWITCHING VALVE

main25861-97502iKFDET..S321,331..PS1201112-201711

main25861-B5020iKFDET,KFVET..S321,331201711

8202

9162160612

main91621-60612

10 parts on this diagram · 4 diagrams in section
