EXHAUST PIPE

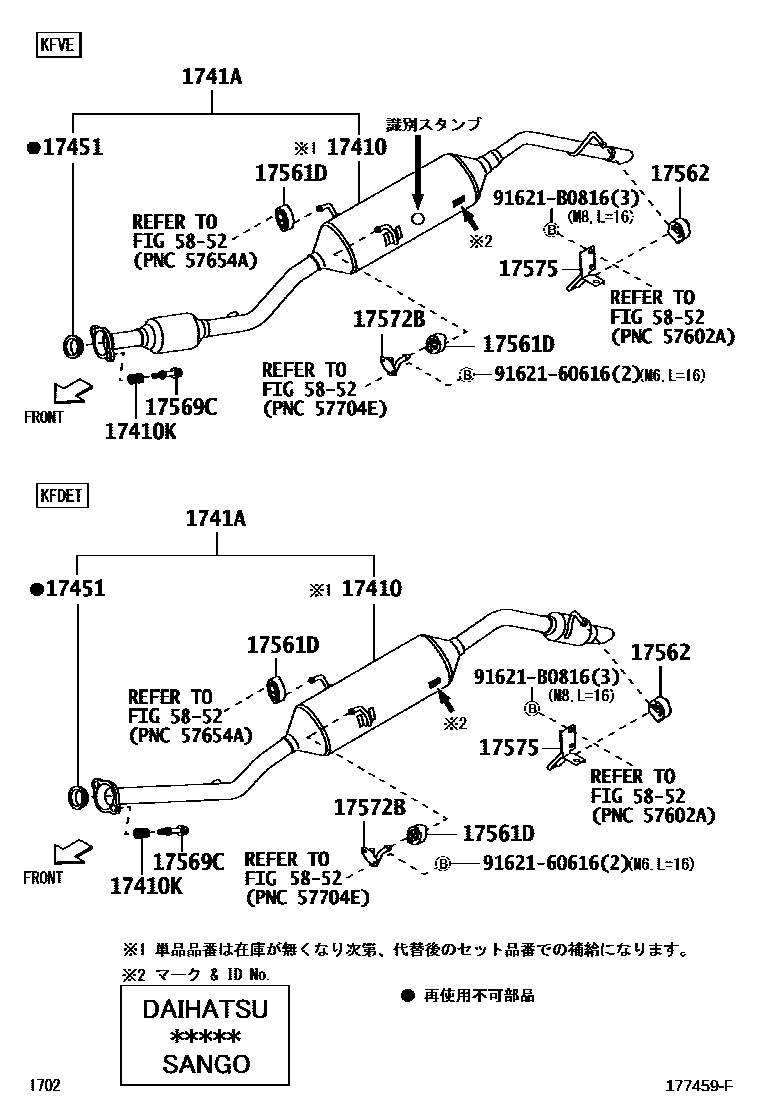

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17400-B2011i201112-201310
sub17400-B2140
main17400-B2090i201112-201212
sub17400-B9150
main17400-B2100i201112-201310
sub17400-B2150
main17400-B2140i201310-201504
sub17400-B9180
main17400-B2150i201310-201504
sub17400-B9190
main17400-B5140i201511-201711
sub17400-B9220
main17400-B5170i201212-201310
sub17400-B5200
main17400-B5190i201711-201712
sub17400-B9240
main17400-B5191i201712-202009
sub17400-B9240
main17400-B5200i201310-201511
sub17400-B9250
main17400-B5240i201504-201711
sub17400-B9270
main17400-B5250i201504-201712
sub17400-B5251
main17400-B5251i201712-202009
main17400-B5270i201711-201712
sub17400-B9290
main17400-B5271i201712-202112
sub17400-B9290
17410KSPRING, EXHAUST PIPE
main17152-97503i201112-201711
1741APIPE SET, EXHAUST
main17400-B9150i201112-201212
main17400-B9180i201112-201504
main17400-B9190i201112-201504
main17400-B9220i201511-201711
main17400-B9240i201711-202009
main17400-B9250i201212-201511
main17400-B9270i201504-201711
main17400-B9280i201504-202009
main17400-B9290i201711-202112
main17400-B9360i202009-202112
main17400-B9380i202009-202112
17451GASKET, EXHAUST PIPE
main17451-B5020i201112-201711
17561DSUPPORT, EXHAUST PIPE, NO.1
main17567-B2010i201112-201711
17562SUPPORT, EXHAUST PIPE, NO.2
main17567-87208i201112-201711
17569CBOLT, EXHAUST PIPE SUPPORT
main17569-97501i201112-201711
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-B5010i201112-201711
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
main17575-97504i201112-201711
5852
9162160616
main91621-60616
91621B0816
main91621-B0816

12 parts on this diagram · 2 diagrams in section
