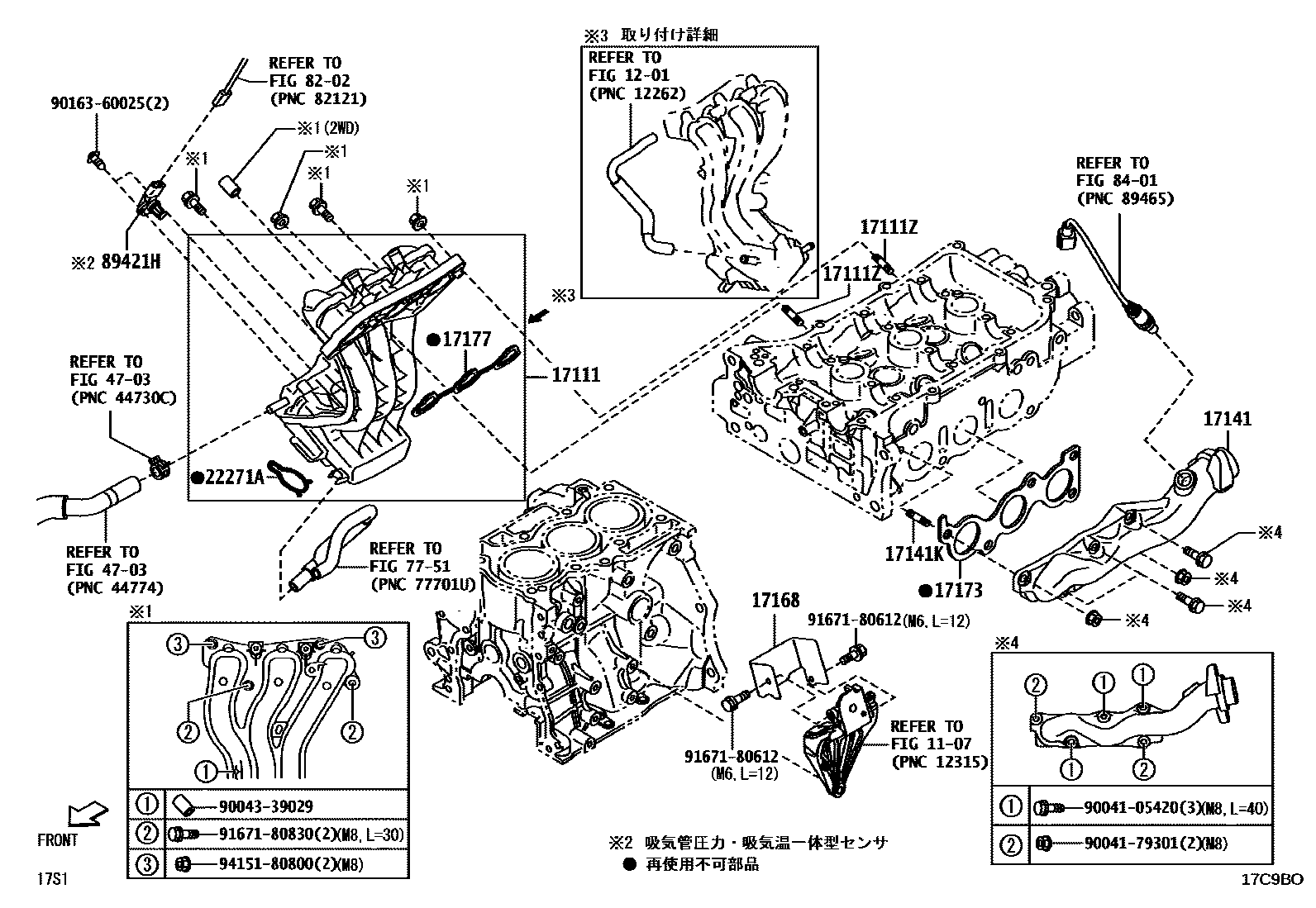

MANIFOLD

0001 1 0002 1 0003 1������ 0004 1������ 0005 1���� ������ 0006 1���� ������ 0007 1����������ASSY 0008 1����������ASSY 0009 1���������� ���

1107

1201

17111MANIFOLD, INTAKE

main17120-B2050iKF#..S321,331..PS1201112-201504

main17120-B2120iKF#..S321,331201504-201711

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90041-26003iKF#..S321,331201112-202008

sub90041-26012

main90041-26012iKFV#..S321,331202009

17141MANIFOLD, EXHAUST

main17104-B2050iKFDET..S321,331..PS1201112-201711

main17141-B2040iKFVE..S321,331..PS1201112-201711

main17141-B5010iKFVE..S321,331201711

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90041-16487iKF#..S321,331..PS1201112-201711

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-B2010iKFVE..S321,331201112-201711

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-B2021iKFDET,KFV#..S321,331201112-201711

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B2010iKFDET,KFV#..S321,331201112-201711

22271AGASKET, THROTTLE BODY

main22271-97501iKF#..S321,331201112-201503

main22271-B2040iKFDET,KFV#..S321,331201504-201711

4703

7751

8202

8401

89421HSENSOR, VACUUM

main89421-B2010iS321,331..NTBO201112-201307

sub89421-B2040

main89421-B2020iS321,331..TBO201112-201711

main89421-B2040iS321,331..NTBO..PS2201307-201711

main89421-B2050iS321,331..NTBO202008

main89421-B5010iS321,331..NTBO201711-202007

sub89421-B2050

9004105420

main90041-05420

9004179301

main90041-79301

9004339029

main90043-39029

9016360025

main90163-60025

9167180612

main91671-80612

9167180830

main91671-80830

9415180800

main94151-80800

22 parts on this diagram · 9 diagrams in section
