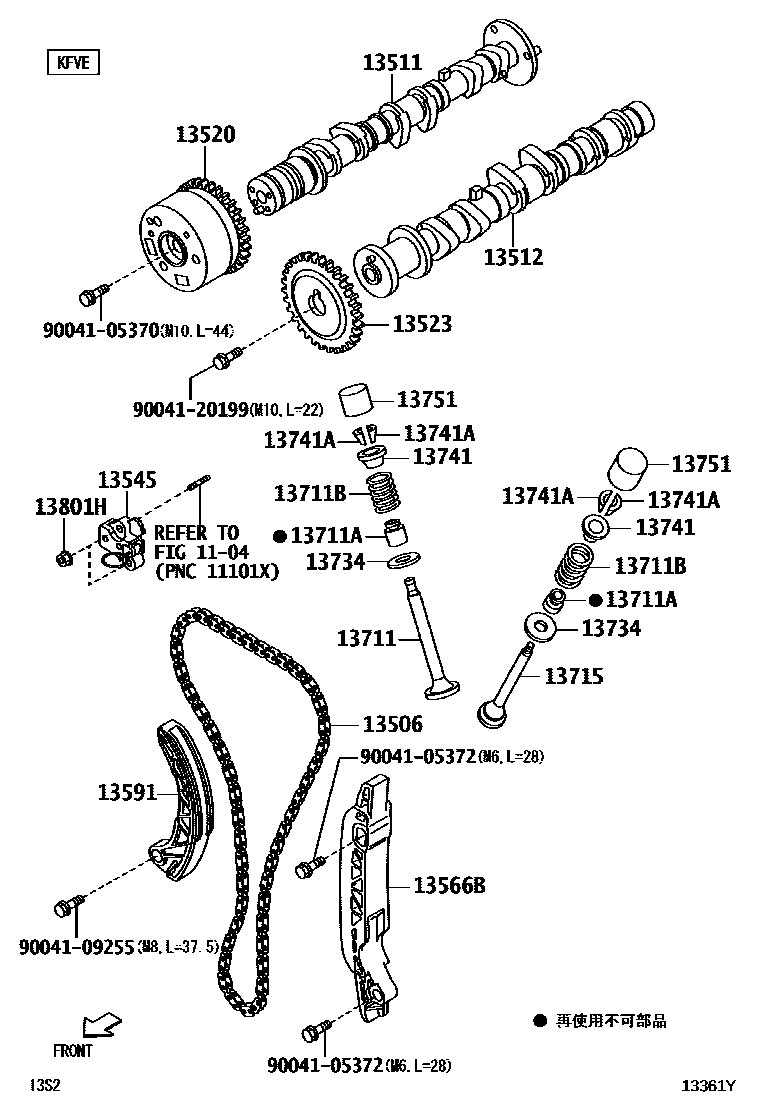

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1104

13506CHAIN SUB-ASSY

main13506-B2040iKF#..S321,331201112-201307

sub13506-B2050

main13506-B2050iKF#..S321,331201307-201404

sub13506-B2100

main13506-B2100iKFDET,KFVET..S321,331201404-201711

main13506-B2110iKFVE..S321,331201504-201711

13511CAMSHAFT

main13501-B2011iKFVE..S321,331..PS1201112-201711

main13501-B2021iKFDET..S321,331..PS1201112-201504

main13501-B2041iKFDET..S321,331201504-201711

13512CAMSHAFT, NO.2

main13502-B2010iKF#..S321,331..PS1201112-201504

main13502-B2030iKFVE..S321,331201504-201711

main13502-B2040iKFDET,KFVET..S321,331201504-201711

13520SPROCKET ASSY, CAMSHAFT TIMING

main13520-B2010iKFVE..S321,331..PS1201112-201504

main13520-B2020iKFVE..S321,331201504-201711

main13520-B2030iKFVET..S321,331202009

main13529-B2021iKFDET..S321,331..PS1201112-202009

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-B2011iKFDET,KFVET..S321,331201112-201711

main13523-B2020iKFVE..S321,331201504-201711

13545PLUNGER, CHAIN TENSIONER

main13545-B2011iKF#..S321,331..PS1201112-201509

sub13545-B2012

main13545-B2012iKFDET,KFVET..S321,331201510-201711

main13545-B2020iKFVE..S321,331201504-201711

13566BGUIDE, TIMING CHAIN

main13566-B2010iKF#..S321,331..PS2201112-201711

13591ARM, TIMING CHAIN TENSION

main13591-B2011iKFDET,KFV#..S321,331201112-201711

13711VALVE, INTAKE

main13711-B2010iKFDET,KFV#..S321,331201112-201711

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90048-12030iKF#..S321,331..PS1201112-201711

13711BSPRING, COMPRESSION(FOR INNER)

main90045-01915iKFDET,KFV#..S321,331201112-201711

main90045-01926iKF#..S321,331..PS1201112-201711

13715VALVE, EXHAUST

main13715-B2010iKFDET,KFV#..S321,331201112-201711

13734SEAT, VALVE SPRING

main13734-B2011iKFDET,KFV#..S321,331201112-201711

13741RETAINER, VALVE SPRING

main13741-B2010iKF#..S321,331..PS1201112-201711

13741ALOCK, VALVE SPRING RETAINER

main90048-13015iKF#..S321,331..PS2201112-201711

13751LIFTER, VALVE

main13751-B2030-06iKF#..S321,331..PS2201112-201711

MARK6

main13751-B2030-08iKF#..S321,331..PS1201112-201711

MARK8

main13751-B2030-10iKF#..S321,331..PS1201112-201711

MARK10

main13751-B2030-12iKF#..S321,331..PS1201112-201711

MARK12

main13751-B2030-14iKFDET,KFV#..S321,331201112-201711

MARK14

main13751-B2030-16iKFDET,KFV#..S321,331201112-201711

MARK16

main13751-B2030-18iKF#..S321,331..PS1201112-201711

MARK18

main13751-B2030-20iKF#..S321,331..PS1201112-201711

MARK20

main13751-B2030-22iKF#..S321,331..PS1201112-201711

MARK22

main13751-B2030-24iKFDET,KFV#..S321,331201112-201711

MARK24

main13751-B2030-26iKF#..S321,331..PS1201112-201711

MARK26

main13751-B2030-28iKF#..S321,331..PS2201112-201711

MARK28

main13751-B2030-30iKFDET,KFV#..S321,331201112-201711

MARK30

main13751-B2030-32iKFDET,KFV#..S321,331201112-201711

MARK32

main13751-B2030-34iKFDET,KFV#..S321,331201112-201711

MARK34

main13751-B2030-36iKF#..S321,331..PS1201112-201711

MARK36

main13751-B2030-38iKF#..S321,331..PS1201112-201711

MARK38

main13751-B2030-40iKFDET,KFV#..S321,331201112-201711

MARK40

main13751-B2030-42iKF#..S321,331..PS1201112-201711

MARK42

main13751-B2030-44iKF#..S321,331..PS2201112-201711

MARK44

main13751-B2030-46iKFDET,KFV#..S321,331201112-201711

MARK46

main13751-B2030-48iKF#..S321,331..PS1201112-201711

MARK48

main13751-B2030-50iKF#..S321,331..PS1201112-201711

MARK50

main13751-B2030-52iKF#..S321,331..PS1201112-201711

MARK52

main13751-B2030-54iKFDET,KFV#..S321,331201112-201711

MARK54

13801HNUT

main90041-70332iKF#..S321,331201512-202008

main90041-79338iKF#..S321,331201112-201511

9004105370

main90041-05370

9004105372

main90041-05372

9004109255

main90041-09255

9004120199

main90041-20199

22 parts on this diagram · 3 diagrams in section
