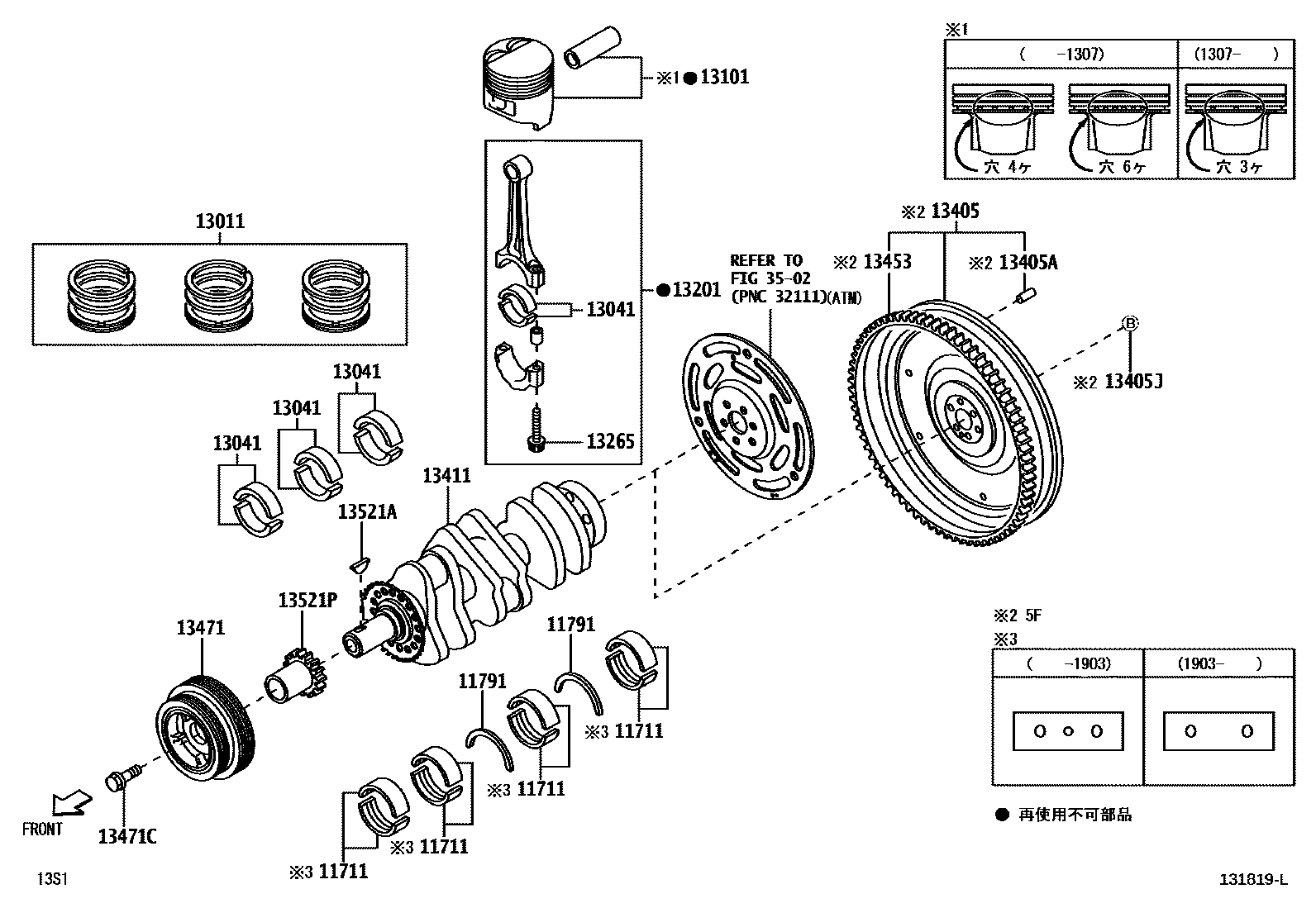

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2011-02iKF#..S321,331..PS1201112-201903

main11701-B2011-03iKF#..S321,331201112-201903

main11701-B2011-04iKF#..S321,331201112-201903

main11701-B2011-05iKF#..S321,331201112-201903

main11701-B2040-02iKFDET,KFV#..S321,331201903

main11701-B2040-03iKFDET,KFV#..S321,331201903

main11701-B2040-04iKFDET,KFV#..S321,331201903

main11701-B2040-05iKFDET,KFV#..S321,331201903

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2010iKF#..S321,331..PS1201112-201711

main11791-B2020iKFDET,KFV#..S321,331201711

13011RING SET, PISTON

main13011-B2041iKF#..S321,331201112-201307

sub13011-B2043

main13011-B2043iKF#..S321,331..PS2201307-202108

sub13011-B2170

main13011-B2150iKFV#..S321,331202108

13041BEARING, CONNECTING ROD

main13041-B2010-01iKFDET,KFV#..S321,331201112-201711

MARK1 PURPLE

main13041-B2010-02iKF#..S321,331..PS1201112-201711

MARK2 GREEN

main13041-B2010-03iKFDET,KFV#..S321,331201112-201711

MARK3 BROWN

13101PISTON SUB-ASSY, W/PIN

main13101-B2080iKFDET..S321,331201112-201307

sub13101-B2082

main13101-B2081iKFDET..S321,331..PS2201307-201711

main13101-B2090iKFVE..S321,331201112-201307

sub13101-B2092

main13101-B2091iKFVE..S321,331..PS1201307-201504

main13101-B2180iKFVE..S321,331201504-201509

sub13101-B2181

main13101-B2181iKFVE..S321,331201510-201707

sub13101-B2232

main13101-B2232iKFVE..S321,331201707-201711

main13101-B5010iKFVE..S321,331201711

13201ROD SUB-ASSY, CONNECTING

main13201-B9060iKFDET,KFV#..S321,331201112-201711

13265BOLT, CONNECTING ROD

main13265-B9020iKF#..S321,331..PS2201112-201711

13405FLYWHEEL SUB-ASSY

main13405-B2040iKF#..S321..5F..PS1;KF#..S331..5F..PS1201112-201707

sub13405-B5010

main13405-B5010iKFDET,KFV#..S321,331..5F201707-201711

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90042-50152iKF#..S321..5F..PS1;KF#..S331..5F..PS1201112-201711

13405JBOLT(FOR FLYWHEEL)

main90048-01037iKFDET,KFV#..S321,331..5F201112-201711

13411CRANKSHAFT

main13401-B2010iKF#..S321,331..PS1201112-201902

sub13401-B2050

main13401-B2050iKFDET,KFV#..S321,331201903

13453GEAR, FLYWHEEL RING

main13453-B2050iKF#..S321..5F..PS1;KF#..S331..5F..PS1201112-201707

sub13453-B5010

main13453-B5010iKFDET,KFV#..S321,331..5F201707-201711

13471PULLEY, CRANKSHAFT

main13470-B2020iKFDET,KFV#..S321,331201112-201711

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05369iKF#..S321,331..PS1201112-201901

sub90041-05587

main90041-05587iKFDET,KFV#..S321,331201901

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90042-80034iKFDET,KFV#..S321,331201112-201711

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2010iKFDET,KFVET..S321,331201112-201711

main13521-B2020iKFVE..S321,331201504-201711

3502

17 parts on this diagram · 1 diagram in section
