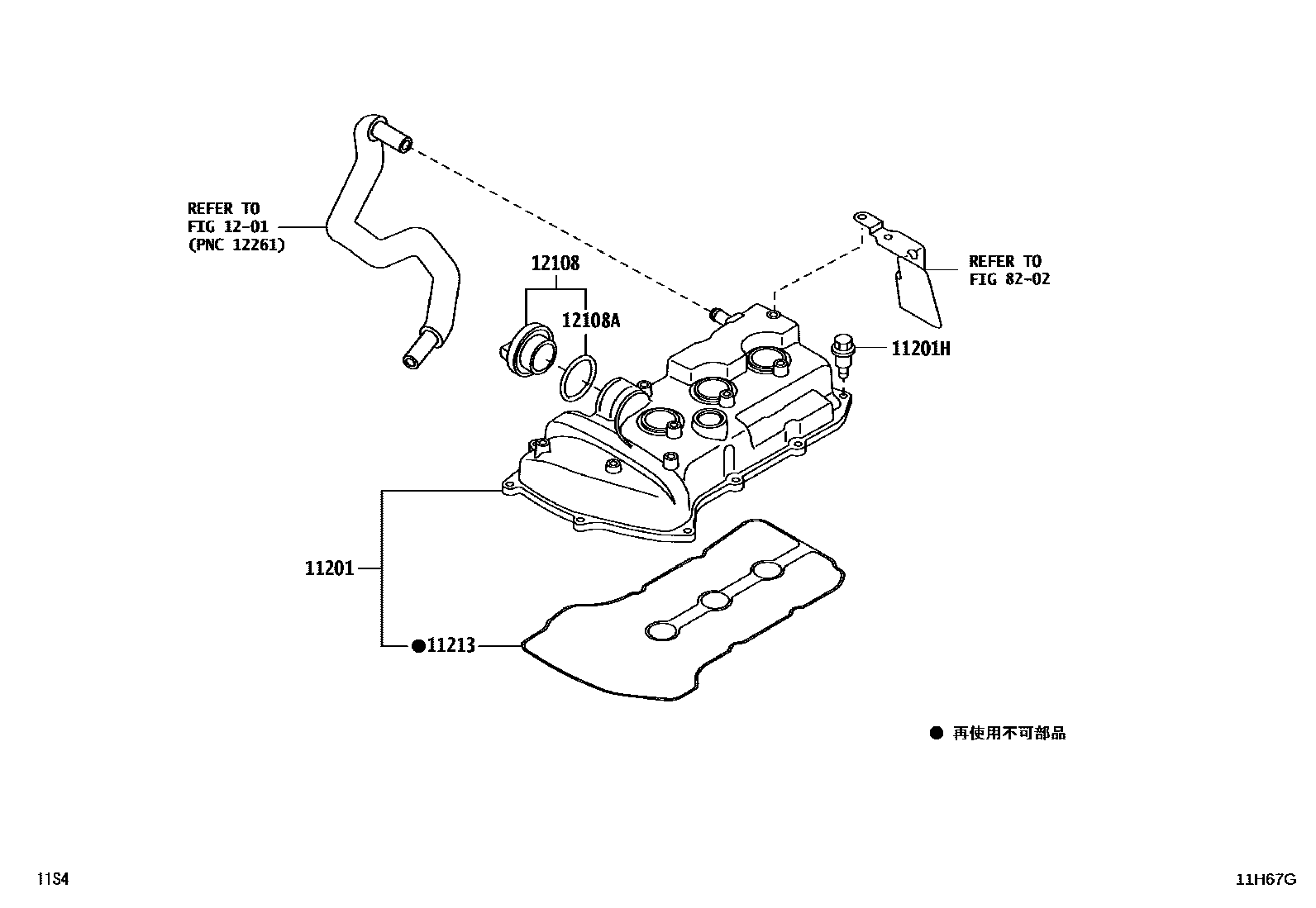

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-B2100iKF#..S321,331201112-201307

sub11201-B2101

main11201-B2101iKF#..S321,331..PS2201307-201706

sub11201-B2102

main11201-B2102iKF#..S321,331201707-201711

11201HBOLT(FOR CYLINDER HEAD COVER)

main91551-80620iKFDET,KFV#..S321,331201112-201711

11213GASKET, CYLINDER HEAD COVER

main11213-B2050iKF#..S321,331..PS1201112-201809

sub11213-B2051

main11213-B2051iKFDET,KFV#..S321,331201810

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-97401iKFDET,KFV#..S321,331201112-202103

main12180-B2020iKFV#..S321,331202104

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001iKFV#..S321,331202104

main90430-37140iKF#..S321,331..PS1201112-202104

8202

7 parts on this diagram · 9 diagrams in section
