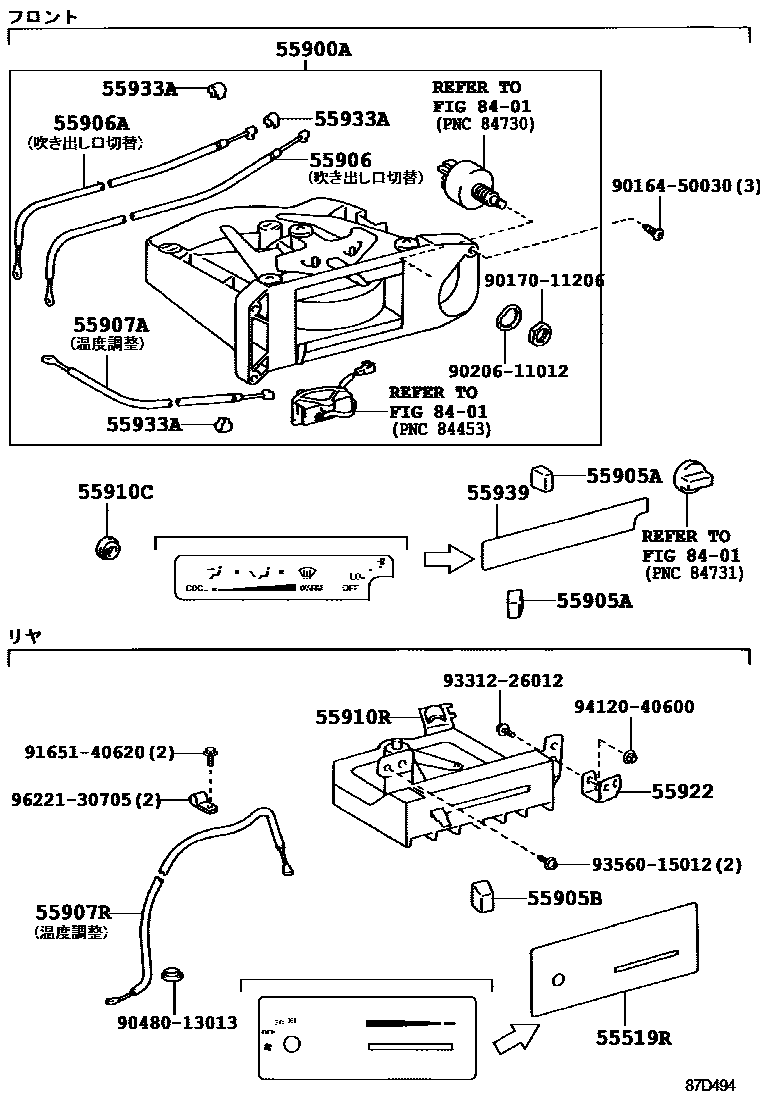

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1�-� ����-� 0002 1�� ���� 0003 1�-����� ����

55519RPLATE, HEATER CONTROL NAME

main55519-65020iBXD20199601

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-65010iBXD20199601-199906

main55900-65020iBXD20199906

55905AKNOB, HEATER CONTROL

main55905-89115iBXD20199601

55905BKNOB, HEATER CONTROL, NO.2

main55905-10110iBXD20199601

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-65010iBXD20199601

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-65010iBXD20199601

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-65010iBXD20199601-199906

main55907-65030iBXD20199906

55907RCABLE SUB-ASSY, TEMPERATURE CONTROL

main55907-65020iBXD20199601-199906

main55907-65040iBXD20199906

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-01560iBXD20199906

main90480-15001iBXD20199601-199906

55910RCONTROL ASSY, HEATER

main55900-28200iBXD20199601

55922BRACKET, HEATER CONTROL BASE

main55922-65010iBXD20199601

55933ACLAMP, HEATER CONTROL CABLE

main55933-24010iBXD20199601

55939ORNAMENT, HEATER CONTROL

main55939-65010iBXD20199601

8401

9016450030

main90164-50030

9017011206

main90170-11206

9020611012

main90206-11012

9048013013

main90480-13013

9165140620

main91651-40620

9331226012

main93312-26012

9356015012

main93560-15012

9412040600

main94120-40600

9622130705

main96221-30705

23 parts on this diagram · 3 diagrams in section
