WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-65020iBXD20199601

85150BLINK ASSY, WIPER

main85150-65040iBXD20199601-199906

main85150-65050iBXD20199906

85154PACKING, FRONT WIPER SHAFT

main85154-65040iBXD20199601

85160LINK ASSY, WINDSHIELD WIPER

main85160-65010iBXD20199601-199906

main85160-65020iBXD20199906

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iBXD20199906

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85152-65040iBXD20199601

85211BARM, FRONT WIPER, RH

main85211-65020iBXD20199601-199906

main85211-65050iBXD20199906

85212ABLADE, FR WIPER, RH

main85212-65020iBXD20199601

85214ARUBBER, WIPER, RH

main85214-65010iBXD20199601

sub85214-20370

85214BRUBBER, WIPER, LH

main85214-65020iBXD20199601

sub85214-35060

85214CRUBBER, WIPER BLADE, CENTER

main85214-65010iBXD20199601

sub85214-20370

85221BARM, FRONT WIPER, LH

main85221-65020iBXD20199601-199906

main85221-65040iBXD20199906

85221CARM, FRONT WIPER, CENTER

main85211-65020iBXD20199601-199906

main85211-65050iBXD20199906

85222ABLADE, FR WIPER, LH

main85222-65040iBXD20199601

85222BBLADE, FR WIPER, CENTER

main85212-65020iBXD20199601

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-65030iBXD20199601

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-65030iBXD20199601

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-65040iBXD20199601

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-65040iBXD20199601-199906

85224GPLATE, WIPER BLADE RUBBER BACKING, NO.5

main85224-65030iBXD20199601

85224HPLATE, WIPER BLADE RUBBER BACKING, NO.6

main85224-65030iBXD20199601

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-60060iBXD20199601

sub85291-44080

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33020iBXD20199601

85291CBLADE, FRONT WIPER, WINTER, CENTER

main85291-60060iBXD20199601

sub85291-44080

9011906166

main90119-06166

9017608029

main90176-08029

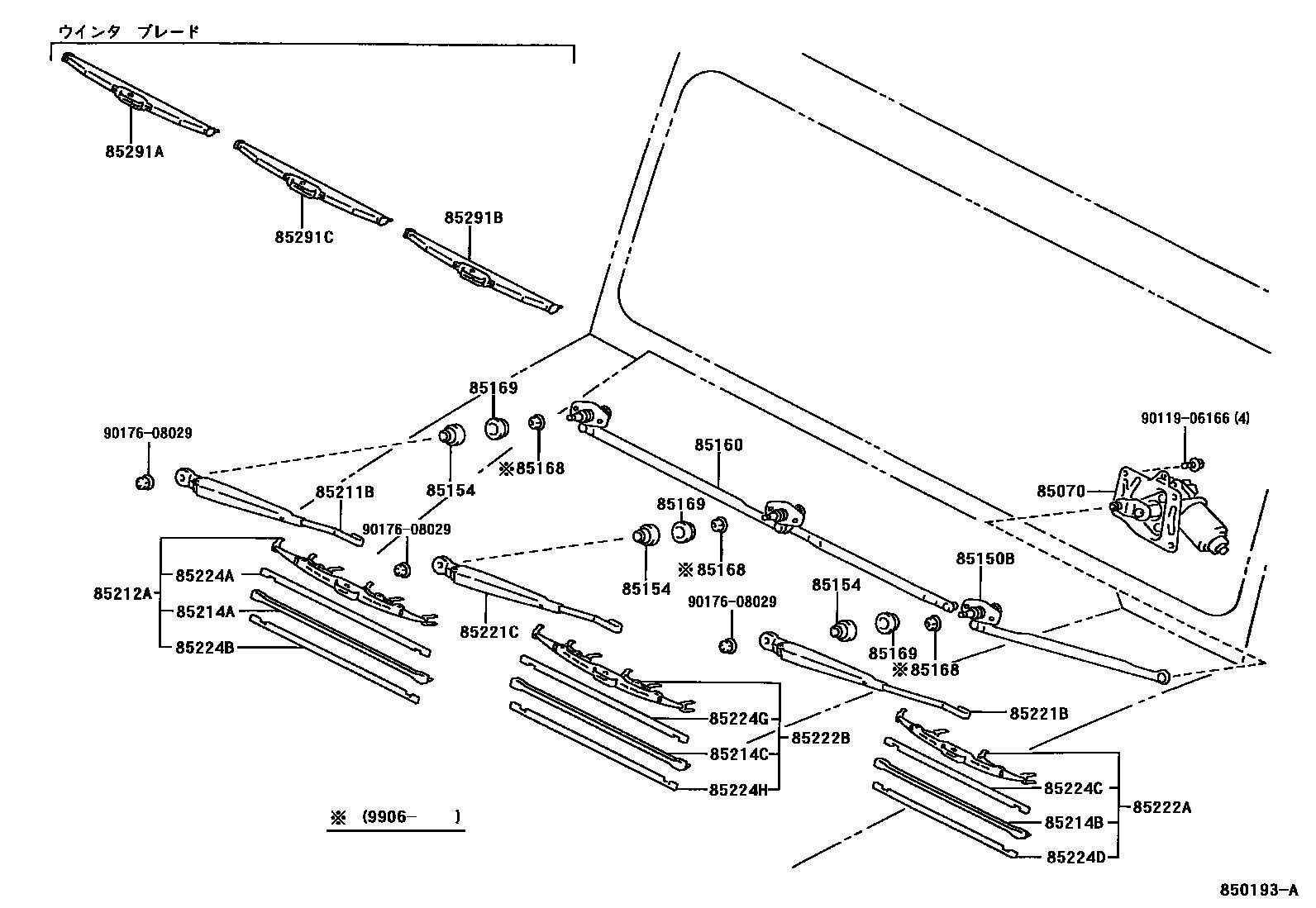

26 parts on this diagram · 1 diagram in section
