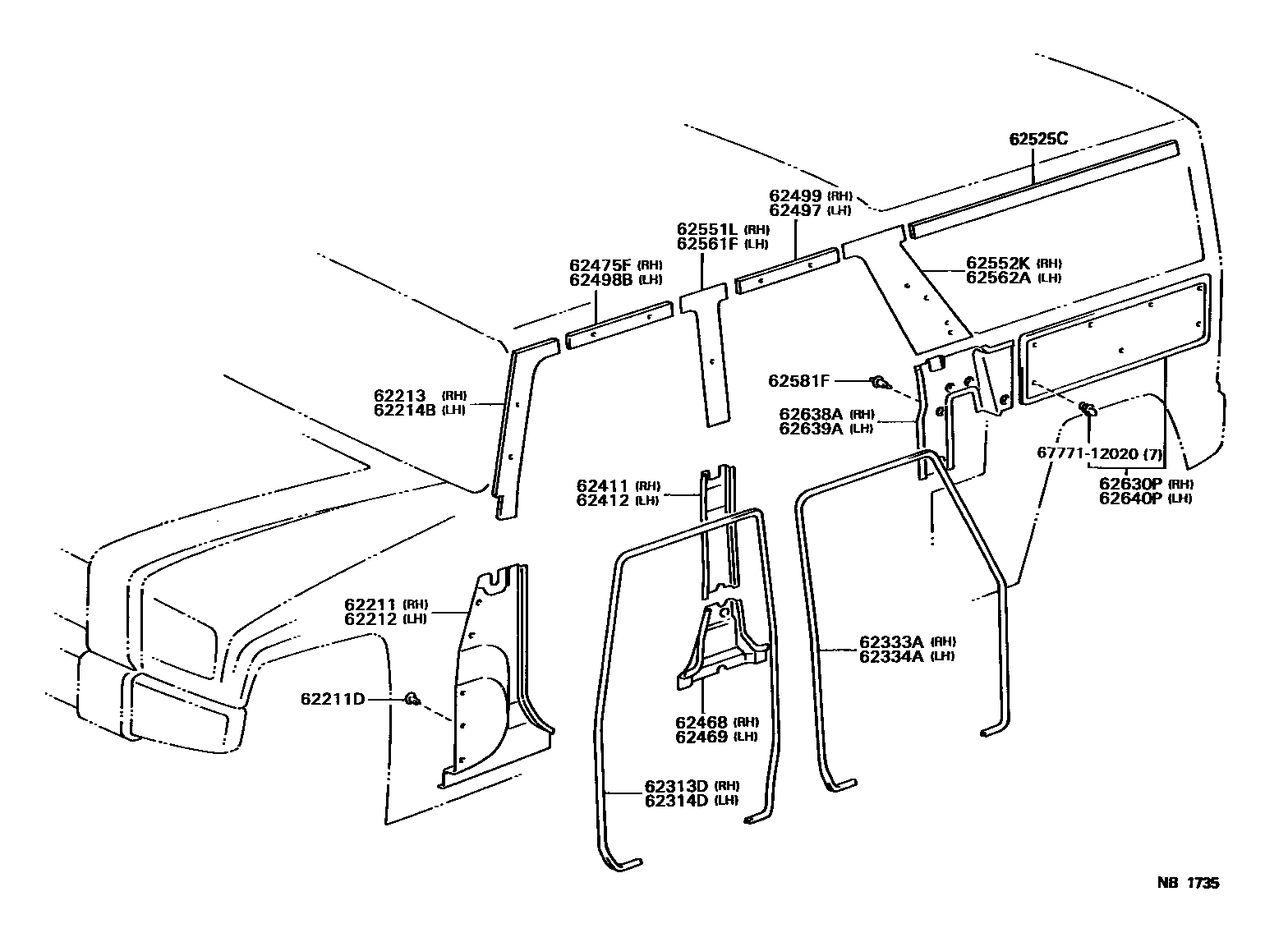

INSIDE TRIM BOARD
62211GARNISH, FRONT PILLAR, RH
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
BLUISH GRAY,TRIM1#
62213PAD, FRONT PILLAR GARNISH
62214BPAD, FRONT PILLAR GARNISH, LH
62313DTRIM, FRONT DOOR OPENING, RH
BLUISH GRAY,TRIM1#
62314DTRIM, FRONT DOOR OPENING, LH
BLUISH GRAY,TRIM1#
62333ATRIM, REAR DOOR OPENING, RH
BLUISH GRAY,TRIM1#
62334ATRIM, REAR DOOR OPENING, LH
BLUISH GRAY,TRIM1#
62411GARNISH, CENTER PILLAR, RH
LI.BLUISH GRAY,TRIM1#
62412GARNISH, CENTER PILLAR, LH
LI.BLUISH GRAY,TRIM1#
62468GARNISH, CENTER PILLAR, REAR RH
BLUISH GRAY,TRIM1#
62469GARNISH, CENTER PILLAR, REAR LH
BLUISH GRAY,TRIM1#
62475FPAD, ROOF SIDE INNER GARNISH, NO.1
62497PAD, ROOF SIDE INNER GARNISH, NO.4
62498BPAD, ROOF SIDE INNER GARNISH, NO.2
62499PAD, ROOF SIDE INNER GARNISH, NO.3
62525CPAD, QUARTER TRIM, UPPER
sub63399-65020
62551LPAD, PILLAR, NO.1 RH
62552KPAD, PILLAR, NO.2 RH
62561FPAD, PILLAR, NO.1 LH
62562APAD, PILLAR, NO.2 LH
62581FCLIP (FOR QUARTER PILLAR GARNISH)
62630PPANEL ASSY, QUARTER TRIM, REAR RH
LT.BLUISH GRAY,TRIM1#
62638AGARNISH, QUARTER PILLAR, RH
LT.BLUISH GRAY,TRIM1#
62639AGARNISH, QUARTER PILLAR, LH
LT.BLUISH GRAY,TRIM1#
62640PPANEL ASSY, QUARTER TRIM, REAR LH
LT.BLUISH GRAY,TRIM1#
6777112020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12020
28 parts on this diagram · 1 diagram in section
