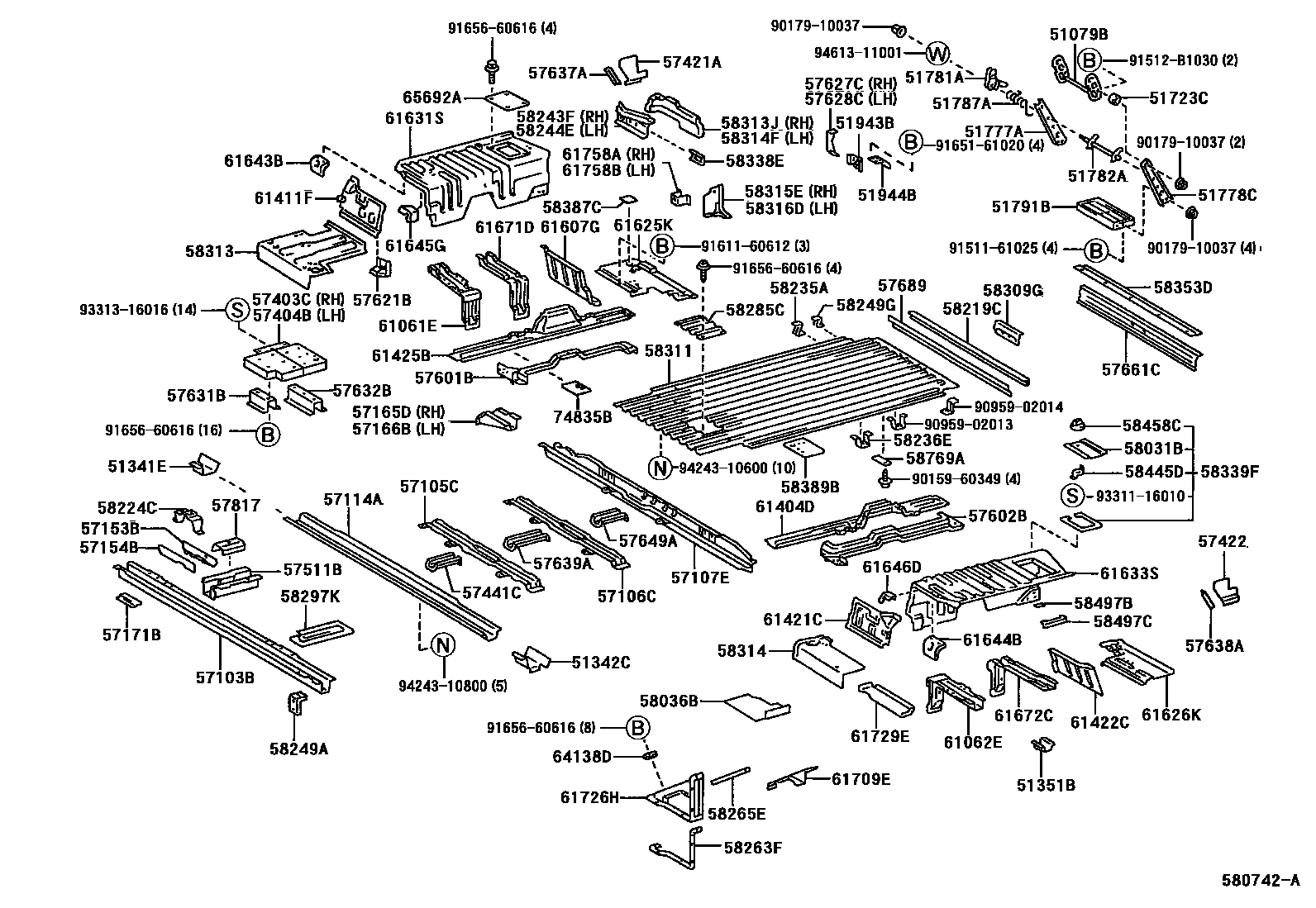

REAR FLOOR PANEL & REAR FLOOR MEMBER

51079BBRACKET SUB-ASSY, SIDE STEP

main51079-65010iBXD20199601

51341EGUSSET, CROSSMEMBER, NO.4 RH

main51341-65010iBXD20199601

51342CGUSSET, CROSSMEMBER, NO.4 LH

main51342-65010iBXD20199601

51351BGUSSET, CROSSMEMBER, NO.5

main51351-65010×2iBXD20199601

51723CSPACER, STEP ARM, RH

main51723-65020×2iBXD20199601

51777AARM, FRONT STEP, RH

main51777-65030iBXD20199601

51778CARM, FRONT STEP, LH

main51778-65020iBXD20199601

51781ABRACKET, TORSION BAR, RH

main51781-65040iBXD20199601

51782ABRACKET, TORSION BAR, LH

main51782-65020iBXD20199601

51787ARETAINER, FRONT STEP BRACKET, RH

main51787-65010iBXD20199601

51791BPANEL, REAR STEP

main51791-65010iBXD20199601-199906

main51791-65020iBXD20199906

51943BBRACKET, SPARE WHEEL CARRIER, NO.1

main51943-65010iBXD20199601

51944BBRACKET, SPARE WHEEL CARRIER, NO.2

main51944-65020iBXD20199601

57103BCROSSMEMBER SUB-ASSY, FLOOR, NO.3

main57103-65080iBXD20199601

57105CCROSSMEMBER SUB-ASSY, FLOOR, NO.5

main57105-65010iBXD20199601

57106CCROSSMEMBER SUB-ASSY, FLOOR, NO.6

main57106-65010iBXD20199601

57107ECROSSMEMBER SUB-ASSY, FLOOR, NO.7

main57107-65060iBXD20199601

57114ACROSSMEMBER, FLOOR, NO.4

main57114-65070iBXD20199601

57153BREINFORCEMENT, CROSSMEMBER FLOOR, NO.3

main57153-65020iBXD20199601

57154BREINFORCEMENT, CROSSMEMBER FLOOR, NO.4

main57154-65020iBXD20199601

57165DGUSSET, FLOOR MEMBER, RH

main57165-65010iBXD20199601

57166BGUSSET, FLOOR MEMBER, LH

main57166-65020iBXD20199601

57171BBRACKET, CROSSMEMBER FLOOR, NO.1

main57171-65020iBXD20199601

57403CREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-65050iBXD20199601

57404BREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-65050iBXD20199601

57421APLATE, FLOOR SIDE RAIL, RH

main57421-65020iBXD20199601

57422PLATE, FLOOR SIDE RAIL, LH

main57422-65030iBXD20199601

57441CMEMBER, REAR FLOOR CENTER, NO.1

main57441-65010iBXD20199601

57511BREINFORCEMENT, FRONT FLOOR, CENTER

main57511-65060iBXD20199601

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-65060iBXD20199601

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-65050iBXD20199601

57621BPLATE, REAR FLOOR SIDE MEMBER, FRONT RH

main57621-65010iBXD20199601-199906

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-65010iBXD20199601

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-65020iBXD20199601

57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-65020×2iBXD20199601

57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-65020×2iBXD20199601

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-65010×2iBXD20199601-199603

main58351-65020iBXD20199603

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57637-65010×2iBXD20199601

57639AREINFORCEMENT, REAR FLOOR SIDE MEMBER, NO.5

main57639-65010iBXD20199601

57649AMEMBER, REAR FLOOR, CENTER NO.3

main57649-65010iBXD20199601

57661CMEMBER, REAR FLOOR REAR CROSS, OUTER

main57661-65010iBXD20199601

57689REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57689-65030iBXD20199601-199906

57817REINFORCEMENT, BELT ANCHOR, NO.2

main57817-65010×3iBXD20199601

58031BCOVER SUB-ASSY, REAR FLOOR SERVICE HOLE

main58031-65020iBXD20199601

58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH

main58036-65010iBXD20199601

58219CPLATE, CENTER FLOOR REAR END

main58219-65020iBXD20199601-199906

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-65010×2iBXD20199601

58235ABRACKET, DIFFERENTIAL LOCK TUBE

main58235-65011iBXD20199601-199906

58236EBRACKET, CLUTCH TUBE

main58236-65010iBXD20199601-199906

58243FPANEL, FLOOR SIDE, REAR RH

main58243-65030iBXD20199601

58244EPANEL, FRONT FLOOR SIDE, REAR LH

main58244-65040iBXD20199601

58249AREINFORCEMENT, REAR SEAT MOUNTING

main58249-65050×2iBXD20199601

58249GBRACKET, CABLE CLAMP, NO.2

main58249-65030×2iBXD20199601-199906

58263FPACKING, TRANSMISSION COVER, A

main58263-65010iBXD20199601

58265EPACKING, TRANSMISSION COVER, C

main58265-65020×2iBXD20199601-200105

main67482-65020×2iBXD20200105

58285CCOVER, REAR FLOOR HOLE

main58285-65010iBXD20199601

58297KREINFORCEMENT, SEAT BELT ANCHOR, NO.2

main58297-65010iBXD20199601

58309GRETAINER SUB-ASSY, BACK DOOR LOCK STRIKER

main58309-65010iBXD20199601

58311PAN, REAR FLOOR

main58301-65080iBXD20199906

main58311-65070iBXD20199601-199906

58313PANEL, REAR FLOOR SIDE, RH

main58313-65060iBXD20199601-200110

58313JEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-65050iBXD20199601

58314PANEL, REAR FLOOR SIDE, LH

main58314-65060iBXD20199601-200110

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-65050iBXD20199601

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-65020iBXD20199601

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-65020iBXD20199601

58338EREINFORCEMENT, SPARE WHEEL CARRIER

main58338-65010iBXD20199601

58339FPACKING, REAR FLOOR SERVICE HOLE

main58339-65010iBXD20199601

58353DREINFORCEMENT, EXTENSION REAR FLOOR PAN TO OUTER PANEL

main58353-65010iBXD20199601

58387CPLATE, REAR FLOOR FINISH

main58387-65010iBXD20199601

58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH

main58389-65010iBXD20199601-199906

58445DLOCK, BATTERY SERVICE HOLE COVER

main58445-95J01iBXD20199601

58458CKNOB, BATTERY SERVICE HOLE COVER

main58458-95J01iBXD20199601

58497BPLATE, BATTERY SERVICE HOLE COVER LOCK

main58497-65010iBXD20199601

58497CPLATE, BATTERY SERVICE HOLE COVER LOCK

main58497-65020iBXD20199601

58769ASHIM, CROSSMEMBER

main58769-65010×4iBXD20199601

61061EREINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-65020iBXD20199601-199906

61062EREINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-65020iBXD20199601-199906

61404DPANEL SUB-ASSY, FENDER, INNER LH

main61404-65010iBXD20199601-199906

61411FPANEL, FENDER, NO.1 RH

main61411-65030iBXD20199601-200110

61421CPANEL, FENDER, NO.1 LH

main61421-65020iBXD20199601-200110

61422CPANEL, FENDER, NO.2 LH

main61422-65020iBXD20199601-200110

61425BPANEL, FENDER, INNER REAR RH

main61425-65010iBXD20199601-199906

61607GPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

main61607-65030iBXD20199601-200110

61625KPANEL, REAR BODY REAR SIDE CORNER, RH

main61625-65040iBXD20199601

61626KPANEL, REAR BODY REAR SIDE CORNER, LH

main61626-65050iBXD20199601-200110

61631SPANEL, REAR WHEEL HOUSE, OUTER RH

main61631-65020iBXD20199601-200110

61633SPANEL, REAR WHEEL HOUSE, LH

main61633-65030iBXD20199601-200110

61643BPATCH, QUARTER WHEEL HOUSE, NO.1

main61643-65010iBXD20199601-199906

61644BPATCH, QUARTER WHEEL HOUSE, NO.1

main61643-65010iBXD20199601-199906

61645GGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-65010iBXD20199601-199906

61646DGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-65010iBXD20199601-199906

61671DREINFORCEMENT, QUARTER WHEEL HOUSE, RH

main61671-65010iBXD20199601-199906

61672CREINFORCEMENT, QUARTER WHEEL HOUSE, LH

main61672-65010iBXD20199601-199906

61709EBOX SUB-ASSY, FUEL INLET

main61709-65050iBXD20199601

61726HPLATE, FUEL INLET BOX COVER

main61726-65020iBXD20199601

61729EPLATE, FUEL INLET BOX

main61729-65010iBXD20199601-199906

61758ABRACKET, QUARTER INNER PANEL

main61758-65010iBXD20199601

61758BBRACKET, QUARTER INNER PANEL

main61758-65020iBXD20199601

64138DSEAL, HEADER PANEL COVER

main64138-95400×2iBXD20199601

65692ALID, INSPECTION OPENING

main65692-65010iBXD20199601

74835BBRACKET, SEPARATOR, LOWER

main74835-65010×2iBXD20199612-199707

9015960349

main90159-60349

9017910037

main90179-10037

9095902013

main90959-02013

9095902014

main90959-02014

9151161025

main91511-61025

91512B1030

main91512-B1030

9161160612

main91611-60612

9165161020

main91651-61020

9165660616

main91656-60616

9331116010

main93311-16010

9331316016

main93313-16016

9424310600

main94243-10600

9424310800

main94243-10800

9461311001

main94613-11001

115 parts on this diagram · 1 diagram in section
