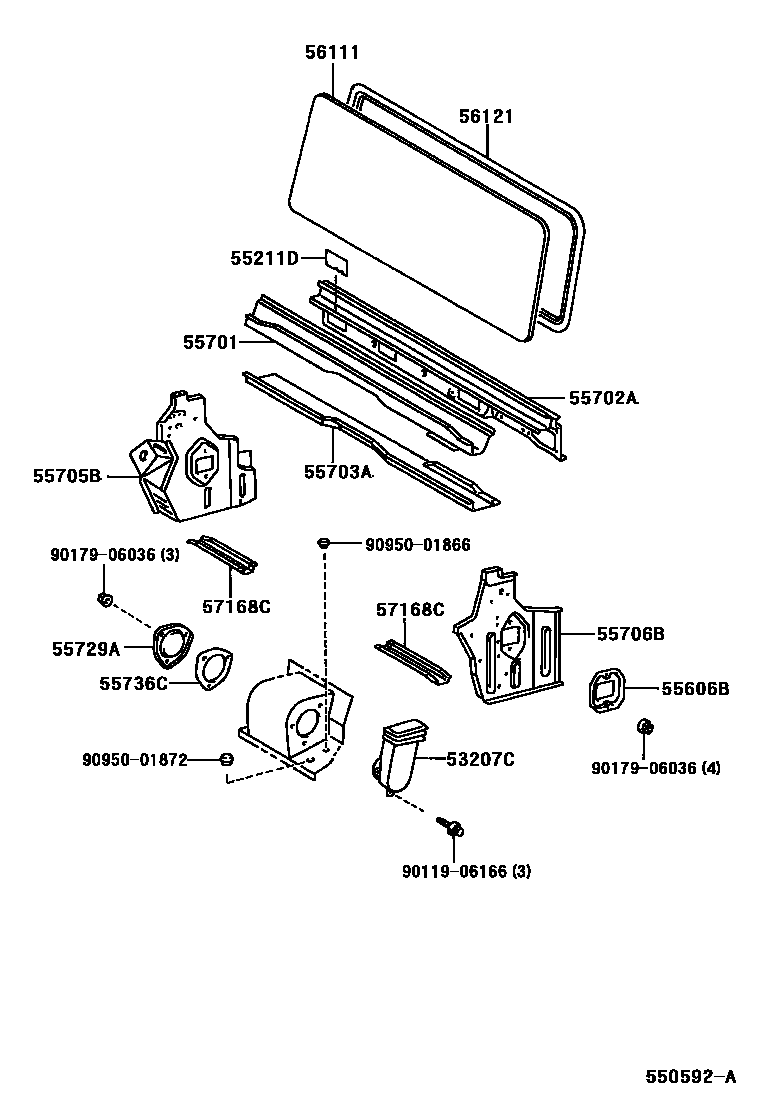

COWL PANEL & WINDSHIELD GLASS

53207CDUCT SUB-ASSY, COOL AIR INTAKE

main53207-65020iBXD20199601

55211DSILENCER, FRONT PANEL, UPPER

main55211-65010×3iBXD20199601

55606BCOVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-65010×2iBXD20199601

55701PANEL SUB-ASSY, COWL

main55701-65050iBXD20199601-199906

main55701-65070iBXD20199906

55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT

main55702-65030iBXD20199601-199906

main55702-65040iBXD20199906

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-65030iBXD20199601

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55706-65040iBXD20199601-200110

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55707-65160iBXD20199601-200110

55729ACOVER, COWL PANEL HOLE

main55729-65010iBXD20199601

55736CSEAL, WATER GUARD PLATE

main55736-65010iBXD20199601

56111GLASS, WINDSHIELD

main56111-65030iBXD20199601

56121WEATHERSTRIP, WINDSHIELD

main56121-65030iBXD20199601

57168CMEMBER, FRONT FLOOR, LH

main57168-65010×2iBXD20199601

9011906166

main90119-06166

9017906036

main90179-06036

9095001866

main90950-01866

9095001872

main90950-01872

17 parts on this diagram · 1 diagram in section
