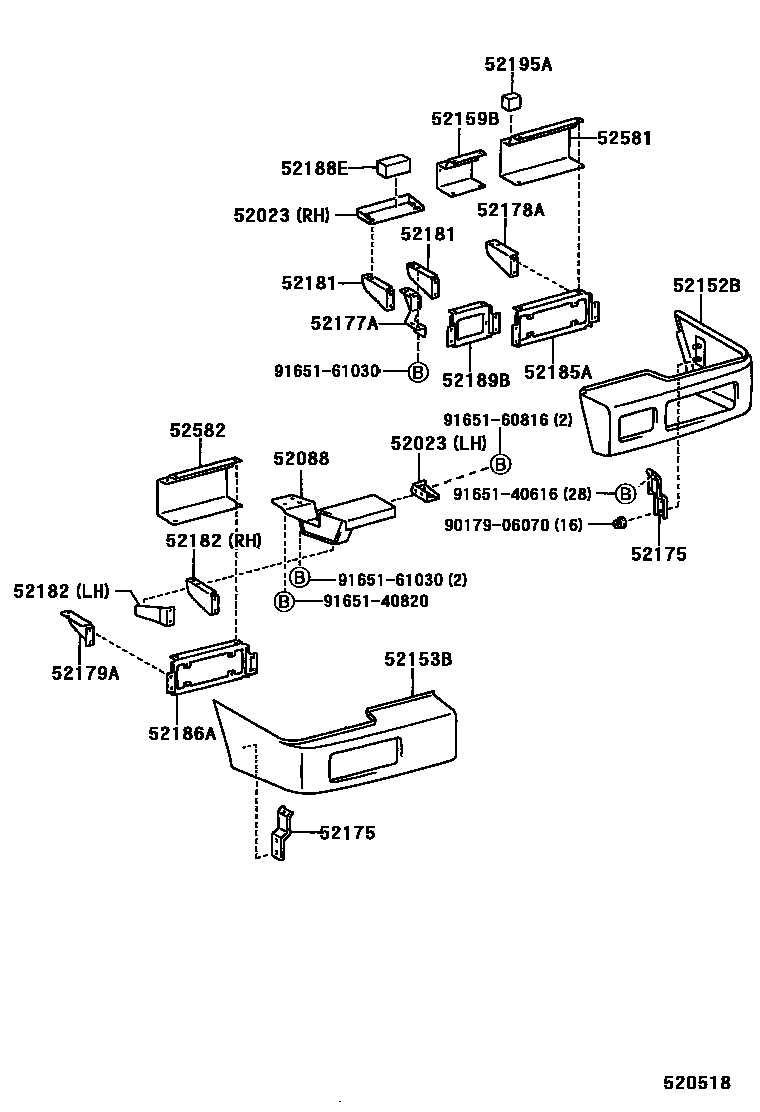

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-65020iBXD20199601

main52172-65020iBXD20199601

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52088-65010iBXD20199601

52152BEXTENSION, REAR BUMPER, RH

main52165-65020-C0iBXD20199601-199906

BLACK,048 ,8E2

52153BEXTENSION, REAR BUMPER, LH

main52166-65020-C0iBXD20199601-199906

BLACK,048 ,8E2

main52166-65030-C0iBXD20199612-199906

52159BPLATE, REAR BUMPER

main52159-65010iBXD20199601

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-65020×2iBXD20199601

52177ARETAINER, REAR BUMPER EXTENSION, RH

main52177-65010iBXD20199601

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-65010iBXD20199601

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52179-65010iBXD20199601

52181ARM, REAR BUMPER, RH

main52181-65030×2iBXD20199601

52182ARM, REAR BUMPER, LH

main52181-65030iBXD20199601

main52182-65030iBXD20199601

52185ABRACKET, REAR BUMPER SIDE, RH

main52185-65010iBXD20199601

52186ABRACKET, REAR BUMPER SIDE, LH

main52186-65010iBXD20199601

52188ESPACER, REAR BUMPER MOUNTING

main52188-65030iBXD20199601

52189BBRACKET, REAR BUMPER SIDE, NO.3

main52189-65020iBXD20199601

52195ASPACER, REAR BUMPER EXTENSION

main52195-65010iBXD20199601

52581PROTECTOR, REAR BUMPER, RH

main52581-65010iBXD20199601

52582PROTECTOR, REAR BUMPER, LH

main52582-65010iBXD20199601

9017906070

main90179-06070

9165140616

main91651-40616

9165140820

main91651-40820

9165160816

main91651-60816

9165161030

main91651-61030

23 parts on this diagram · 1 diagram in section
