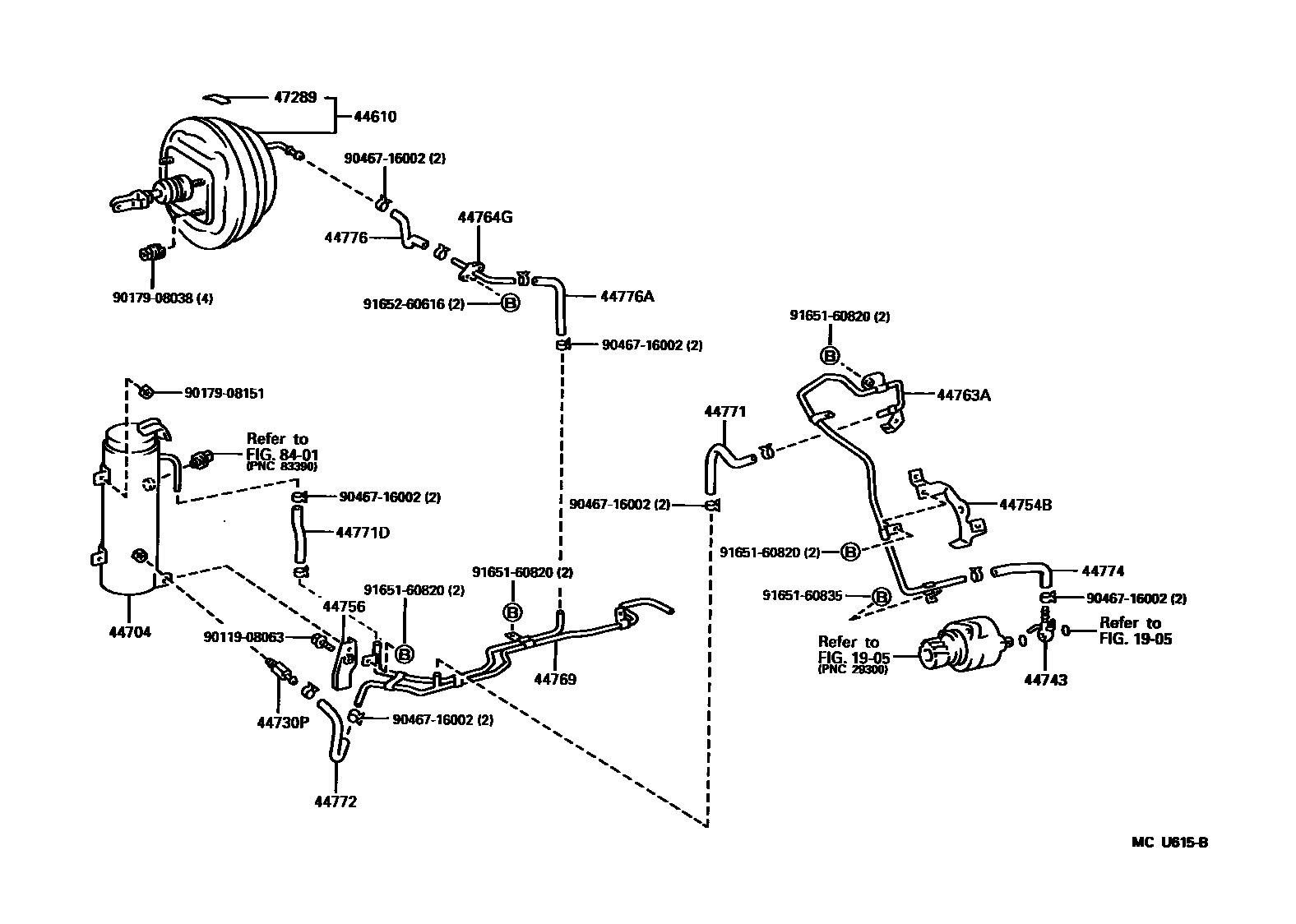

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-65020iBXD20199601

44704RESERVOIR SUB-ASSY, VACUUM

main44704-65010iBXD20199601

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iBXD20199601

44743UNION(FOR VACUUM PUMP)

main90405-09129iBXD20199601-199906

44754BBRACKET, VACUUM TUBE

main44754-36050iBXD20199601-199906

44756BRACKET, VACUUM RESERVOIR

main44756-65020iBXD20199601

44763ATUBE, HOSE TO HOSE, NO.1

main44761-65040iBXD20199601-199906

main44761-65050iBXD20199601-199906

44764GTUBE, CONNECTOR TO BRAKE BOOSTER

main44764-65020iBXD20199601

44769TUBE, VACUUM RESERVOIR CONNECT

main44769-65020iBXD20199601

44771HOSE, VACUUM TUBE CONNECTOR

main44771-65010iBXD20199601

44771DHOSE, VACUUM TUBE CONNECTOR

main44777-65010iBXD20199601

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-65010iBXD20199601

44774HOSE, UNION TO CONNECTOR TUBE

main44774-36190iBXD20199601-199706

main44774-37100iBXD20199706-199906

44776HOSE, BRAKE BOOSTER

main44776-65010iBXD20199601

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44778-65010iBXD20199601

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60020iBXD20199601

8401

9011908063

main90119-08063

9017908038

main90179-08038

9017908151

main90179-08151

9046716002

main90467-16002

9165160820

main91651-60820

9165160835

main91651-60835

9165260616

main91652-60616

25 parts on this diagram · 2 diagrams in section
