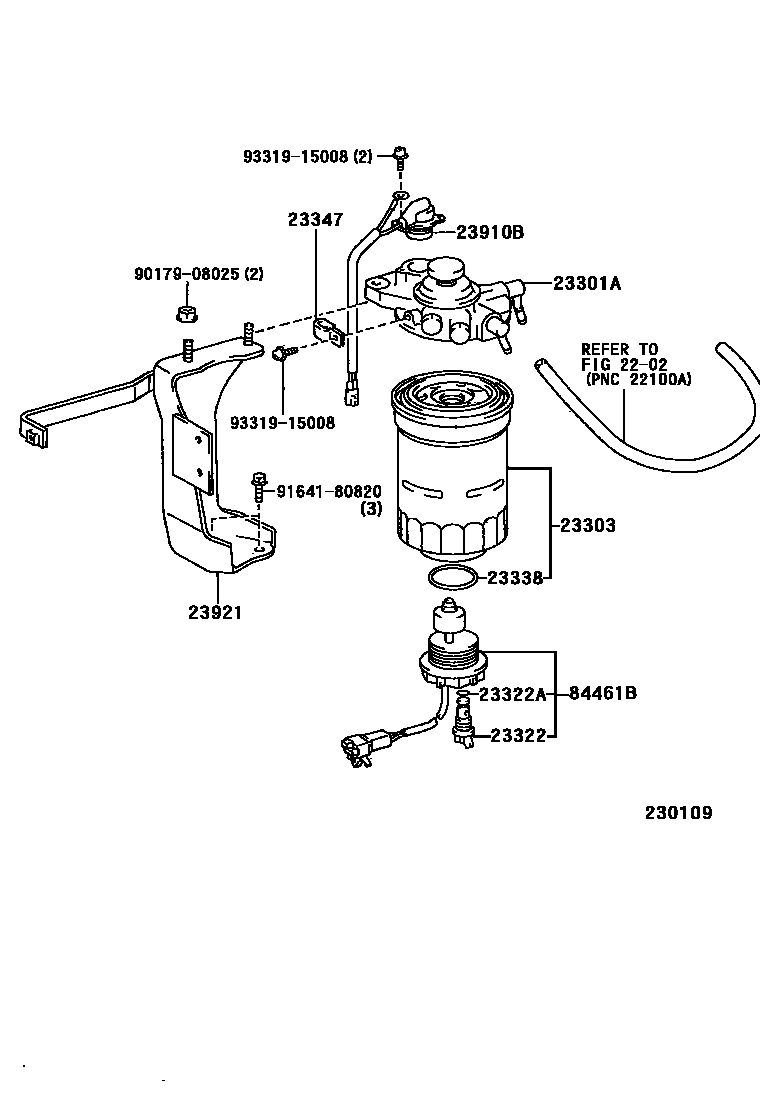

FUEL FILTER

0001 1 0002 1

2202

23301ACAP ASSY, FUEL FILTER

main23301-58180i15BFT..BXD20199601-199906

main23380-58340i15BFTE..BXD20199906

sub23380-58341

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i15BFT..BXD20199601-199906

main23390-64480i15BFTE..BXD20199906

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i15BFT..BXD20199601-199906

main23388-64470i15BFTE..BXD20199906

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i15B#..BXD20199601

23338GASKET(FOR WARNING SWITCH)

main23344-64010i15B#..BXD20199601

23347CLIP, CORD

main23347-54010i15BFT..BXD20199601-199906

23910BHEATER ASSY, FUEL

main23910-17030i15B#..BXD20199601

23921SUPPORT, FUEL FILTER

main23904-58030i15B#..BXD20199601

84461BSWITCH, LEVEL WARNING

main84461-28040iBXD20199906

sub84461-28041

main84461-60040iBXD20199601-199906

9017908025

main90179-08025

9164180820

main91641-80820

9331915008

main93319-15008

13 parts on this diagram · 2 diagrams in section
