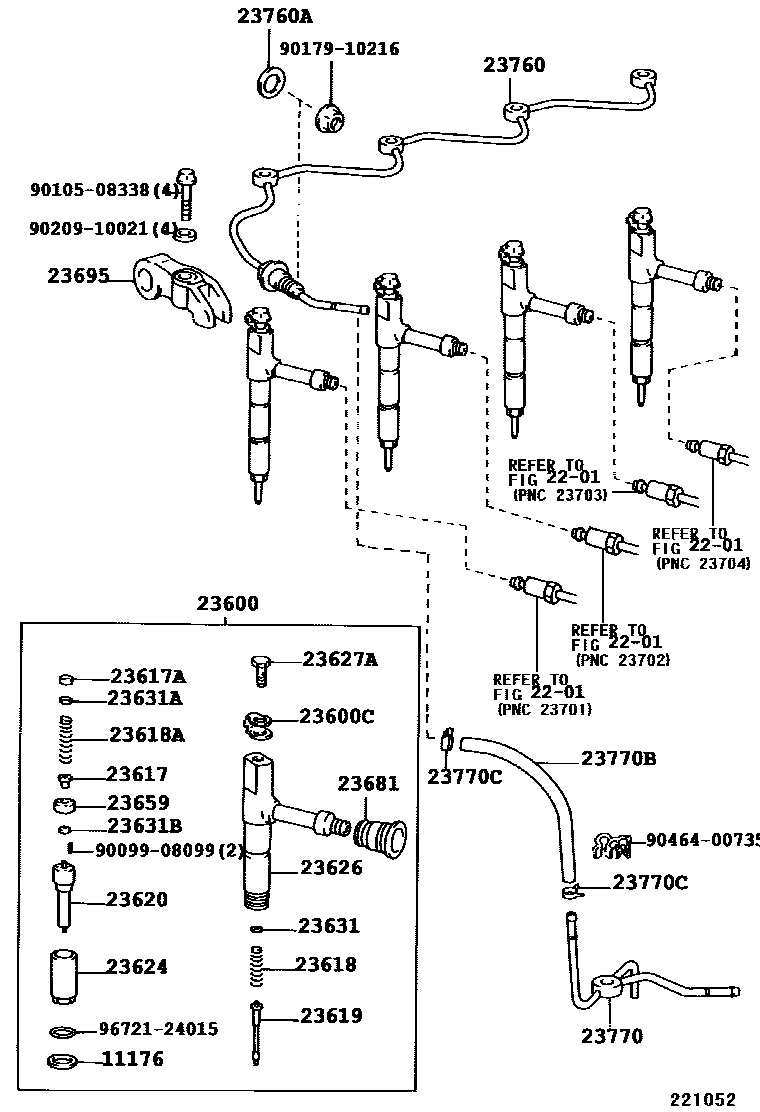

INJECTION NOZZLE
2201
23600CGASKET(FOR HOLDER & NOZZLE SET)
23617SEAT, PRESSURE SPRING
23617ASEAT, PRESSURE SPRING, NO.1
23618SPRING, NOZZLE HOLDER PRESSURE
23618ASPRING, NOZZLE HOLDER PRESSURE, NO.1
23619PIN, NOZZLE HOLDER PRESSURE
23624NUT, NOZZLE RETAINING
23626BODY SUB-ASSY, NOZZLE
23627ASCREW, FOLLOW(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23631AWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.1)
23631BWASHER(FOR NOZZLE HOLDER PRESSURE SPRING NO.2)
23659PACKING, TIP(FOR NOZZLE)
23681SEAL, NOZZLE HOLDER
23695CLAMP, NOZZLE HOLDER, NO.1
23760AGASKET
23770PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770BHOSE, FUEL
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
9009908099
main90099-08099
9010508338
main90105-08338
9017910216
main90179-10216
9020910021
main90209-10021
9046400735
main90464-00735
9672124015
main96721-24015
30 parts on this diagram · 2 diagrams in section
