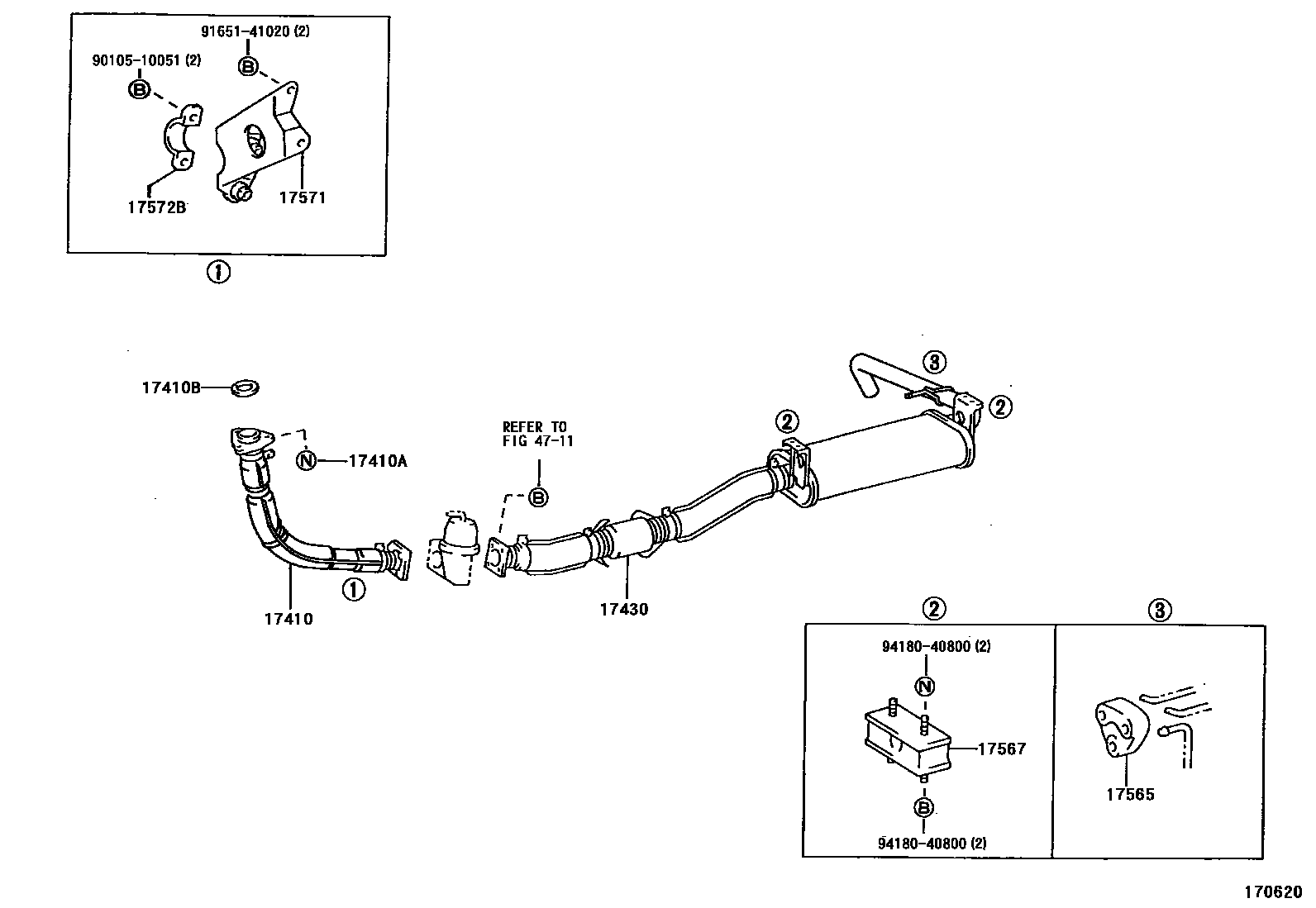

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-58230i15BFT..BXD20199601-199906

main17410-58280i15BFTE..BXD20199906

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i15B#..BXD20199601

17410BGASKET, EXHAUST PIPE

main90917-06059i15B#..BXD20199601

17430PIPE ASSY, EXHAUST, TAIL

main17430-58580i15BFT..BXD20199601-199906

main17430-58750i15BFTE..BXD20199906

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-64010i15B#..BXD20199601

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-35010i15B#..BXD20199601

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-58310i15BFT..BXD20199601-199906

main17571-58410i15BFTE..BXD20199906

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-58120i15B#..BXD20199601

4711

9010510051

main90105-10051

9165141020

main91651-41020

9418040800

main94180-40800

12 parts on this diagram · 1 diagram in section
