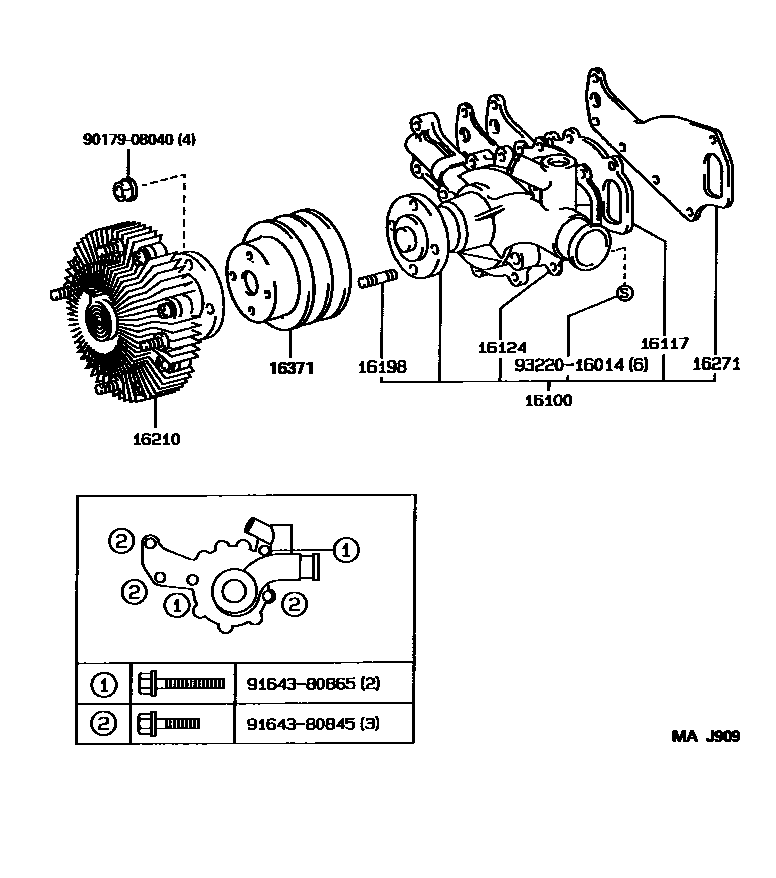

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59186i15BFT..BXD20¥14,900199601-199906

sub16100-59187¥11,600

main16100-59295i15BFTE..BXD20¥14,800199906

16117PLATE, WATER PUMP

main16117-58010i15BFT..BXD20¥1,010199601-199906

main16117-58090i15BFTE..BXD20¥1,470199906

16124GASKET, WATER PUMP COVER

main16124-58010i15BFT..BXD20¥650199601-199906

main16124-58090i15BFTE..BXD20¥1,010199906

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170i15B#..BXD20¥230199601

16210COUPLING ASSY, FLUID

main16210-58050i15B#..BXD20¥37,500199601

16271GASKET, WATER PUMP

main16271-56031i15BFT..BXD20¥930199601-199905

sub16271-58010¥990

main16271-58010i15B#..BXD20¥990199905

16371PULLEY, FAN

main16371-58080i15BFT..BXD20¥5,700199601-199905

sub16371-58090¥4,000

main16371-58090i15B#..BXD20¥4,000199905

9017908040

main90179-08040¥100

9164380845

main91643-80845¥110

9164380865

main91643-80865¥110

9322016014

main93220-16014¥80

11 parts on this diagram · 2 diagrams in section
