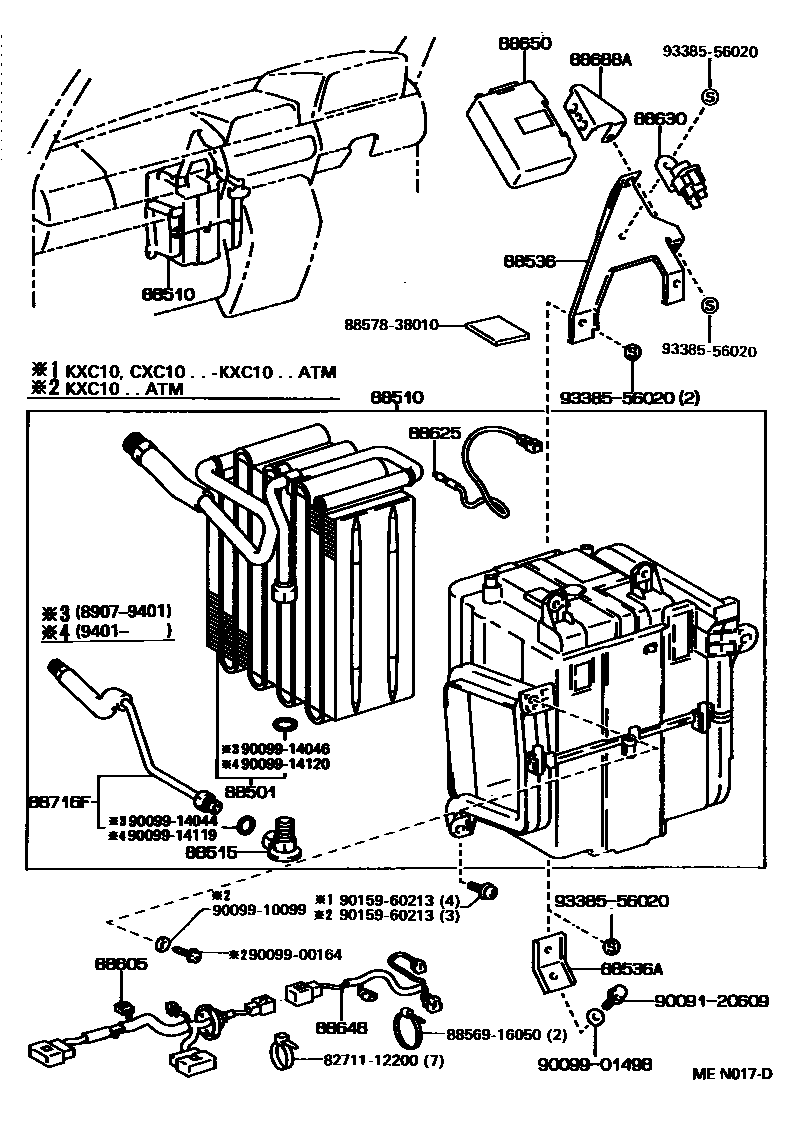

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-38020iCXC10,KXC10199401-199511

main88501-90P80iCXC10,KXC10198907-199401

88510UNIT ASSY, COOLER

main88510-38050iCXC10,KXC10199401-199511

main88510-90P80iCXC10,KXC10198907-199401

88515VALVE, COOLER EXPANSION

main88515-16040iCXC10,KXC10198907-199401

main88515-34010iCXC10,KXC10199401-199511

88536BRACKET, COOLING UNIT, NO.1

main88688-38010iKXC10..3HC199105-199511

main88688-90P80iCXC10,KXC10..4HC,5H198907-199511

88536ABRACKET, COOLING UNIT, NO.2

main88688-90P82iCXC10,KXC10198907-199511

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-38010iKXC10..3HC199105-199511

main88605-38020iCXC10199105-199409

main88605-90P80iKXC10..5H198907-199511

88625THERMISTOR, COOLER, NO.1

main88625-32040iCXC10,KXC10198907-199511

88630RELAY ASSY, COOLER

main88630-60020iKXC10..3HC199105-199511

88648WIRING, COOLER, NO.1

main88648-38020iKXC10..3HC199105-199511

main88648-38030iCXC10199105-199409

main88648-90P80iKXC10..5H198907-199511

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-38010iKXC10199105-199511

main88650-60140iCXC10199105-199409

sub88650-60141

main88650-90P80iKXC10198907-199105

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-90P81iCXC10,KXC10198907-199511

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-38150iCXC10,KXC10199401-199511

main88716-90P80iCXC10,KXC10198907-199401

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8856916050CLAMP (FOR COOLER RELAY)

main88569-16050

8857838010PAKING, COOLER AIR DUCT

main88578-38010

9009120609

main90091-20609

9009900164

main90099-00164

9009901498

main90099-01498

9009910099

main90099-10099

9009914044

main90099-14044

9009914046

main90099-14046

9009914119

main90099-14119

9009914120

main90099-14120

9015960213

main90159-60213

9338556020

main93385-56020

25 parts on this diagram · 1 diagram in section
