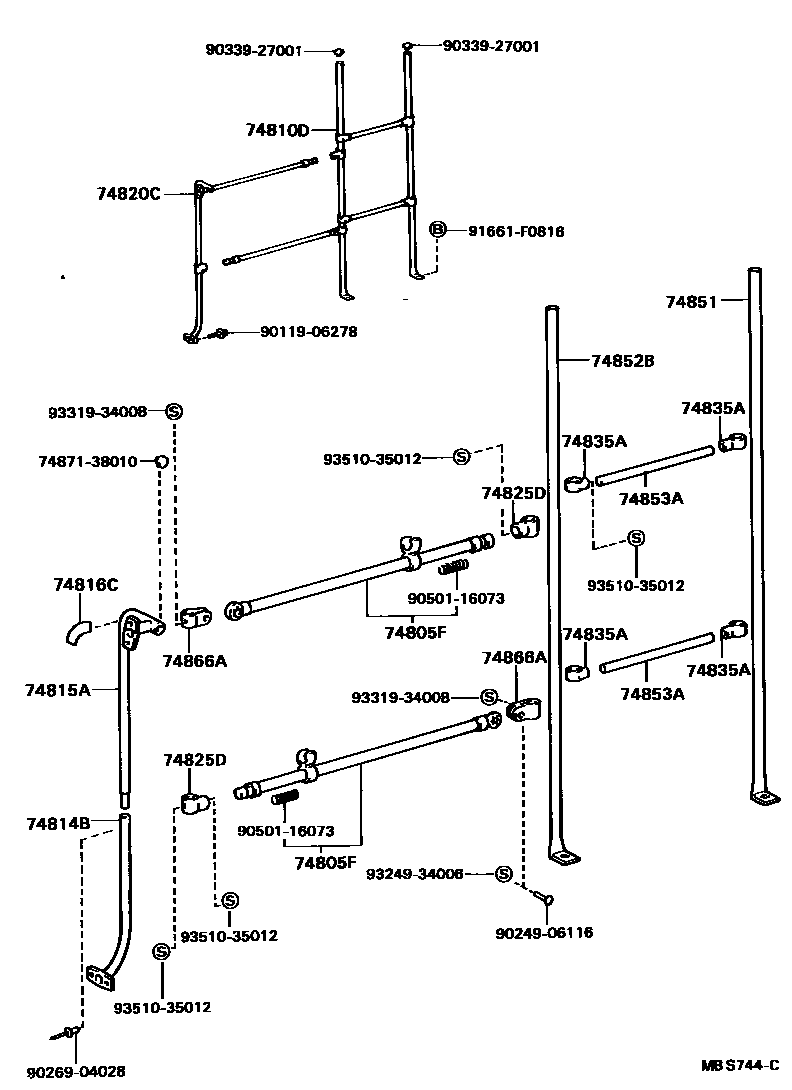

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1 0003 1 0004 1

74805FBAR SUB-ASSY, SEPARATOR, A

main74805-90P80-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

74810DSEPARATER ASSY, FRONT RH

main74810-90P80-03iCXC10,KXC10..02S198907-199511

LIGHT GRAY,TRIM1#

main74810-90P81-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

74814BBAR, SEPARATOR VERTICAL, LH

main74814-90P80-03iKXC10..02S198907-199105

LIGHT GRAY,TRIM1#

74815ABAR, SEPARATOR

main74815-38010-03iCXC10,KXC10..02S199105-199511

LIGHT GRAY,TRIM1#

main74815-90P80-03iKXC10..02S198907-199105

LIGHT GRAY,TRIM1#

main74815-90P81-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

74816CPLATE, SEPARATOR, LH

main74816-90P80iCXC10,KXC10198907-199511

74820CSEPARATOR ASSY, FRONT LH

main74820-38010-03iCXC10,KXC10..02S199105-199511

LIGHT GRAY,TRIM1#

main74820-90P80-03iKXC10..02S198907-199105

LIGHT GRAY,TRIM1#

main74820-90P81iKXC10..STD..05S198907-199105

main74820-90P81-03iCXC10,KXC10..DX..05S198907-199511

LIGHT GRAY,TRIM1#

74825DBRACKET, SEPARATOR BAR, NO.5

main74825-38010-03iCXC10,KXC10..02S198907-199511

main74825-90P80-03iCXC10,KXC10..02S198907-199511

74835ABRACKET, SEPARATOR

main74835-90P80-03×4iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

74851BAR, SEPARATOR

main74851-90P80-03iCXC10,KXC10..02S198907-199511

LIGHT GRAY,TRIM1#

main74851-90P81-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

74852BBAR, SEPARATOR, NO.2

main74852-90P80-03iCXC10,KXC10..02S198907-199511

LIGHT GRAY,TRIM1#

main74852-90P81-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

74853ABAR, SEPARATOR, NO.3

main74853-90P80-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

74866ABRACKET, SEPARATOR BAR, NO.3

main74866-90P80-03iCXC10,KXC10..05S198907-199511

LIGHT GRAY,TRIM1#

7487138010BRACKET, SEPARATOR CURTAIN, UPPER

main74871-38010

9011906278

main90119-06278

9024906116

main90249-06116

9026904028

main90269-04028

9033927001

main90339-27001

9050116073

main90501-16073

91661F0816

main91661-F0816

9324934006

main93249-34006

9331934008

main93319-34008

9351035012

main93510-35012

22 parts on this diagram · 4 diagrams in section
