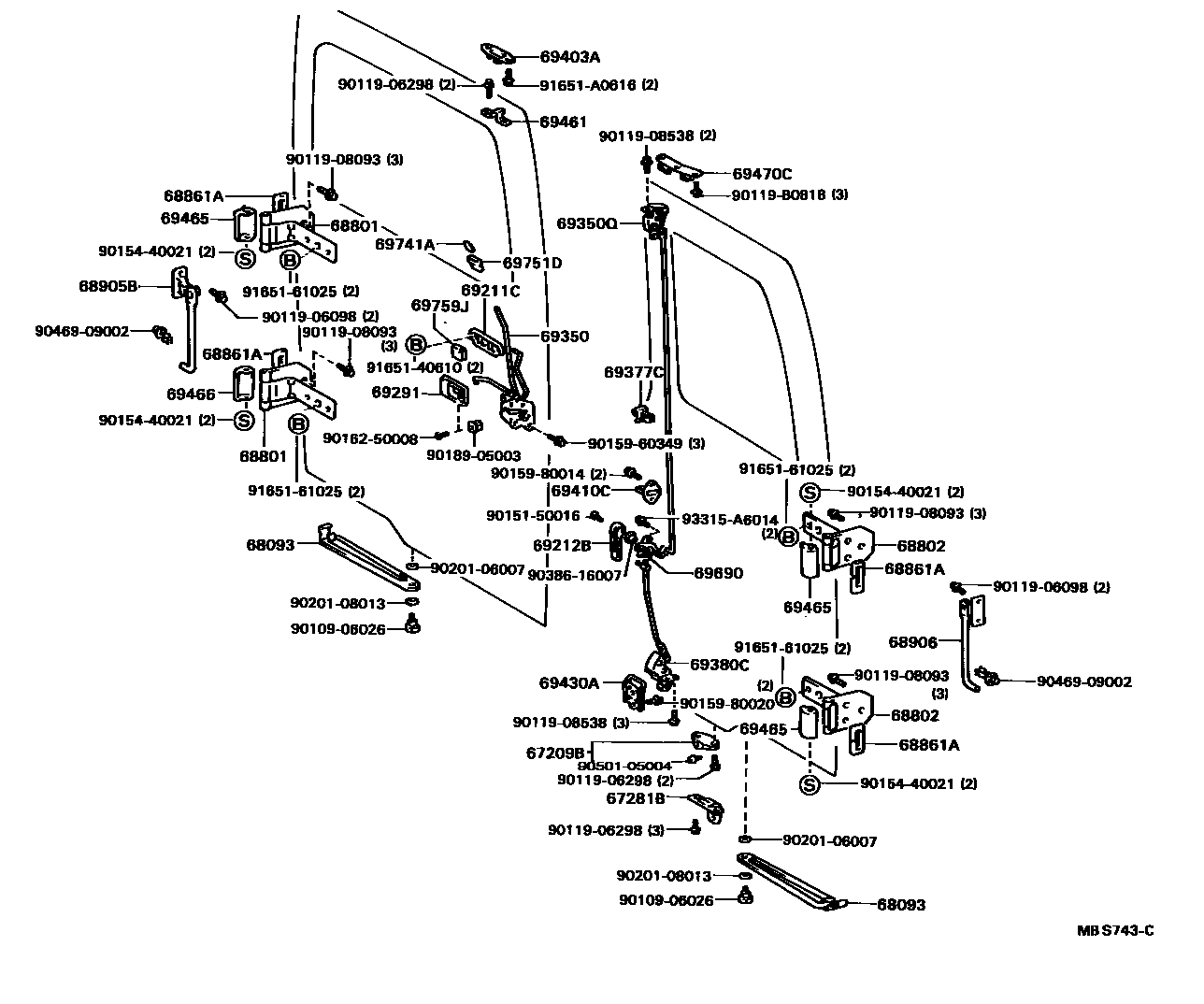

BACK DOOR LOCK & HINGE
67209BSTOPPER SUB-ASSY, BACK DOOR, LOWER
67281BSTOPPER, BACK DOOR, LOWER
68093STAY SUB-ASSY, BACK DOOR, NO.2
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
UPPER
LOWER
68802HINGE SUB-ASSY, BACK DOOR, UPPER LH
68861APAD, BACK DOOR HINGE
sub68861-90K00
68905BSTAY SUB-ASSY, BACK DOOR, RH
68906STAY SUB-ASSY, BACK DOOR, LH
69211CHANDLE, BACK DOOR OUTSIDE
69212BHANDLE, BACK DOOR INSIDE
69291HANDLE ASSY, BACK DOOR INSIDE
69350LOCK ASSY, BACK DOOR
69350QLOCK ASSY, BACK DOOR, UPPER
69377CSNAP, DOOR LOCK CONTROL ROD
69380CLOCK ASSY, BACK DOOR, LOWER
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69430ASTRIKER ASSY, BACK DOOR LOWER LOCK
sub69430-60050
69461STOPPER, BACK DOOR SIDE MALE, RH
69465CUSHION, TAIL GATE LOCK STRIKER, A
69466STOPPER, BACK DOOR FEMALE, LOWER
69470CSTRIKER ASSY, BACK DOOR UPPER LOCK
69690CONTROL ASSY, BACK DOOR REMOTE
69741AKNOB, BACK DOOR LOCK CONTROL
69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)
LIGHT GRAY,TRIM1#
69759JSILENCER, DOOR LOCK LINK
9010906026
main90109-06026
9011906098
main90119-06098
9011906298
main90119-06298
9011908093
main90119-08093
9011908538
main90119-08538
90119B0818
main90119-B0818
9015150016
main90151-50016
9015440021
main90154-40021
9015960349
main90159-60349
9015980014
main90159-80014
9015980020
main90159-80020
9016250008
main90162-50008
9018905003
main90189-05003
9020106007
main90201-06007
9020108013
main90201-08013
9038616007
main90386-16007
9046909002
main90469-09002
9050105004
main90501-05004
9165140610
main91651-40610
9165161025
main91651-61025
91651A0616
main91651-A0616
93315A6014
main93315-A6014
48 parts on this diagram · 1 diagram in section
