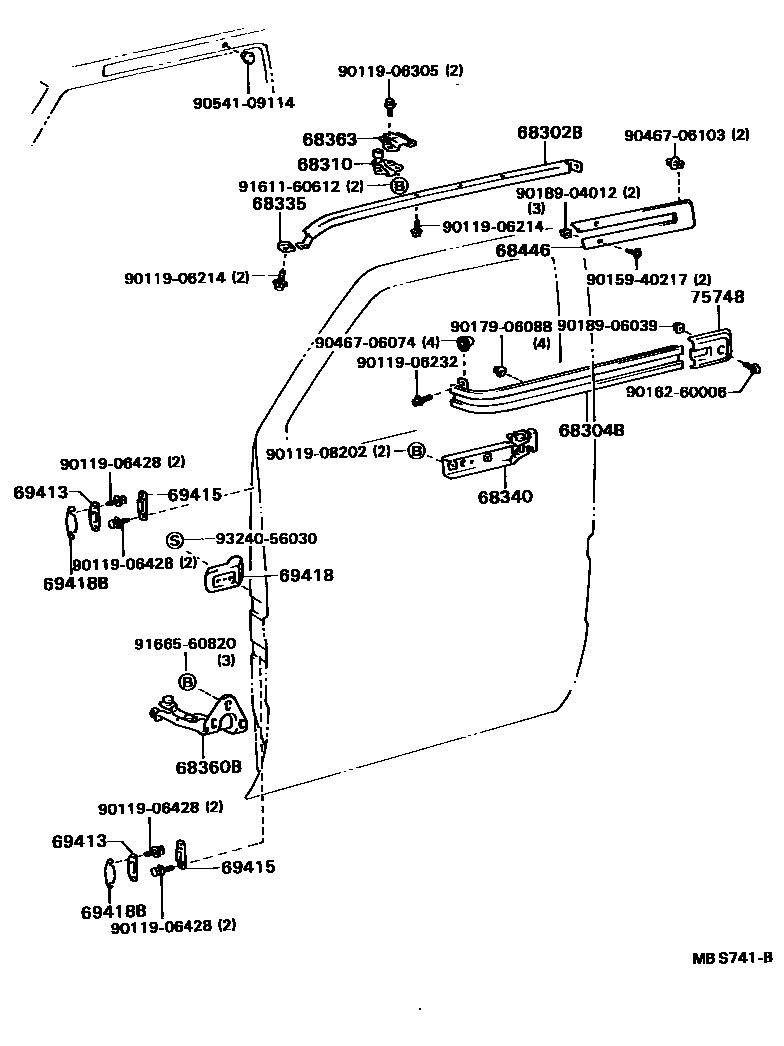

SLIDE ROLLER & RAIL

68302BRAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68302-90P80iCXC10,KXC10198907-199511

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-90P80iCXC10,KXC10198907-199511

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95J02iCXC10,KXC10198907-199511

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iCXC10,KXC10198907-199511

68340ROLLER ASSY, SLIDE, LH

main68340-90P80iCXC10,KXC10198907-199511

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-90P80iCXC10,KXC10198907-199511

68363BRACKET, SLIDE DOOR UPPER ROLLER

main68363-95J00iCXC10,KXC10198907-199511

68446COVER, FRONT SLIDE DOOR RAIL, FRONT

main68446-90P80iCXC10,KXC10198907-199511

69413STOP, SLIDE DOOR DOWN MALE

main69416-95702iCXC10,KXC10198907-199511

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87003iCXC10,KXC10198907-199511

LOWER

main69415-90P80iCXC10,KXC10198907-199511

UPPER

69418STOP, SLIDE DOOR OPEN

main69418-87003iCXC10,KXC10198907-199511

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iCXC10,KXC10198907-199511

75748MOULDING, SLIDE DOOR END, LH

main75748-95J00iCXC10,KXC10198907-199511

9011906214

main90119-06214

9011906232

main90119-06232

9011906305

main90119-06305

9011906428

main90119-06428

9011908202

main90119-08202

9015940217

main90159-40217

9016260006

main90162-60006

9017906088

main90179-06088

9018904012

main90189-04012

9018906039

main90189-06039

9046706074

main90467-06074

9046706103

main90467-06103

9054109114

main90541-09114

9161160612

main91611-60612

9166560820

main91665-60820

9324056030

main93240-56030

29 parts on this diagram · 1 diagram in section
